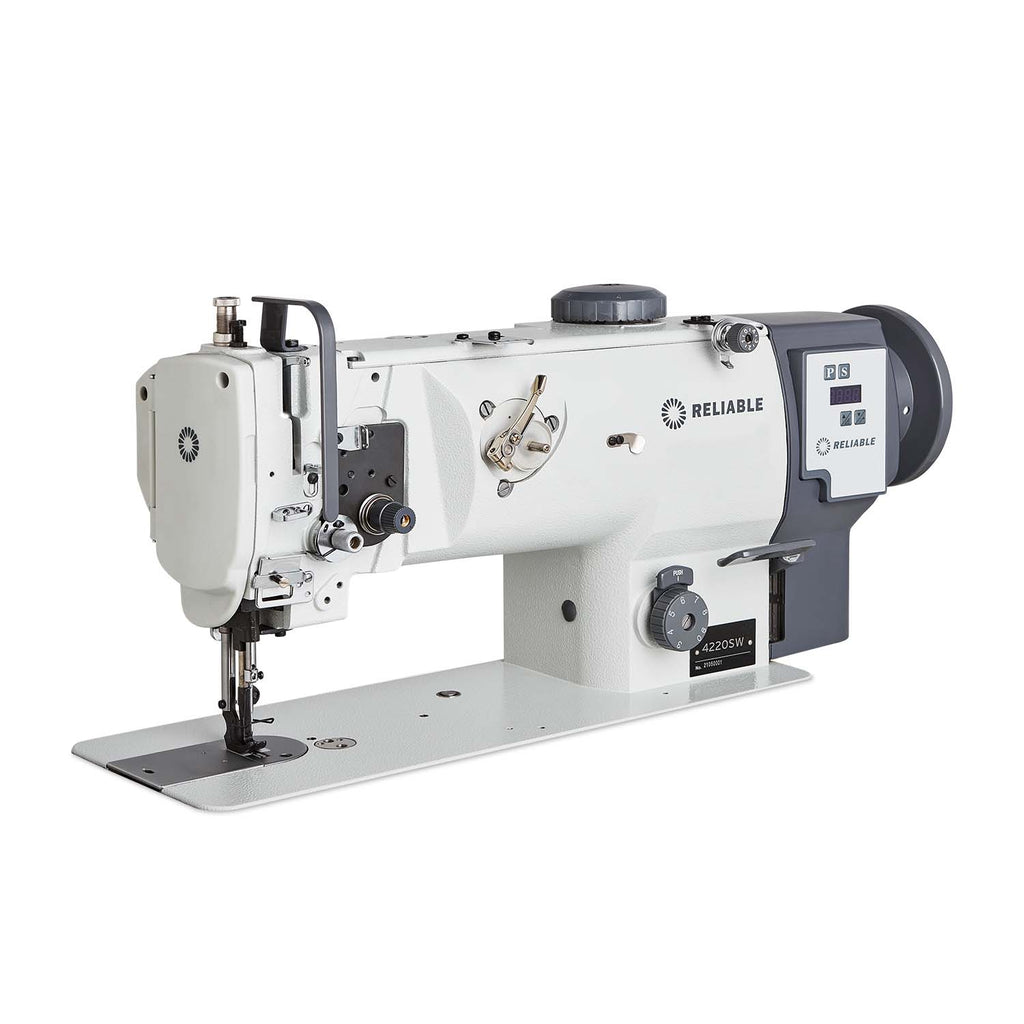

Reliable 4220SW Direct-Drive Walking-Foot Industrial Sewing Machine

SKU: 40261

$2,199.00

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

Direct-drive compound-feed control for demanding production work

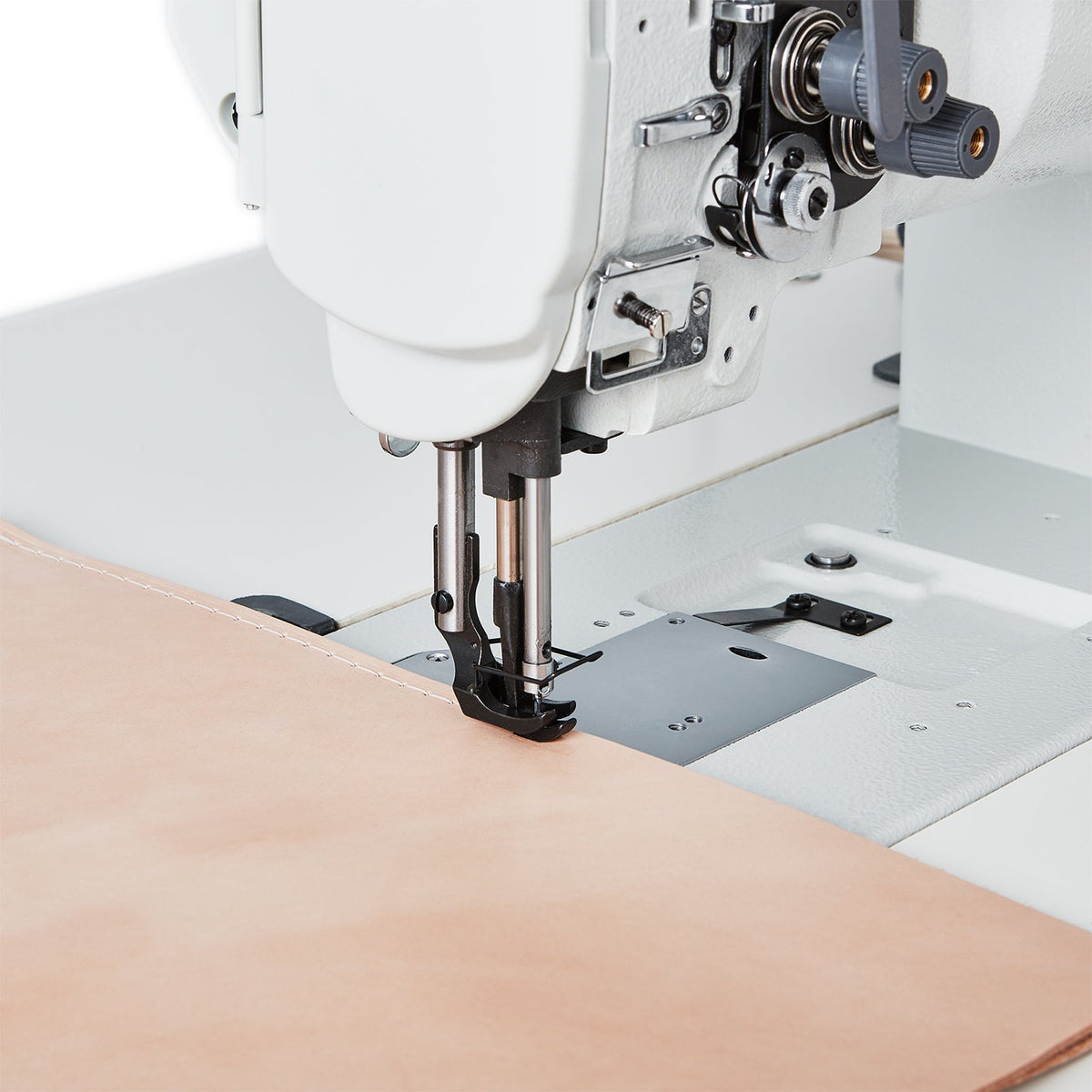

The Reliable 4220SW is a single-needle lockstitch walking-foot machine built for medium- to heavyweight leather, upholstery, canvas and synthetics. Its compound-feed system advances the needle, inside foot and feed dog together to help keep layered or difficult materials aligned.

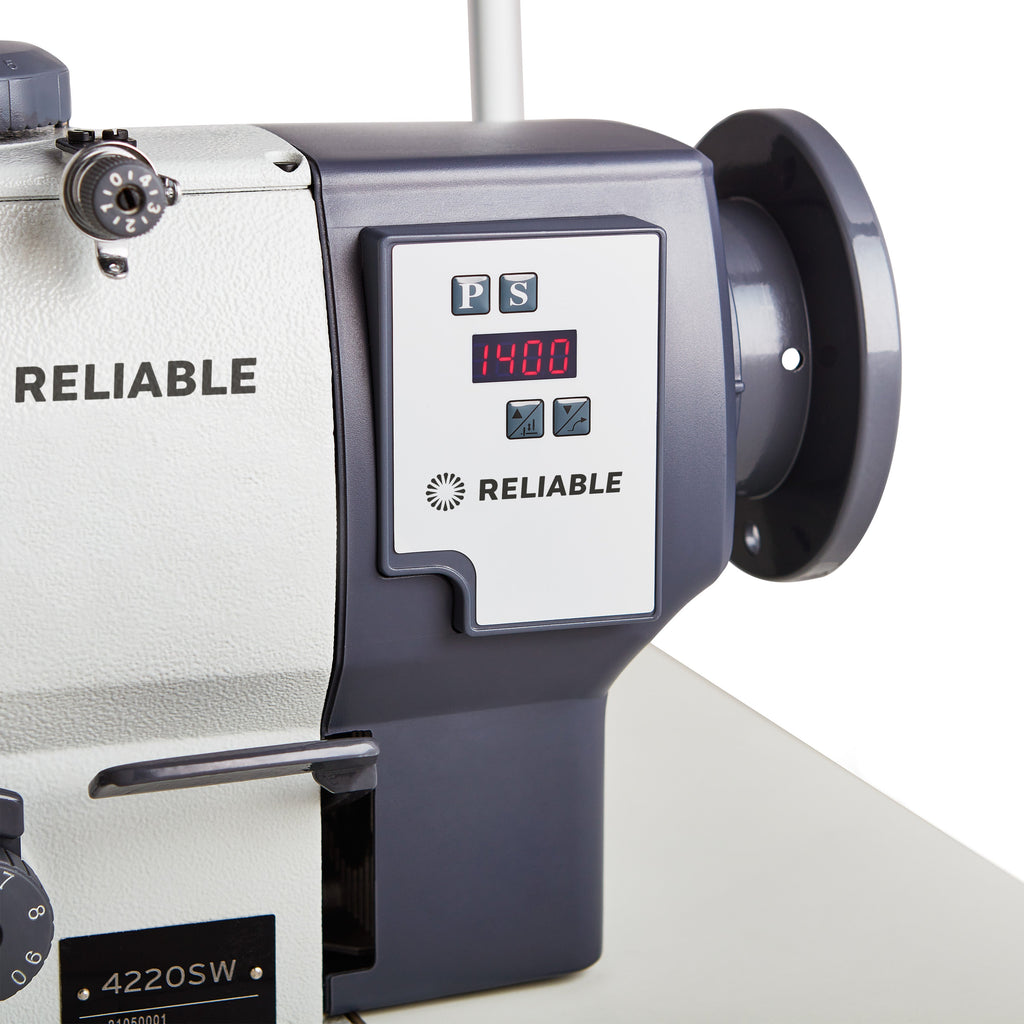

A built-in direct-drive servo motor eliminates the belt between the motor and machine head. Operators gain quieter, smoother response along with digital speed control, programmable needle positioning and index stitching for controlled, repeatable work.

Compound-feed walking-foot mechanism for layered and heavy materials
Direct-drive motor with digital speed control and programmable needle up/down positioning

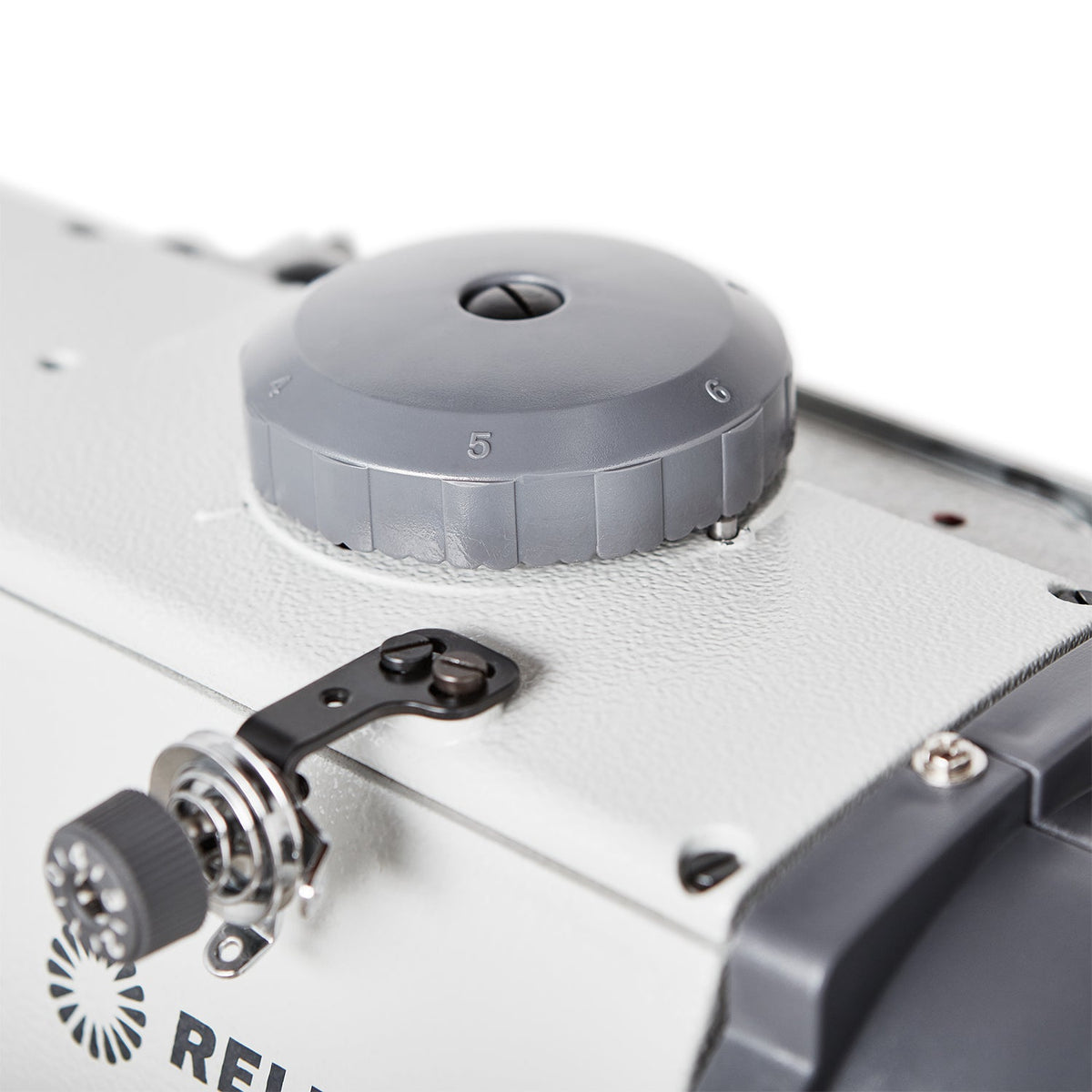

Foot-height adjuster for changing material thickness

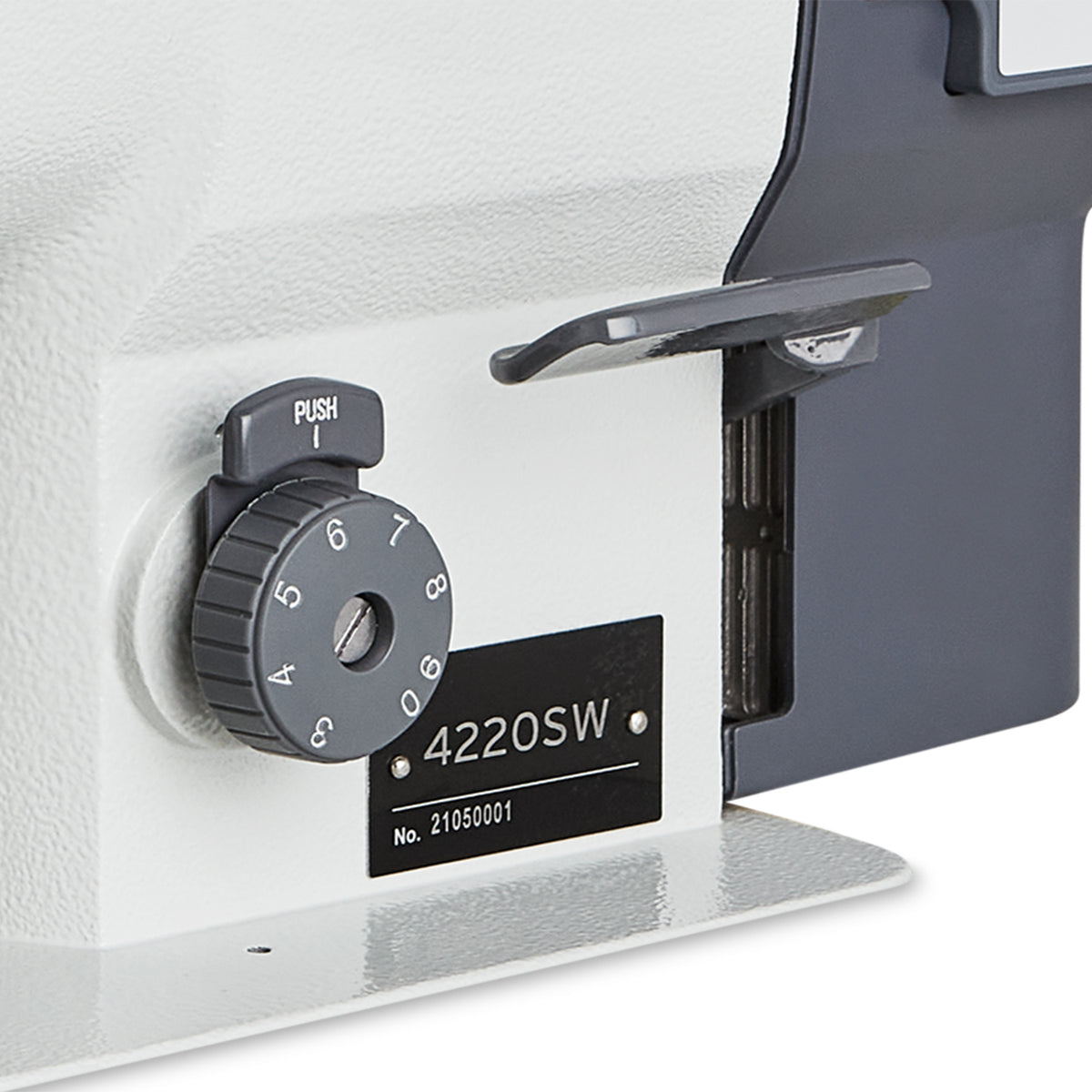

0–9 mm stitch-length adjustment and reverse lever

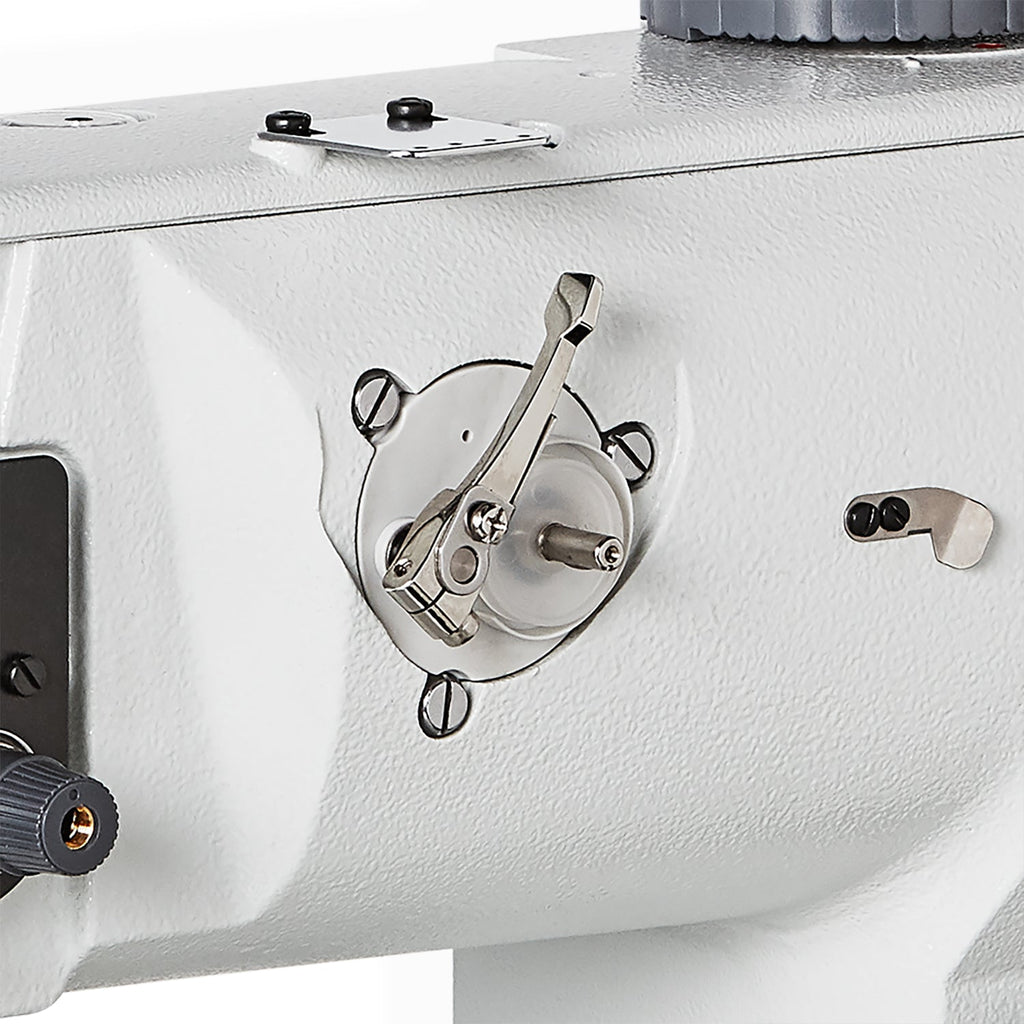

Automatic front-mounted bobbin winder
Safety clutch helps protect the hook and lower drive during a jam
Complete package ships assembled, tested and sewn off with table, stand and UberLight Flex light

Best for

Upholstery shops, leather-goods makers, canvas and marine work, bag production, automotive interiors and other businesses sewing flat assemblies from medium- to heavyweight materials.

Included

Reliable 4220SW machine head with integrated direct-drive motor and controls

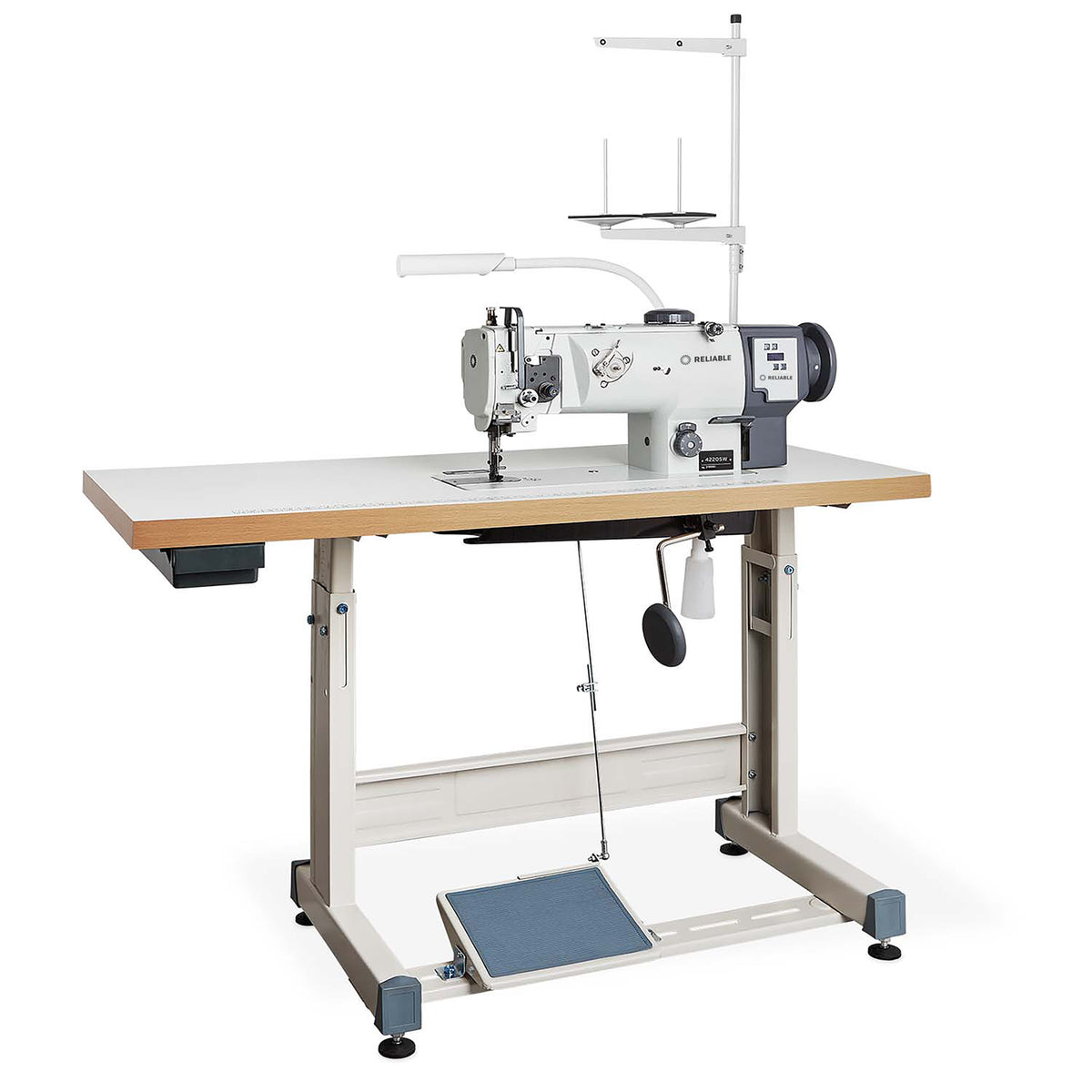

Industrial plywood tabletop and heavy-duty steel stand
UberLight Flex LED sewing light
Automatic bobbin winder
Programmable needle positioner
Roller-edge guide only when the With Roller-Edge Guide configuration is selected
Machine ships fully assembled, tested and sewn off

Verified specifications

Machine type: single-needle lockstitch, flat-bed compound-feed walking foot
Maximum sewing speed: 2,000 RPM
Stitch length: 0–9 mm
Needle bar stroke: 36 mm
Needle system: 135 × 17
Workspace: 10 in / 25.4 cm
Presser-foot lift: 9 mm
Lubrication: semi-automatic
Head dimensions: 25.5 × 7 × 11.5 in / 64.8 × 17.8 × 29.2 cm
Table dimensions: 47.5 × 21.75 × 30 in / 119.63 × 55.25 × 76.2 cm
Pallet dimensions: 48 × 40 × 41.5 in / 121.9 × 101.6 × 105.4 cm

Drop shipped directly from Reliable. A $500 flat-rate LTL freight charge applies; delivery timing and access requirements are confirmed after order.

Key Features

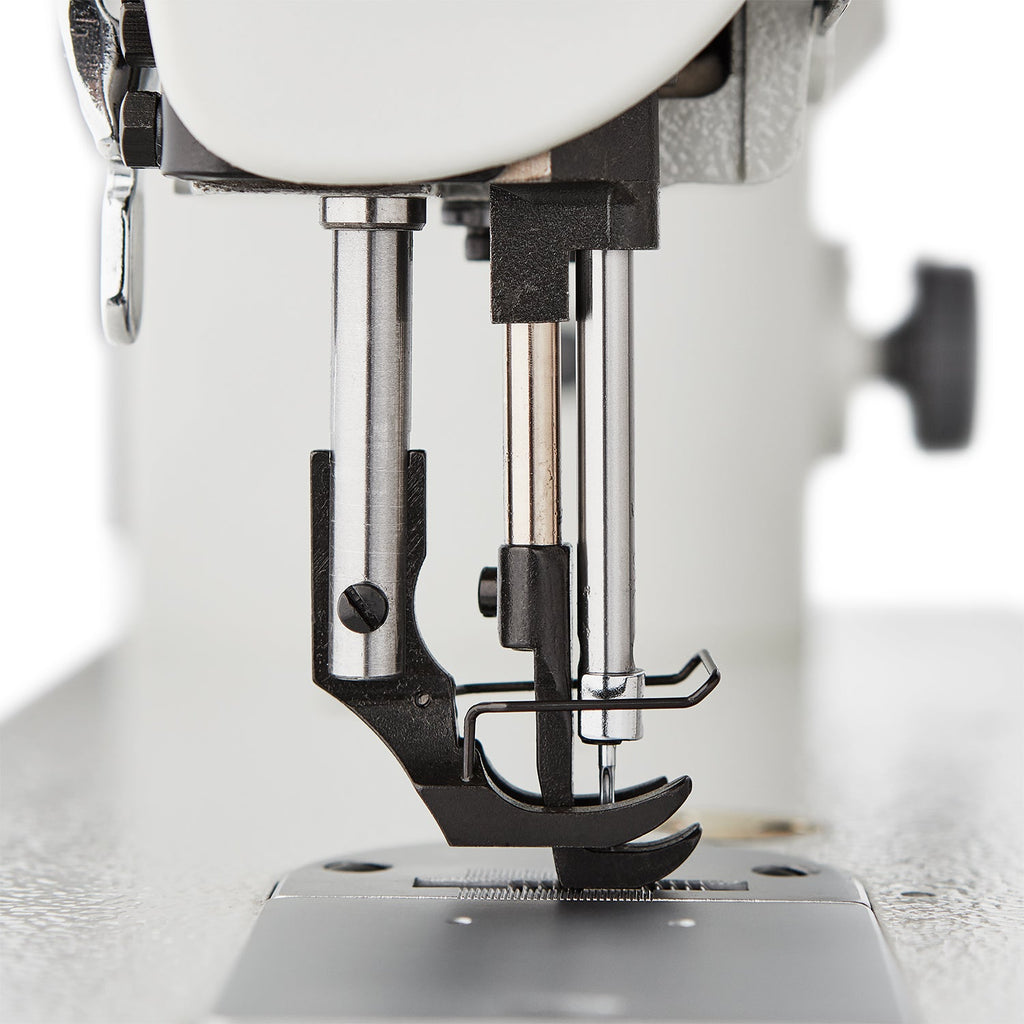

Compound feed: the needle, inside foot and feed dog work together to control layered and difficult materials.

Direct-drive motor eliminates the drive belt and adds digital speed control, index stitching and programmable needle up/down positioning.

Foot-height adjuster helps accommodate changes in material thickness.

0–9 mm stitch-length adjustment with reverse lever for backtacking.

Automatic front-mounted bobbin winder and a safety clutch that disengages during a jam.

Complete assembled package includes table, heavy-duty stand and UberLight Flex sewing light.

Warranty

Covered by Reliable Corporation’s standard limited warranty. Warranty coverage, exclusions and claim procedures are governed by the linked manufacturer warranty document.

Additional Information

Ships by LTL freight for a flat $500 charge. Expedited shipping is unavailable.

Reliable fulfills this complete industrial package for Sew Nation USA. The machine ships assembled, tested and sewn off.

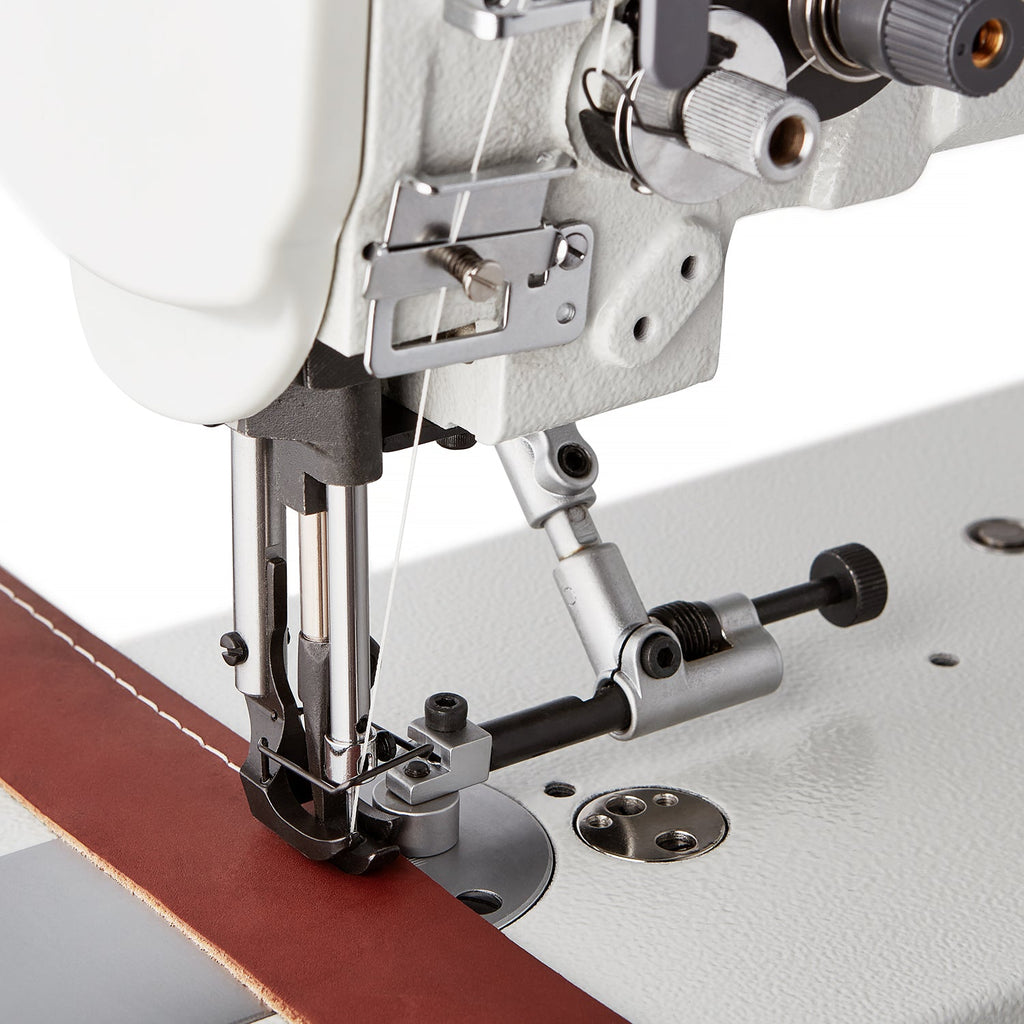

Choose the roller-edge-guide configuration when a mechanical seam guide will improve repeatability on long, straight seams.

Included Accessories

Reliable 4220SW machine head with integrated direct-drive motor and controls

Industrial plywood tabletop and heavy-duty steel stand

UberLight Flex LED sewing light

Automatic bobbin winder

Programmable needle positioner

Roller-edge guide only when the With Roller-Edge Guide configuration is selected

Machine ships fully assembled, tested and sewn off

Specifications

Machine type: single-needle lockstitch, flat-bed compound-feed walking foot

Maximum sewing speed: 2,000 RPM

Stitch length: 0–9 mm

Needle bar stroke: 36 mm

Needle system: 135 × 17

Workspace: 10 in / 25.4 cm

Presser-foot lift: 9 mm

Lubrication: semi-automatic

Head dimensions: 25.5 × 7 × 11.5 in / 64.8 × 17.8 × 29.2 cm

Table dimensions: 47.5 × 21.75 × 30 in / 119.63 × 55.25 × 76.2 cm

Pallet dimensions: 48 × 40 × 41.5 in / 121.9 × 101.6 × 105.4 cm
