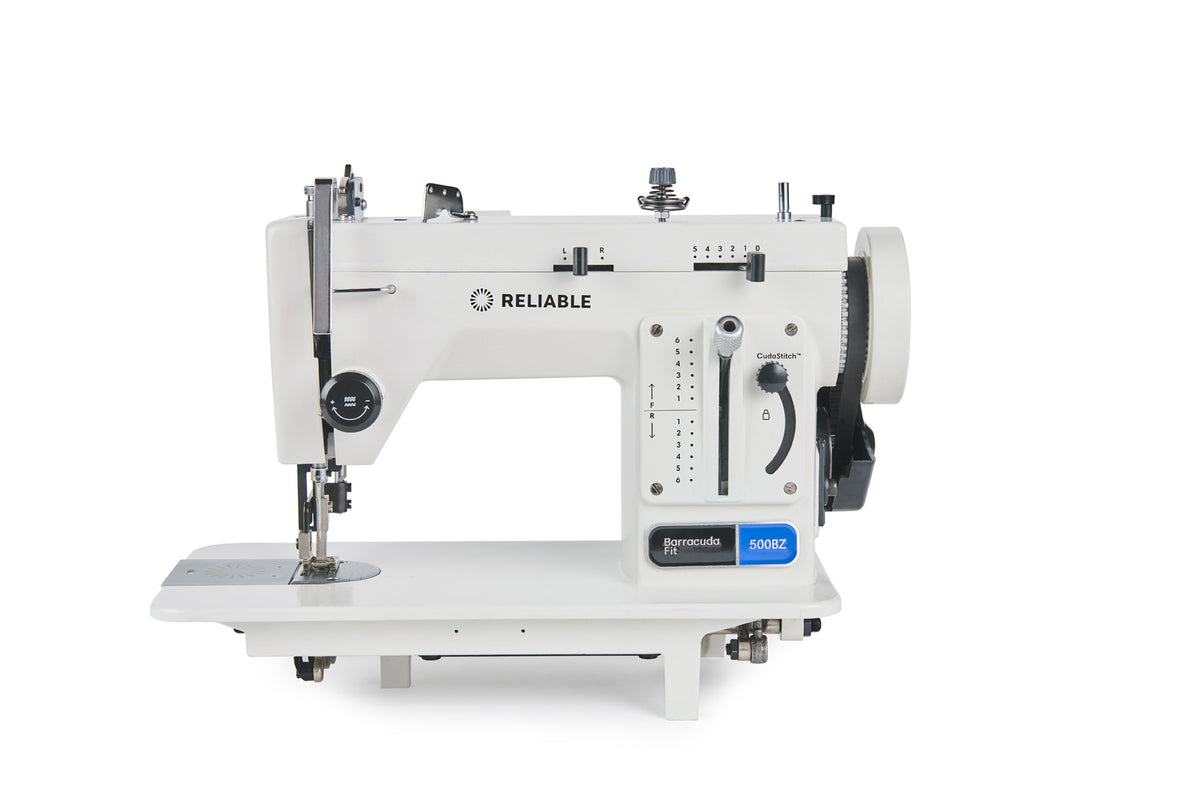

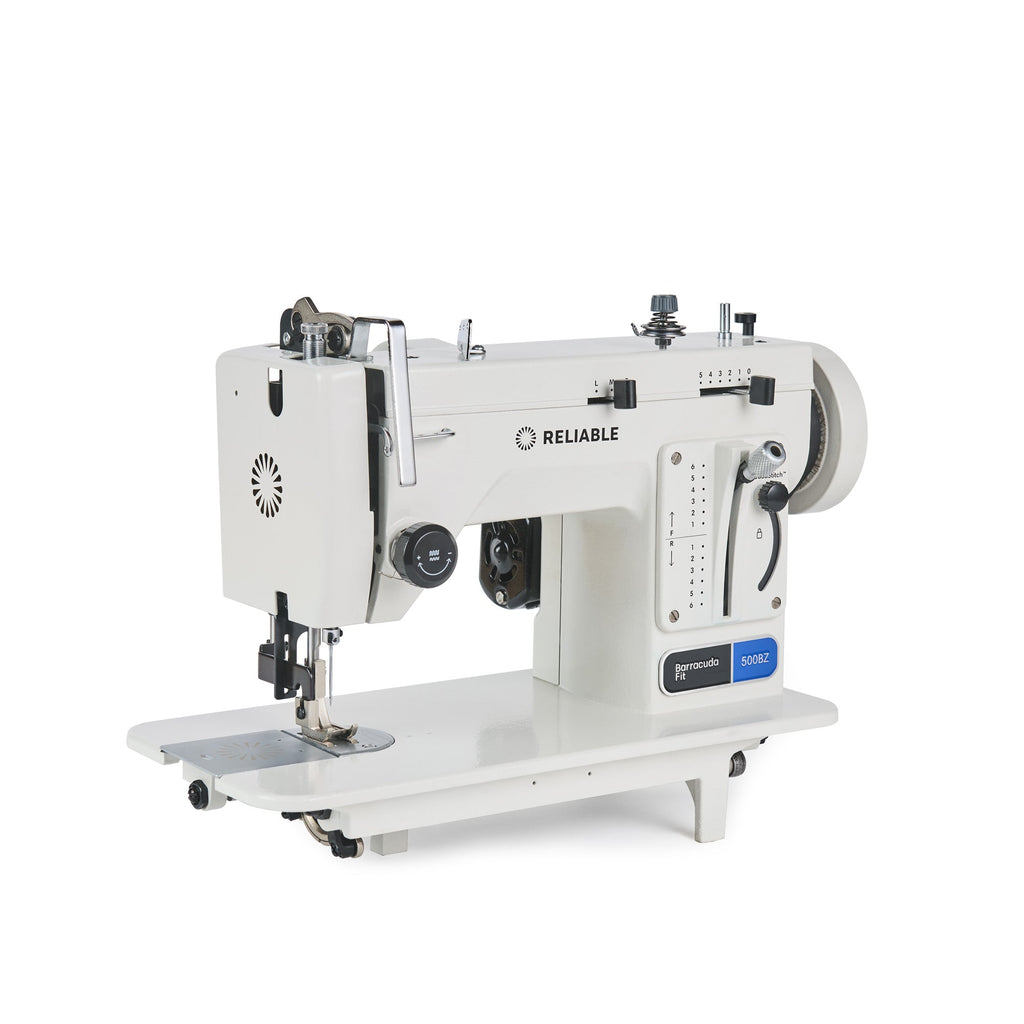

Reliable Barracuda Fit 500BZ/550BZ Portable Zigzag Walking-Foot Sewing Machine

A portable, all-metal walking-foot machine with straight and zigzag capability for sailmaking, marine canvas, upholstery, leather repairs and outdoor-gear work.

Who it’s for

Makers who need the layer control of a walking foot plus zigzag for sailcloth, webbing, stretch-demanding seams, appliqué, binding and reinforcement work.

Why it stands out

• Straight stitches up to 6 mm and zigzag width up to 5 mm.

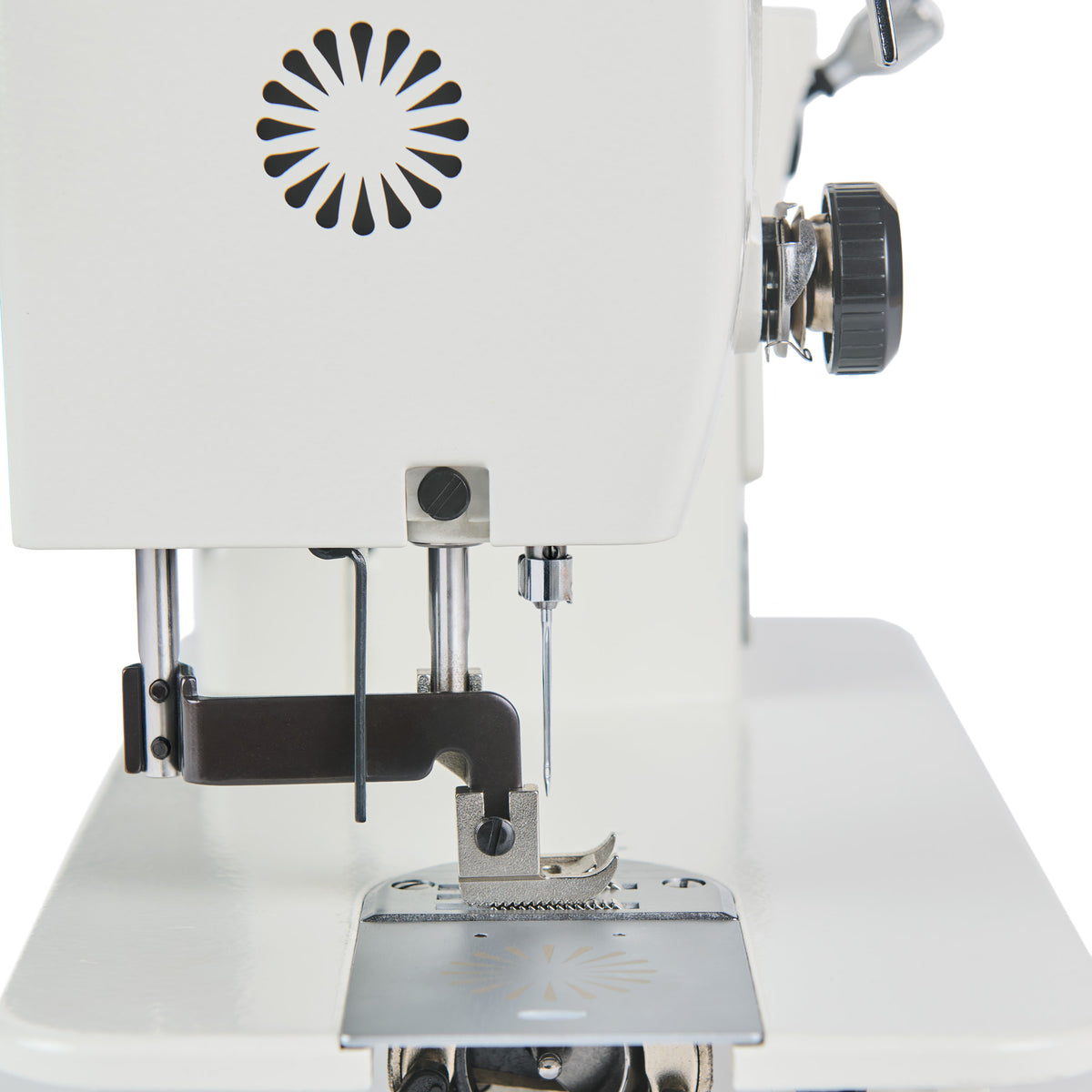

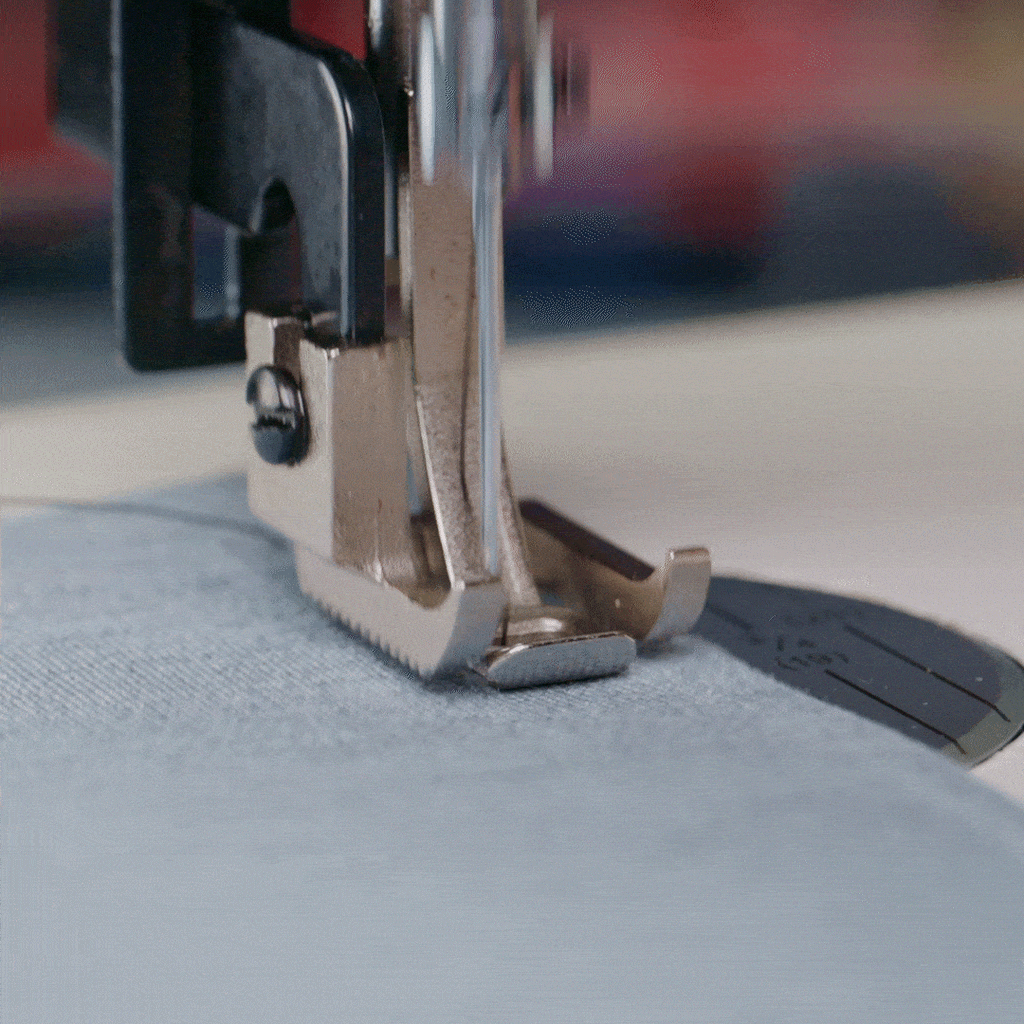

• Walking-foot feeding keeps stacked and difficult materials moving evenly.

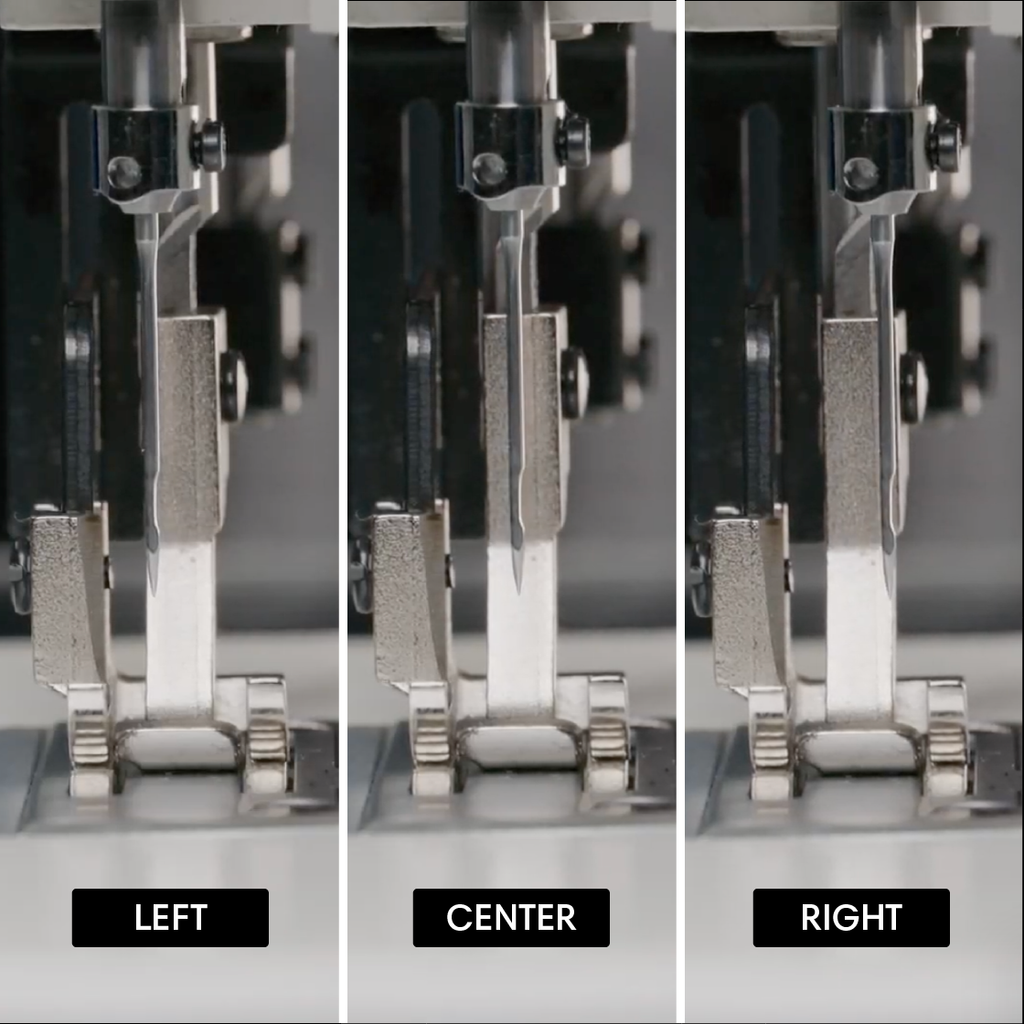

• Left, center and right needle positioning.

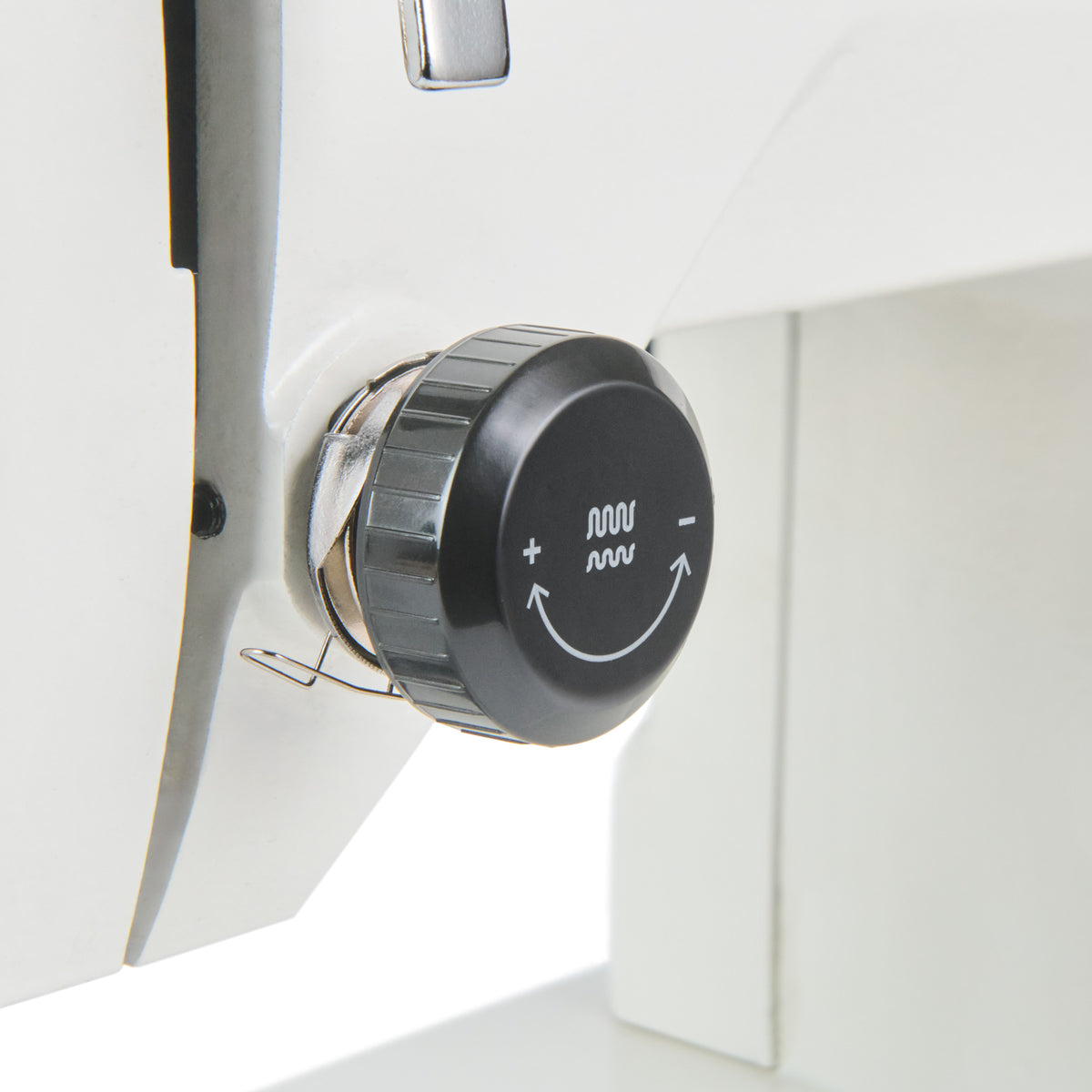

• CudaStitch™ reverse matches the selected forward stitch length for cleaner backtacking.

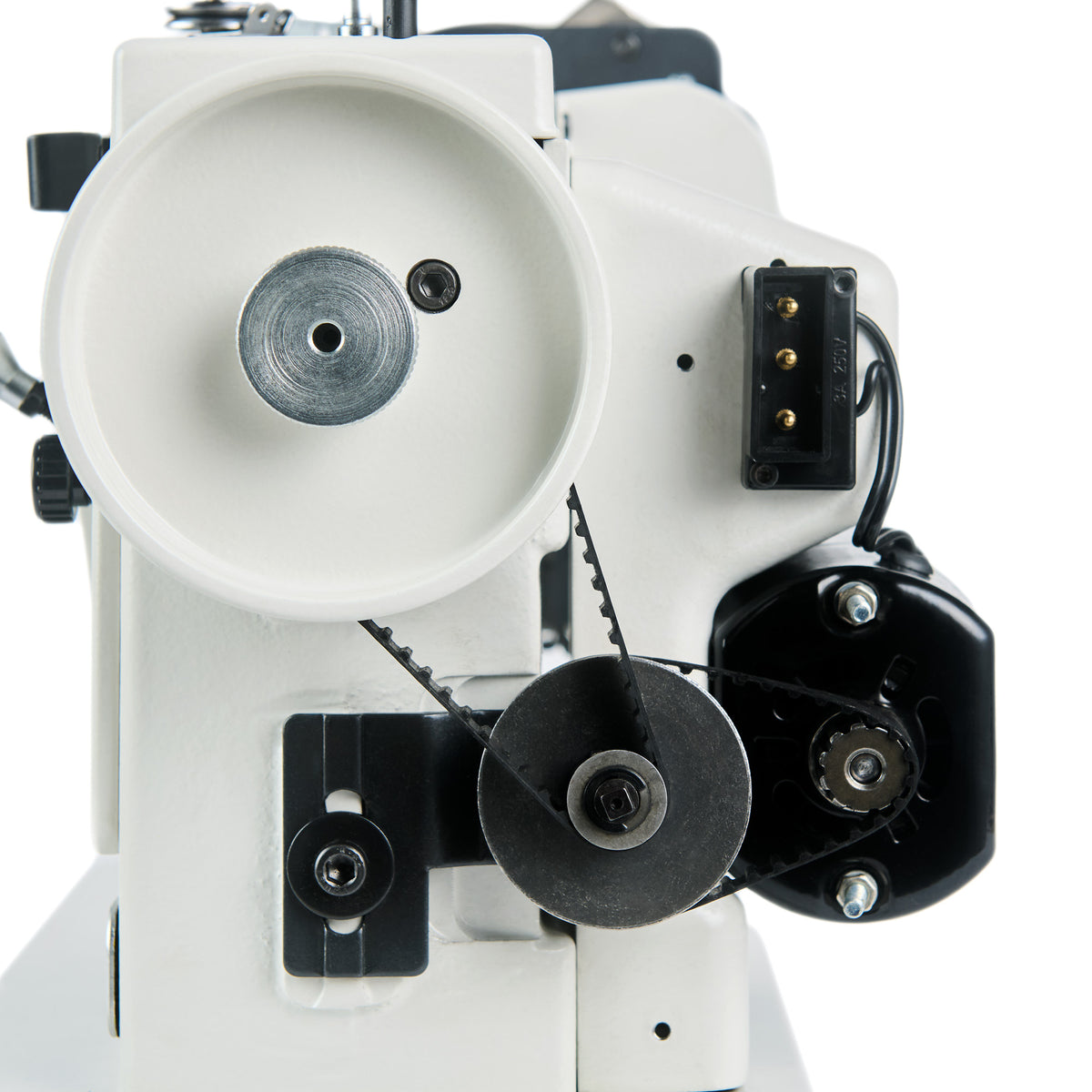

• Built-in speed reducer and all-metal construction.

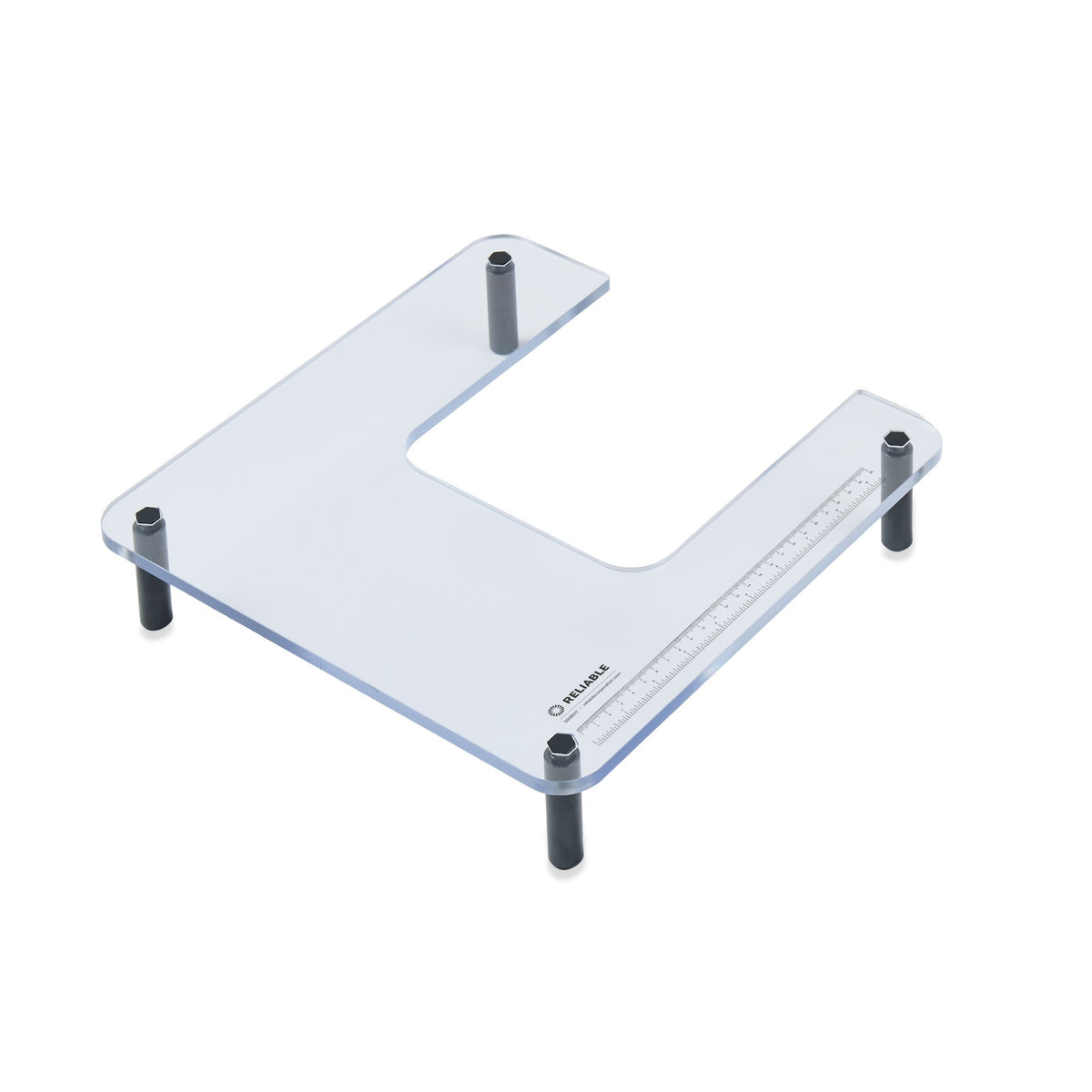

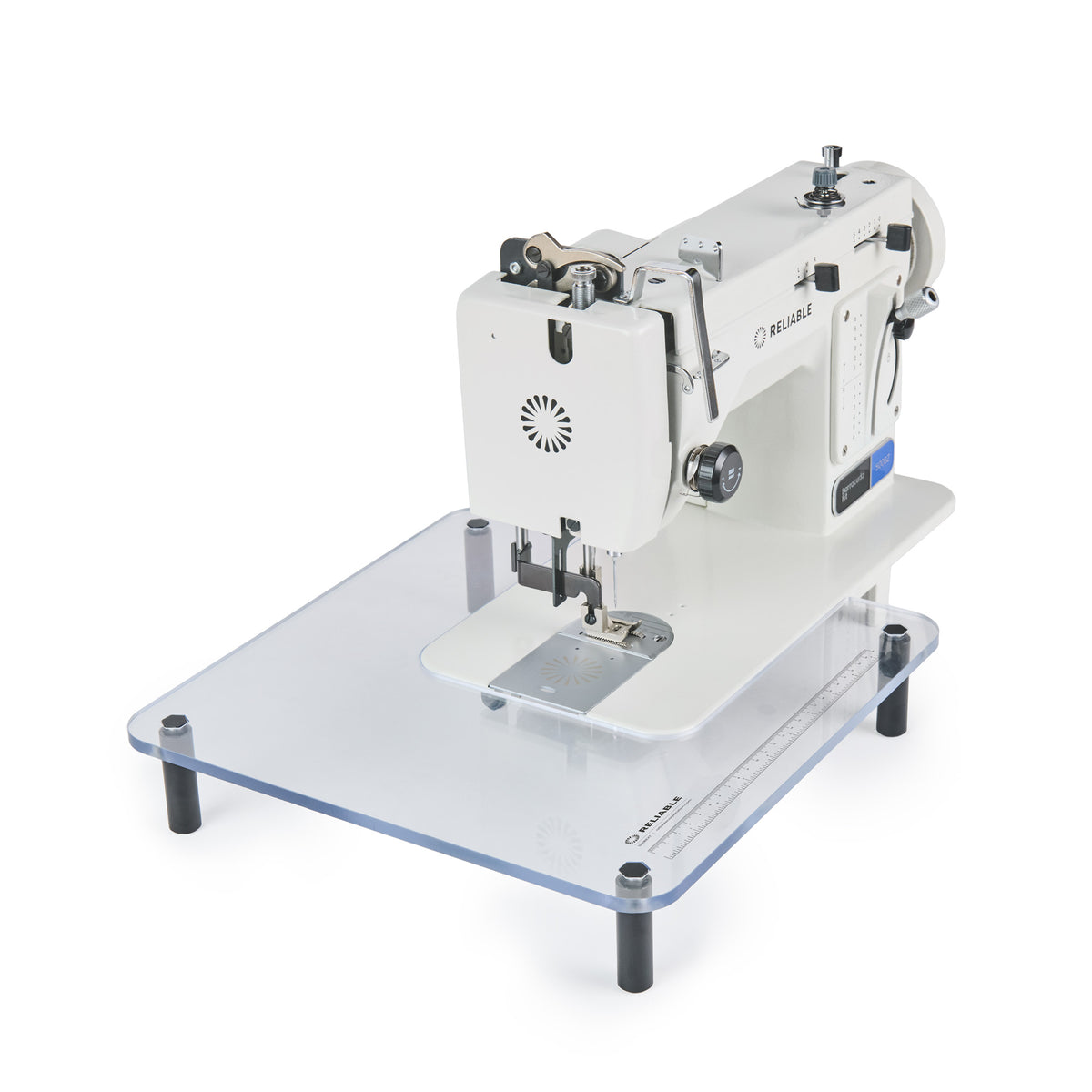

• 340 × 340 mm clear extension table with ruler.

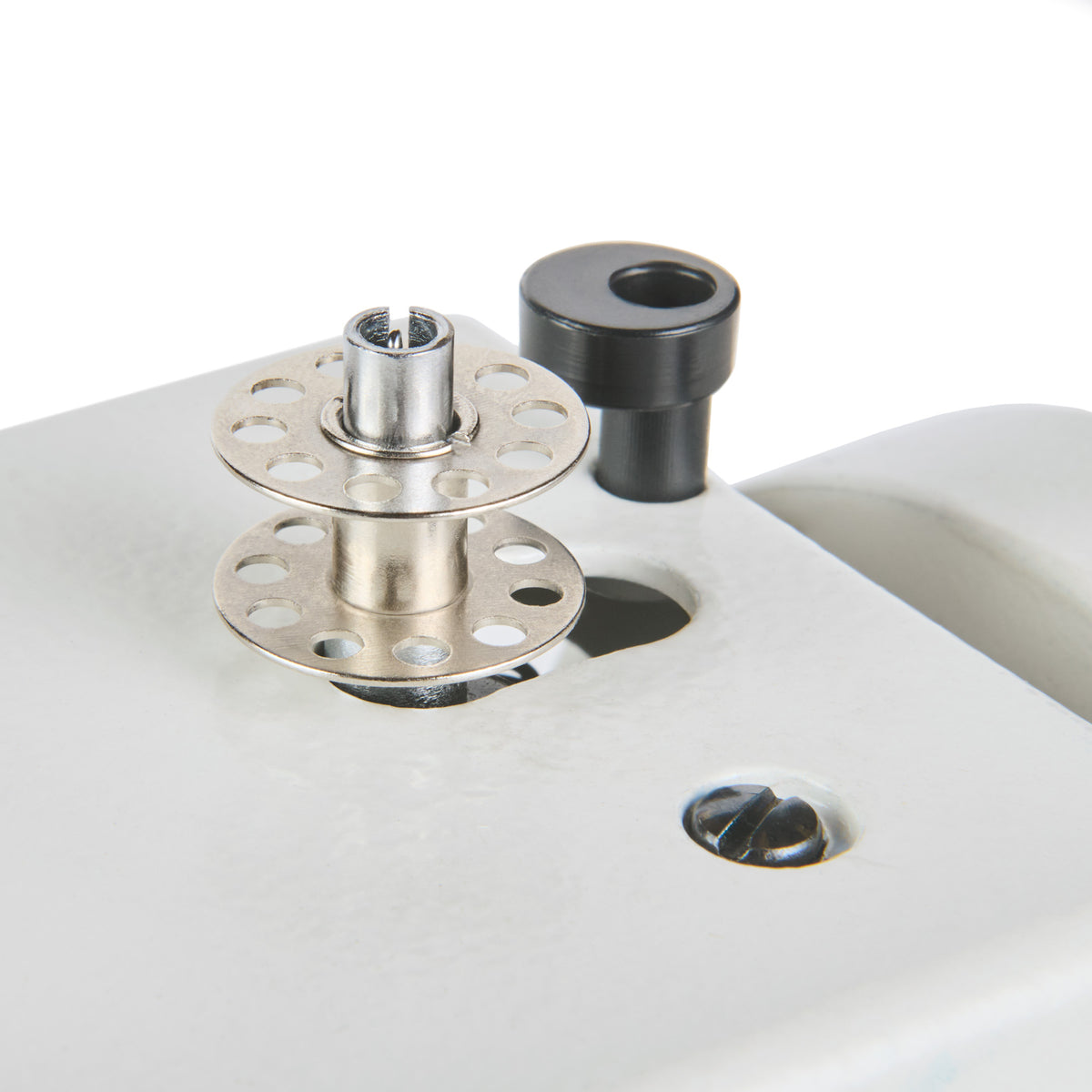

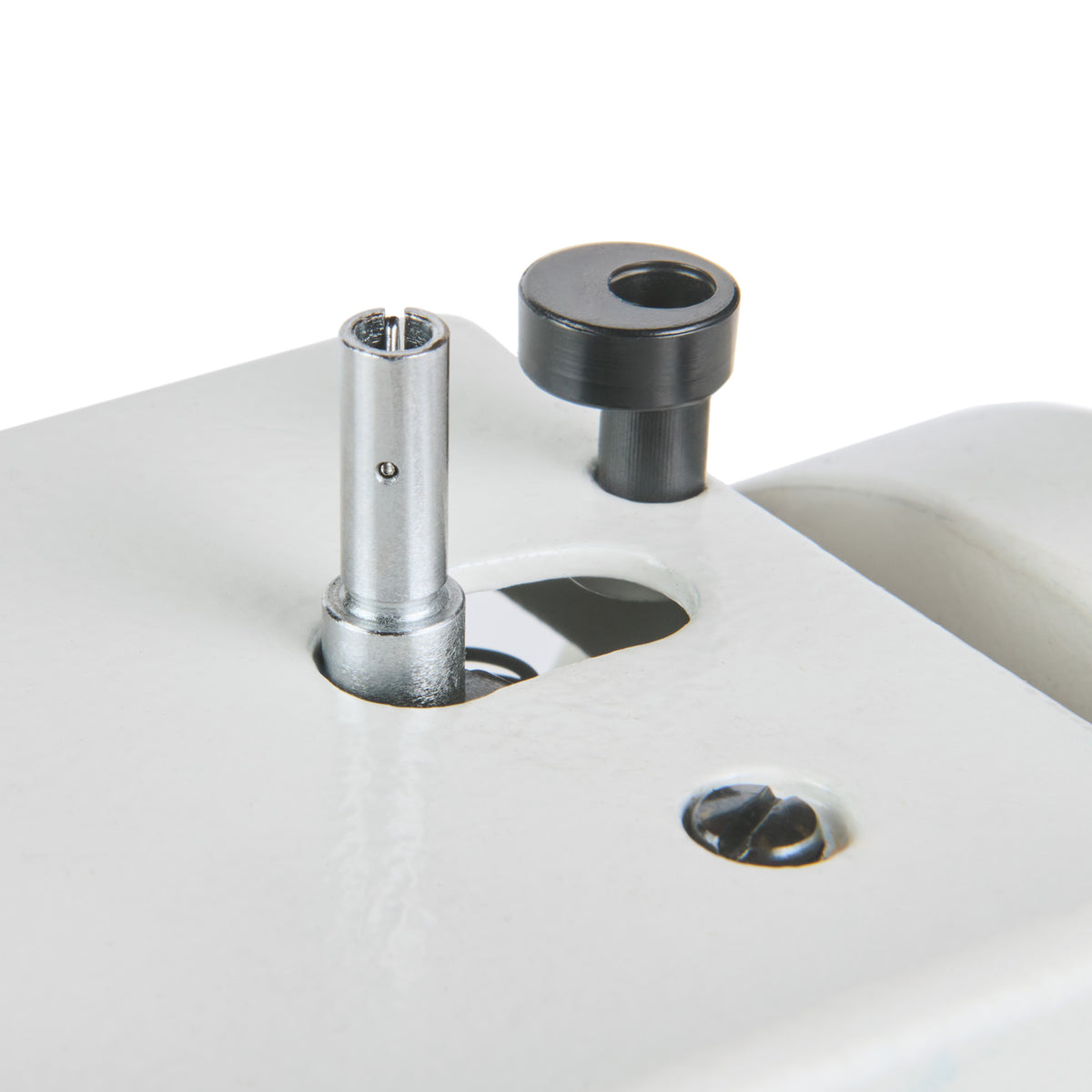

• Built-in bobbin winder, dual thread stand and two rechargeable CudaLights.
• 10 mm presser-foot clearance.

Specifications

• Maximum speed: 800 RPM
• Stitch length: up to 6 mm
• Zigzag width: up to 5 mm
• Needle system: 135×17, sizes 14–22
• Recommended thread range: size 45 (Tex 46) to 90 (Tex 92)
• Workspace: 7 in / 17.8 cm
• Head dimensions: 16 × 8 × 11.7 in
• Shipping-box dimensions: 18.5 × 10.8 × 17.7 in
• Weight: 34.4 lb
• Electrical: choose 120V (500BZ) or 220V (550BZ)

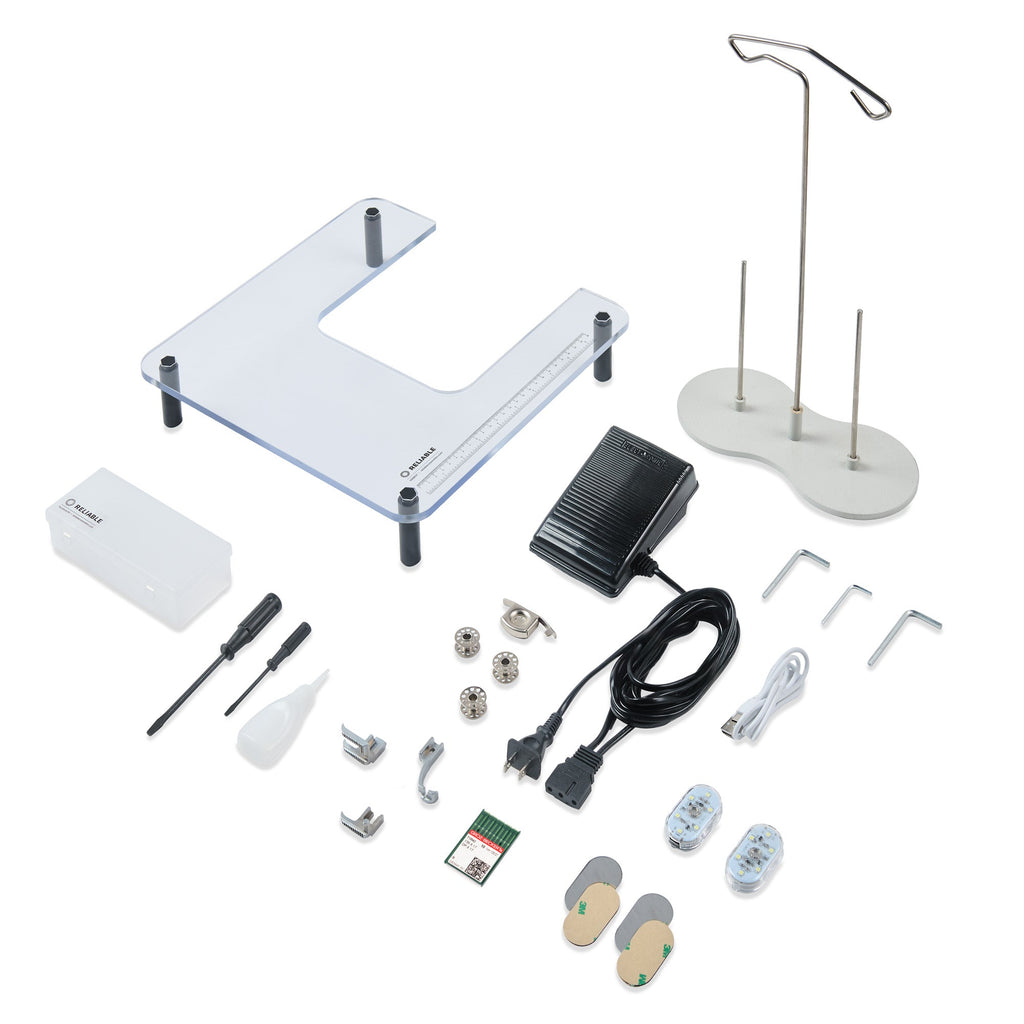

Included

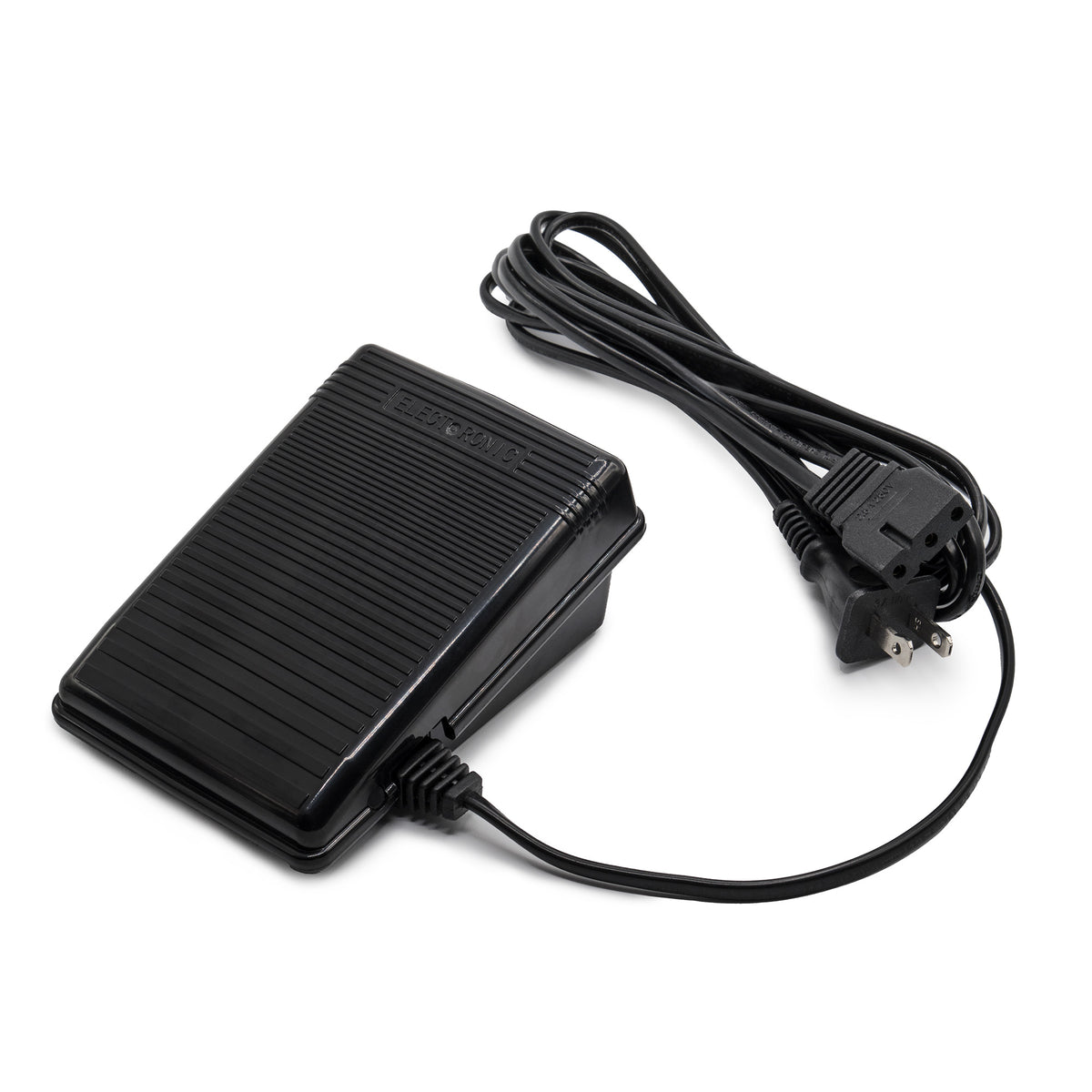

• Foot pedal and 340 × 340 mm extension table
• Zipper foot, needles, three bobbins and magnetic seam guide

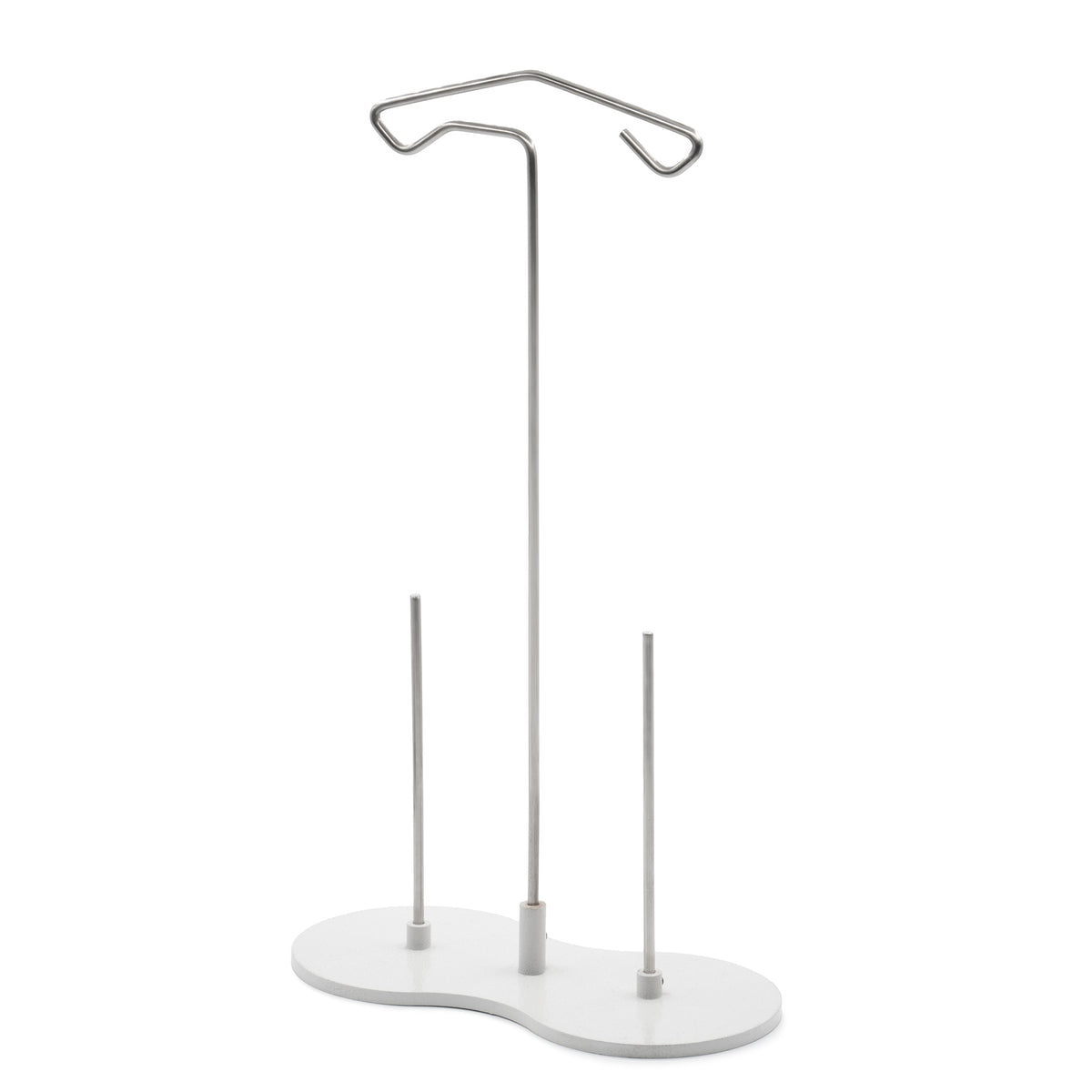

• Dual thread stand

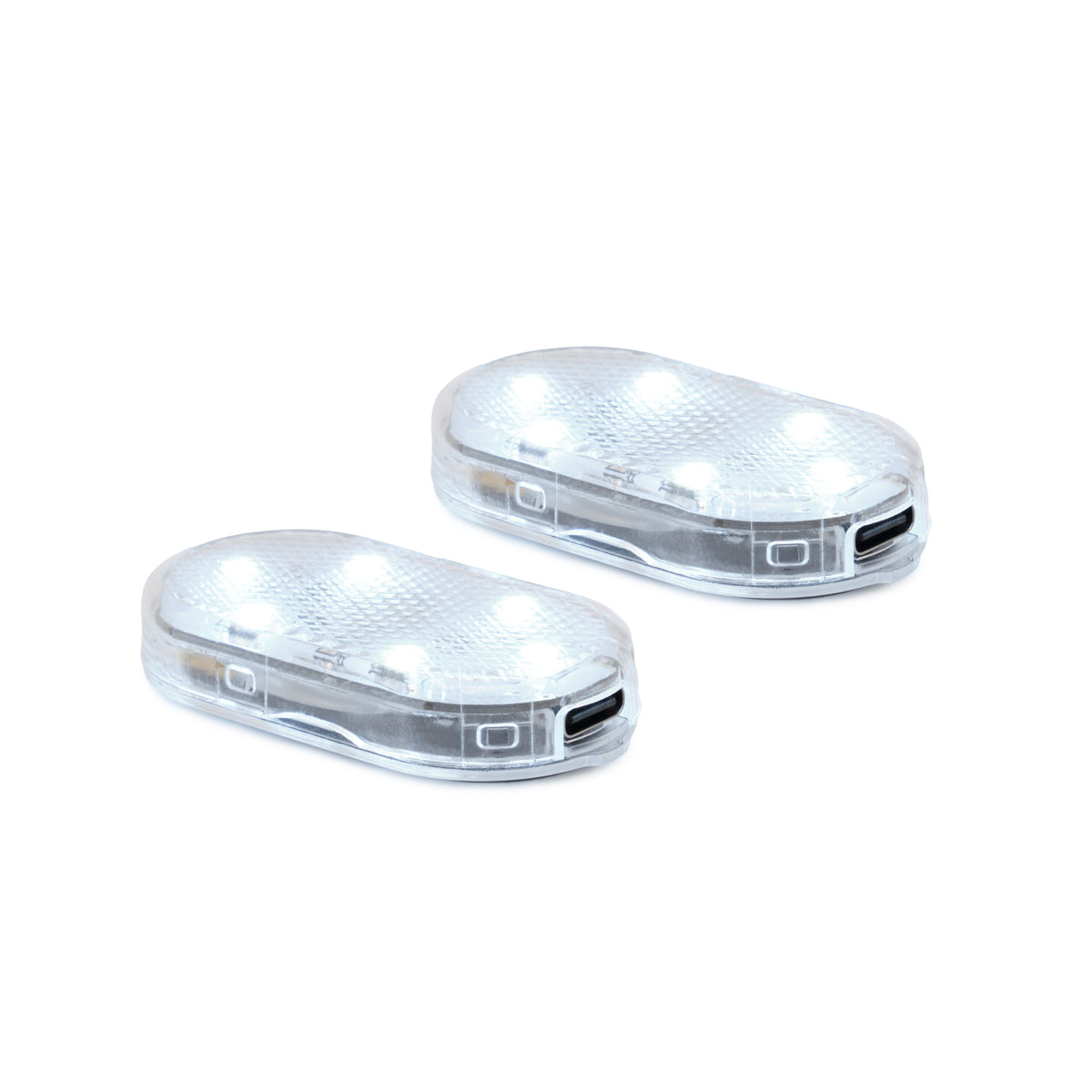

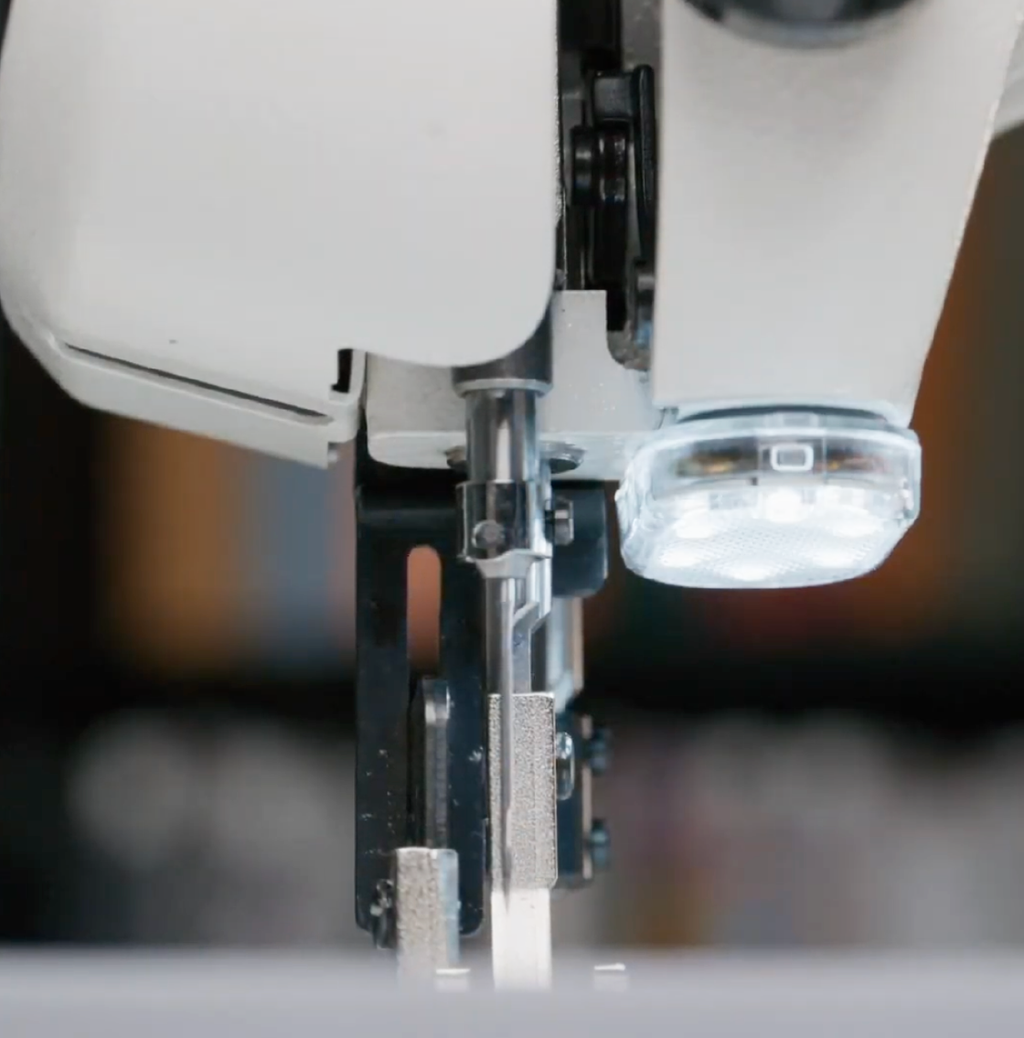

• Two rechargeable CudaLight LED lights
• Knurled feed dog, oil bottle, screwdrivers and Allen keys
• Accessory case

Warranty

Backed by Reliable’s limited three-year Barracuda warranty. Select the correct voltage before ordering—220V models require a compatible 220V supply.

Support Documents

• Instruction Manual
• Quick Guide
• Parts Book

Best for

Production shops and makers who need controlled zig-zag stitching for appliqué, reinforcement, canvas, sail, apparel, or other compatible materials.

Drop shipped directly from Reliable. Availability and fulfillment timing are confirmed after order.
