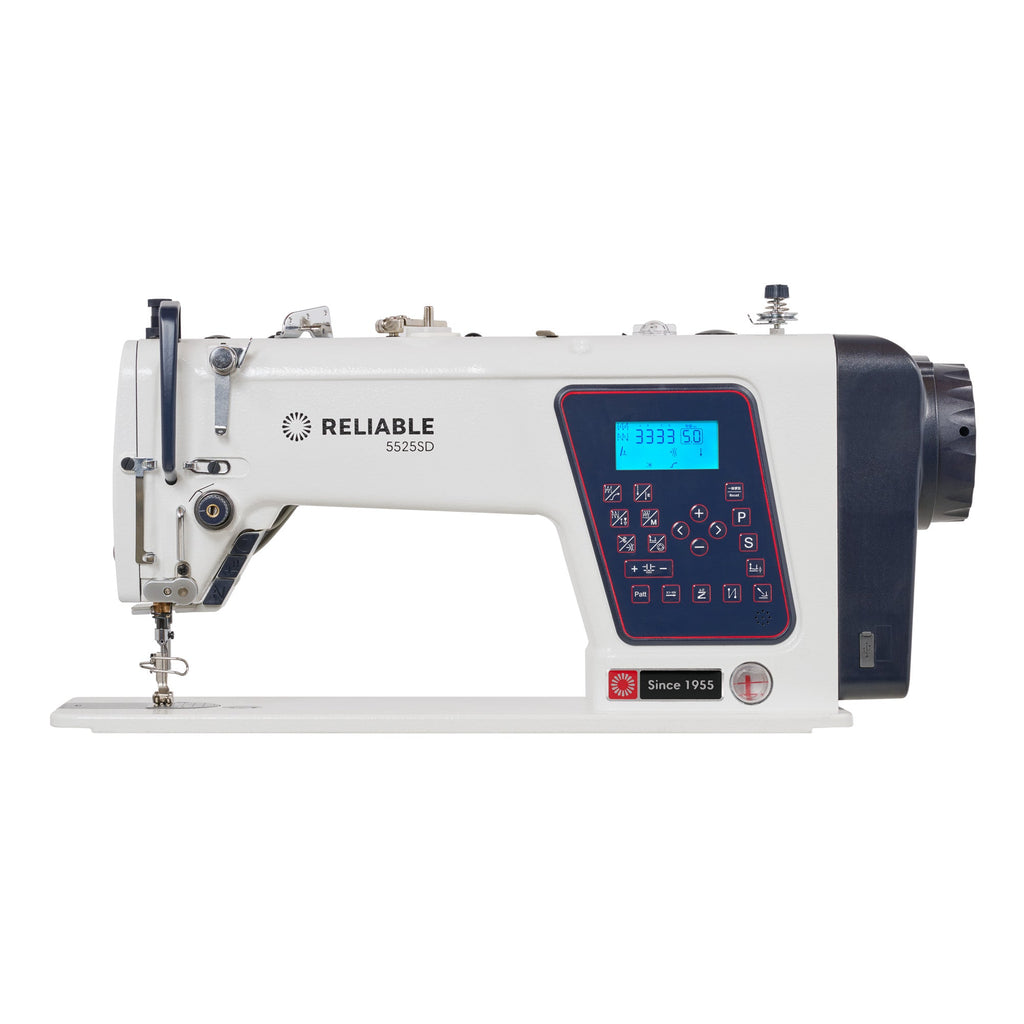

Reliable 5525SD Dual Direct-Drive Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer
Standard 21.5 x 47 in. Table
$1,699.00
Skip to product information
Reliable 5525SD Dual Direct-Drive Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer
Reliable 5525SD Dual Direct-Drive Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer
SKU: 41203
$1,699.00
Returns & Eligibility
This item is not eligible for return. Please see our return policy.
Buying a Product? Talk to Someone Who Knows Them.
I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.
Description

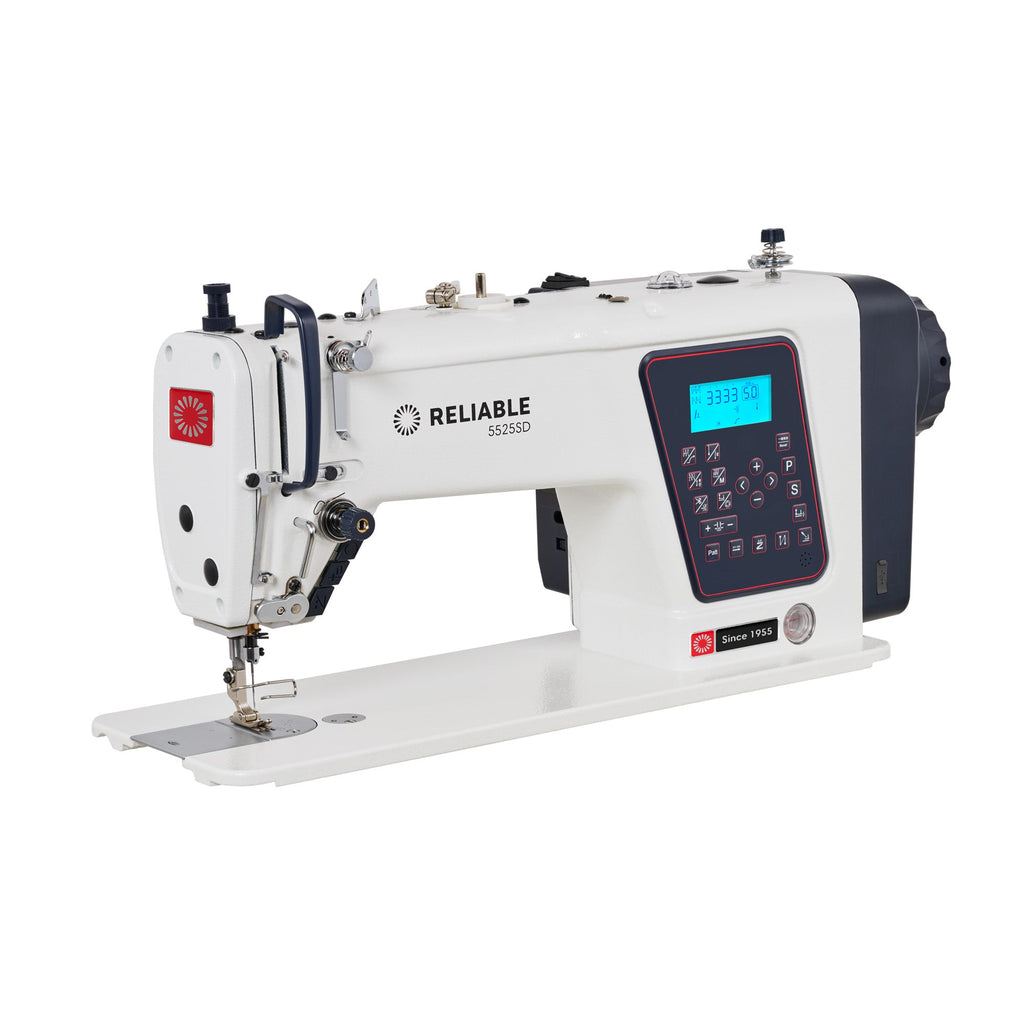

Production-focused lockstitch sewing with automatic finishing built in. The Reliable 5525SD pairs a high-speed single-needle drop-feed head with Dual Direct Drive technology, an automatic thread trimmer, automatic backtacking, programmable controls, needle positioning and automatic foot lift. It is designed to reduce handling time and deliver consistent results on light- to medium-weight materials.
Who It’s For
- Apparel shops, alteration departments, drapery workrooms and production makers who repeat straight-stitch operations throughout the day
- Operators who need automatic thread trimming, backtacking and foot lift to shorten each sewing cycle
- Teams that want programmable speed and stitch controls with a beltless direct-drive system
Why It Stands Out

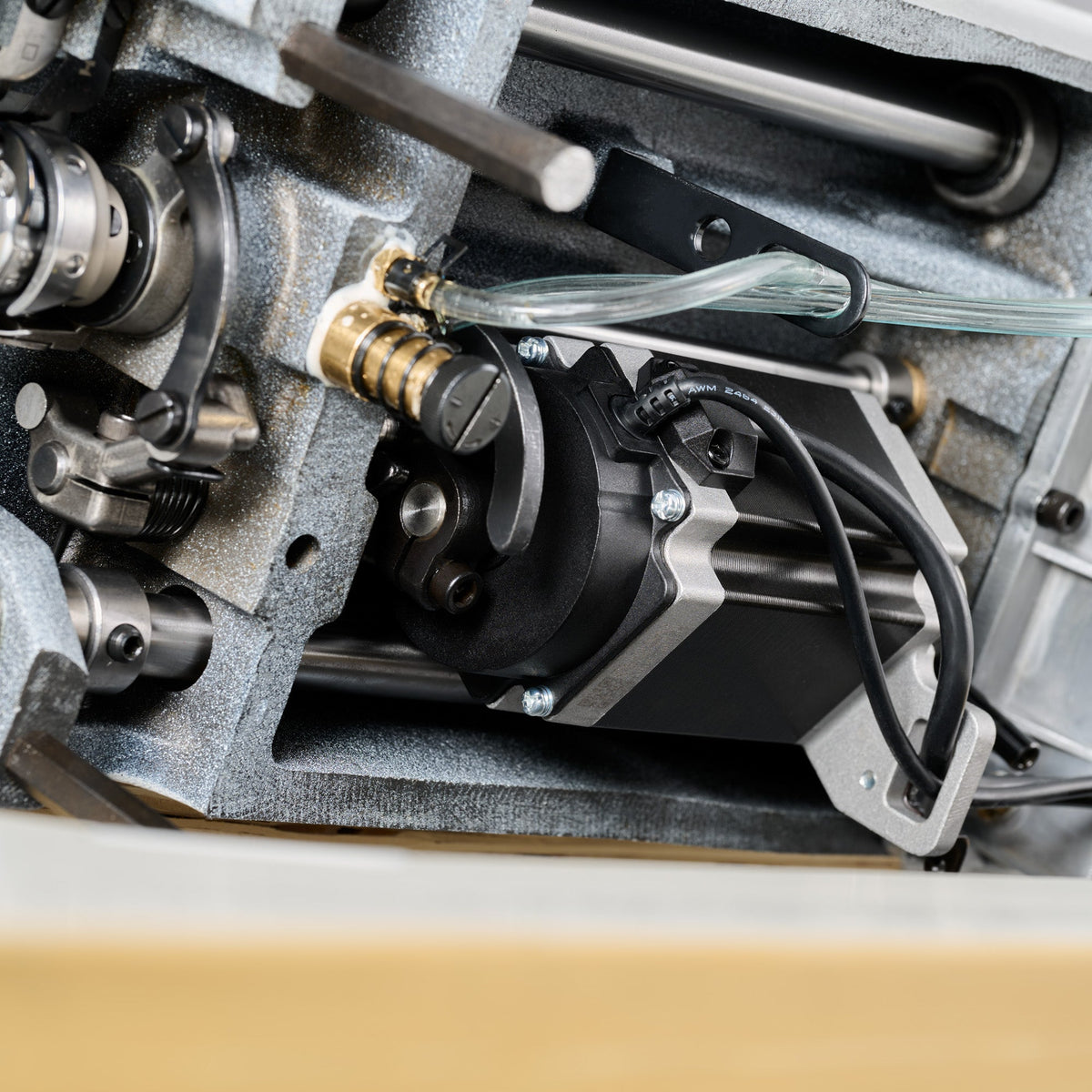

- Automatic thread trimming: cuts thread at the end of the cycle to reduce manual finishing.

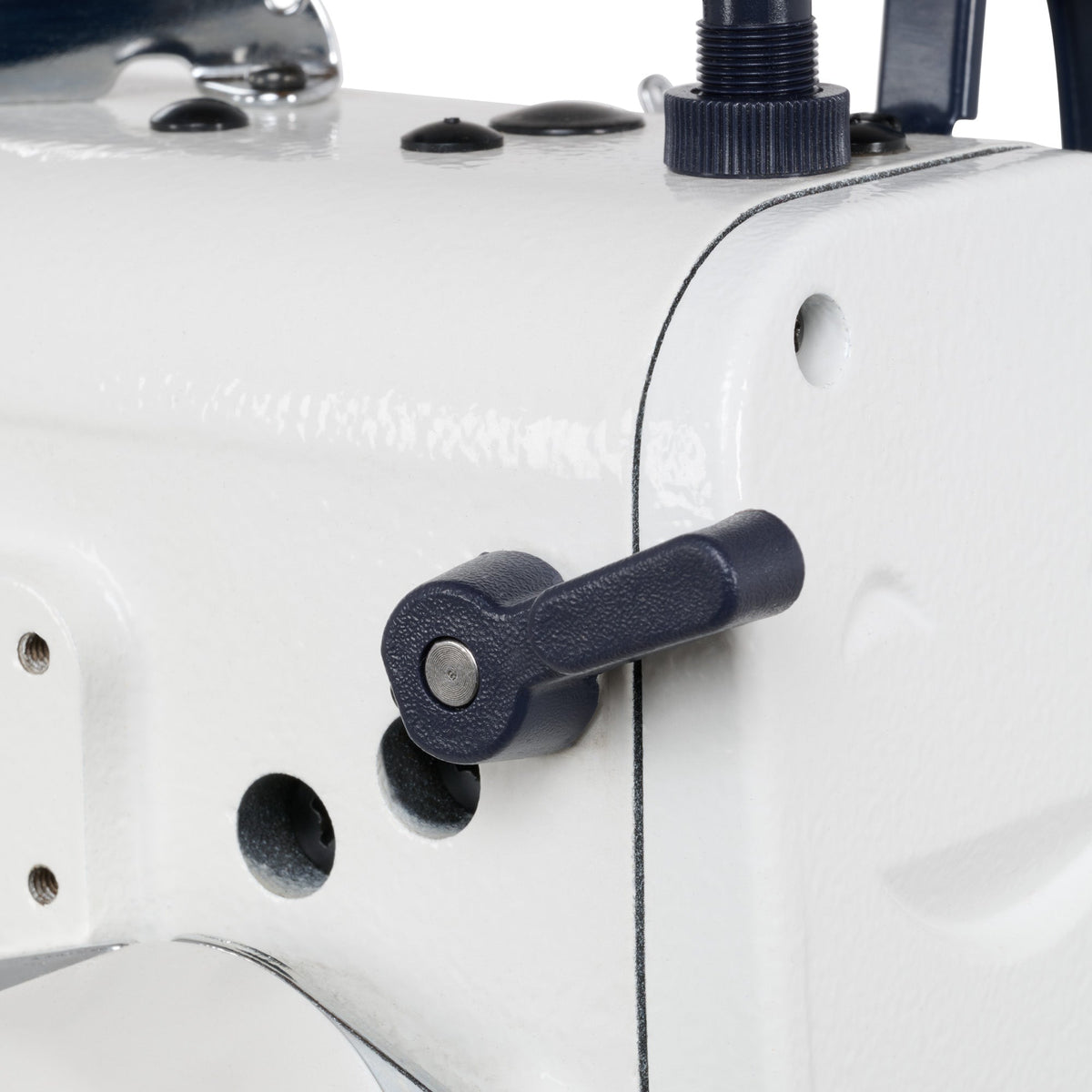

- Automatic backtacking and foot lift: streamlines common start-and-stop production steps.
- Programmable control panel: supports stitch-length programming, stitch limiting, slow start and speed control.
- Dual Direct Drive: beltless motor technology gives responsive speed control and efficient power transfer.

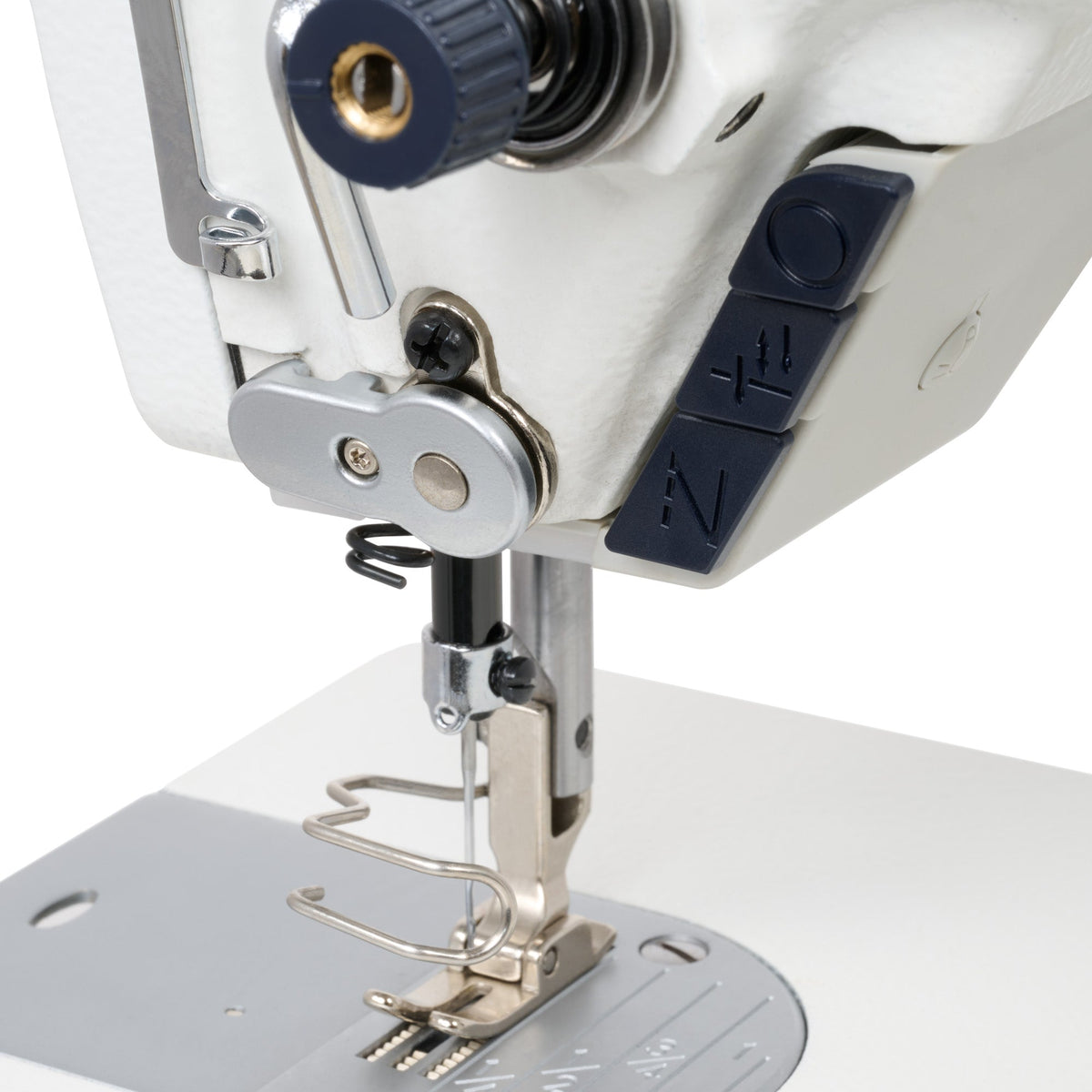

- Needle positioning and index stitching: improve control for pivots, corners and one-stitch adjustments.

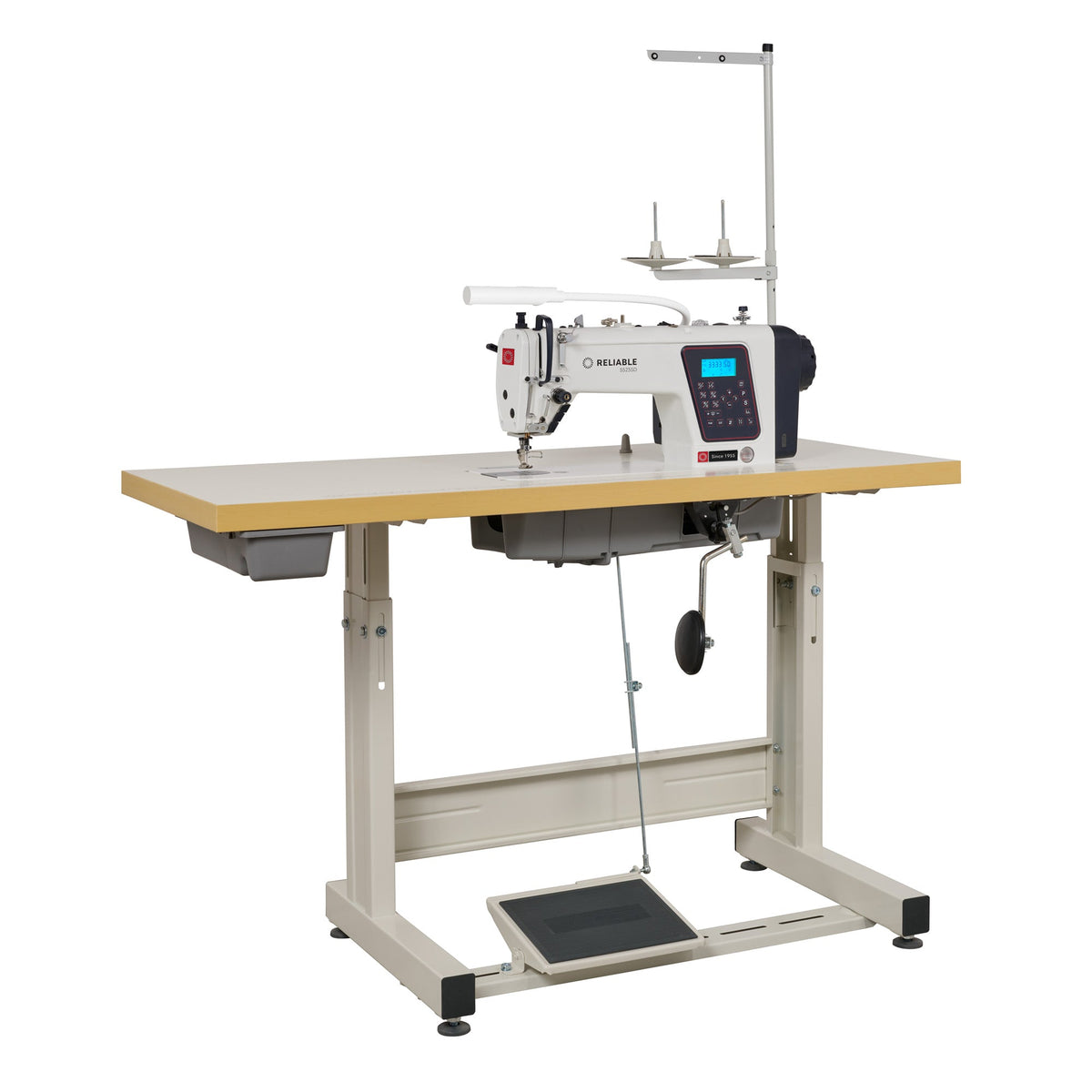

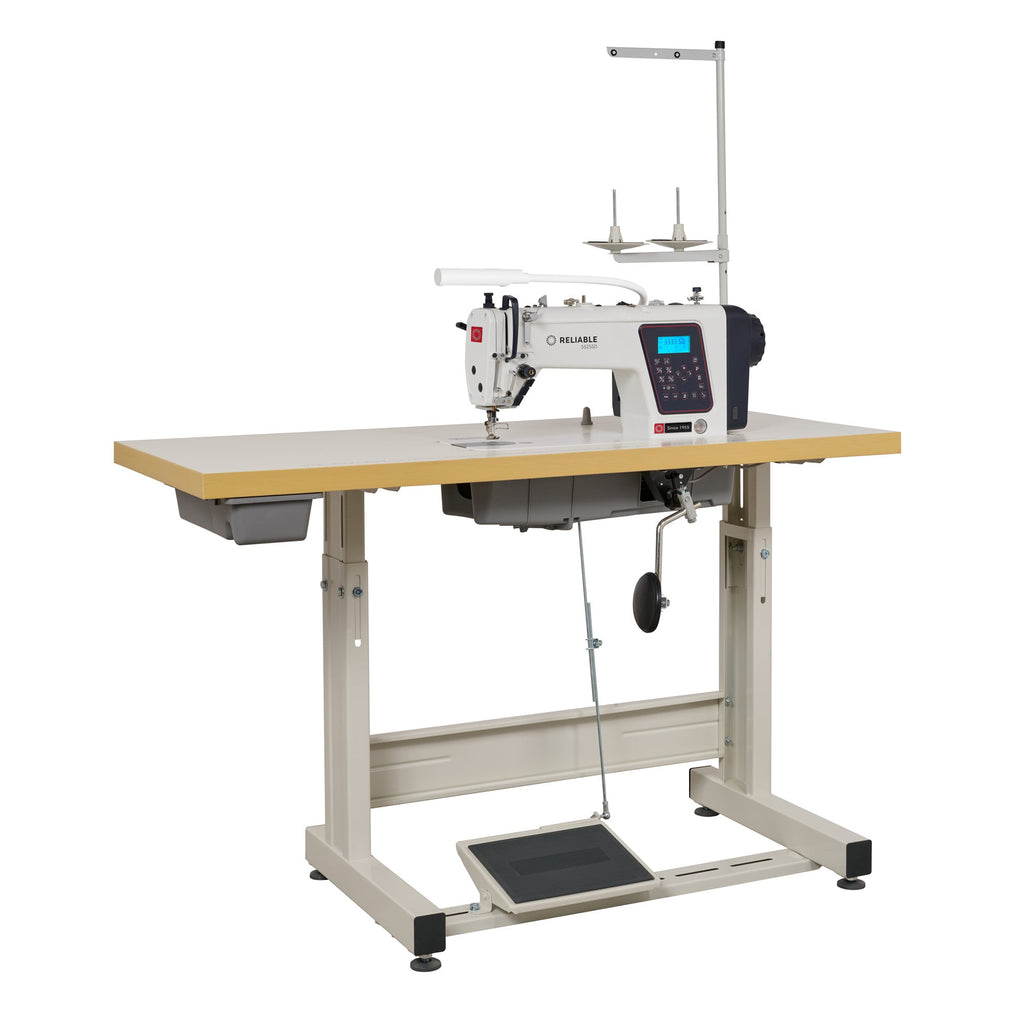

- Complete workstation: includes stand, tabletop and UberLight Flex sewing light.
Specifications

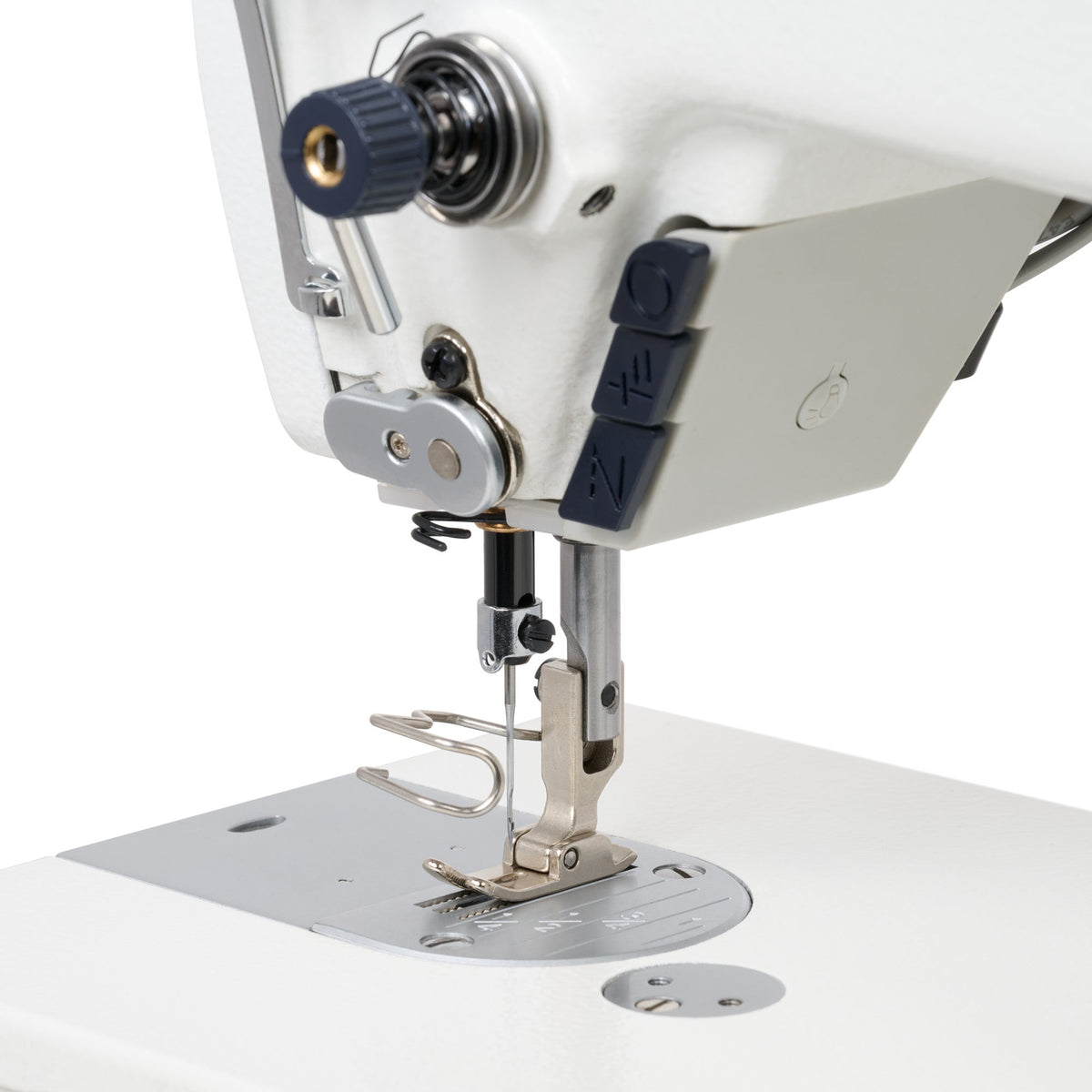

| Machine type | Single-needle lockstitch, flat bed, drop feed |
|---|---|
| Recommended materials | Light to medium weight |
| Maximum speed | 5,000 RPM |
| Stitch length | 0–5 mm |
| Needle system | 16 × 257 |
| Workspace | 10 in. / 25.4 cm |

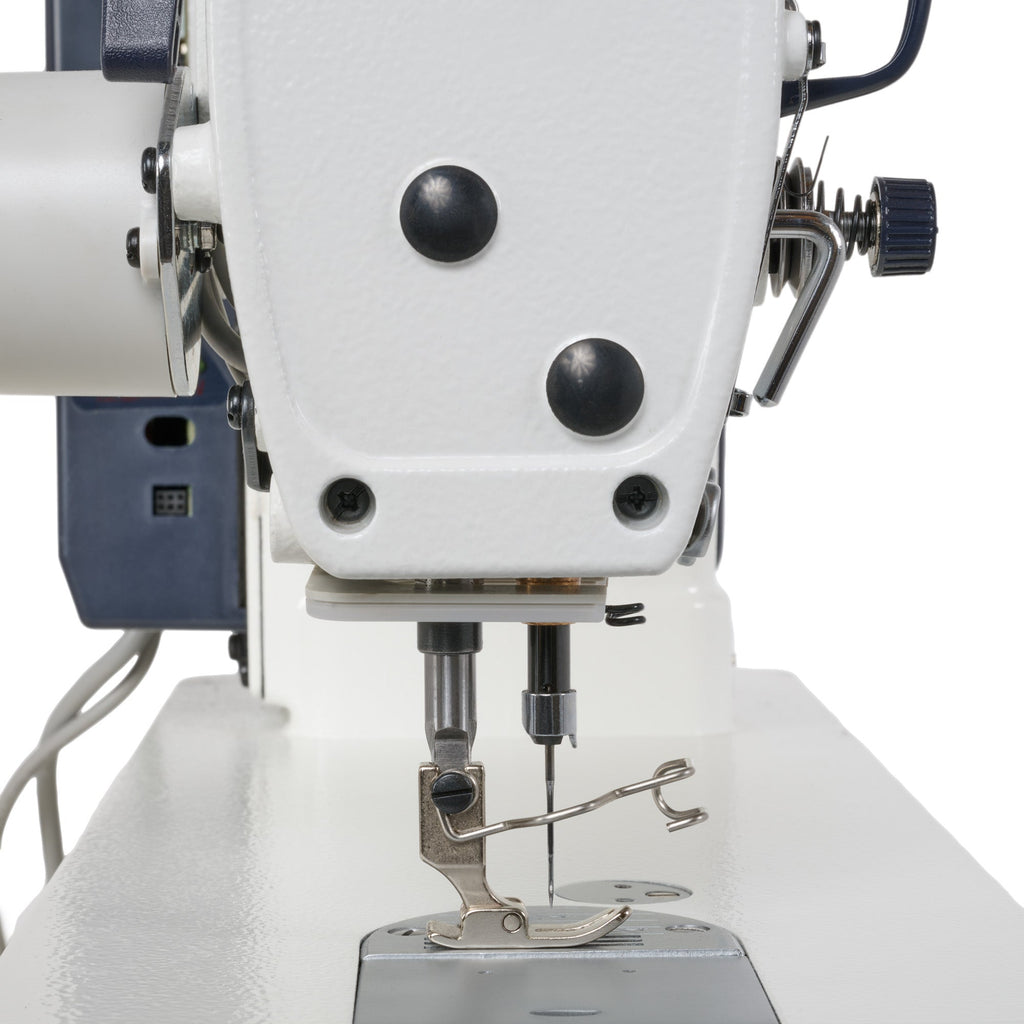

| Presser-foot lift | 5 mm |

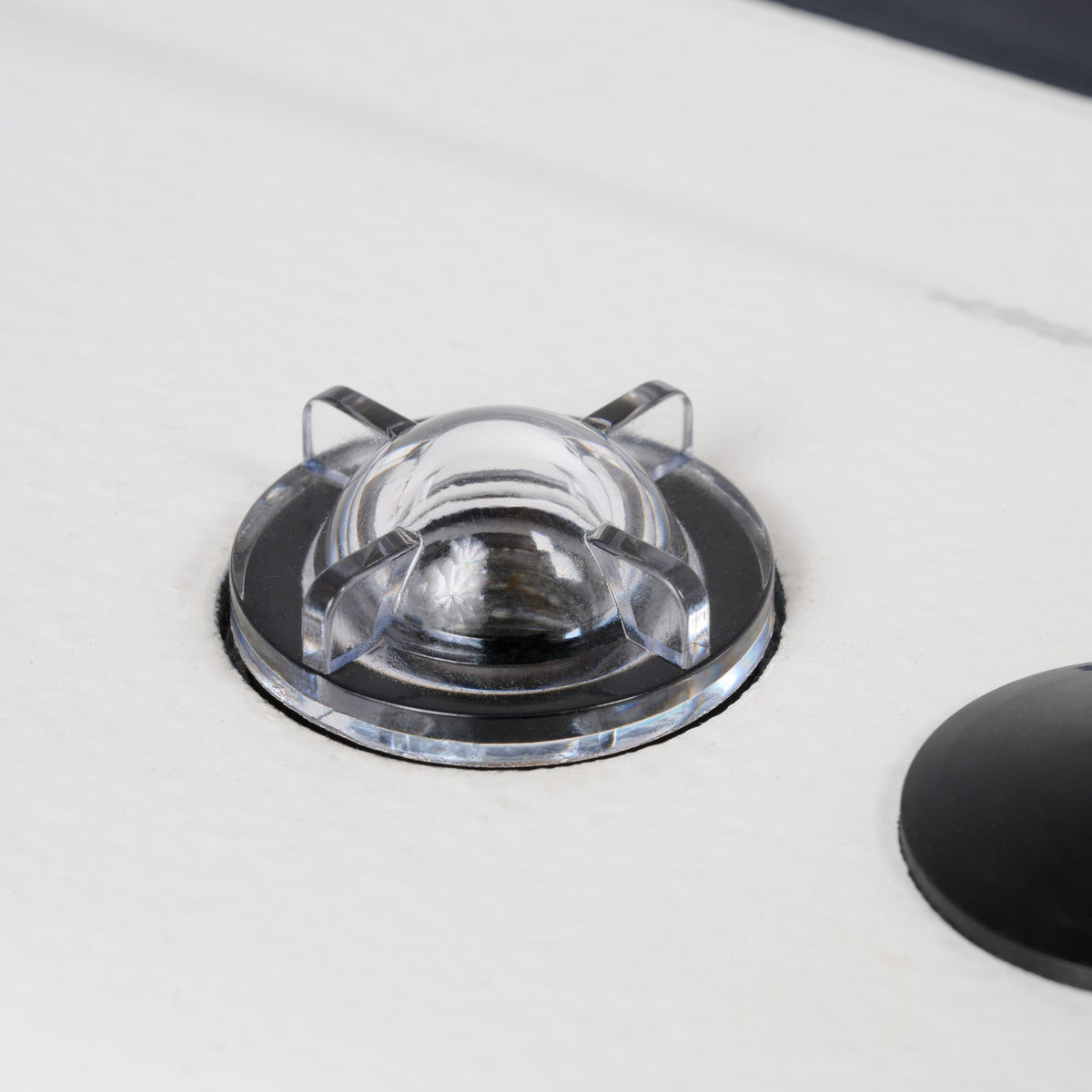

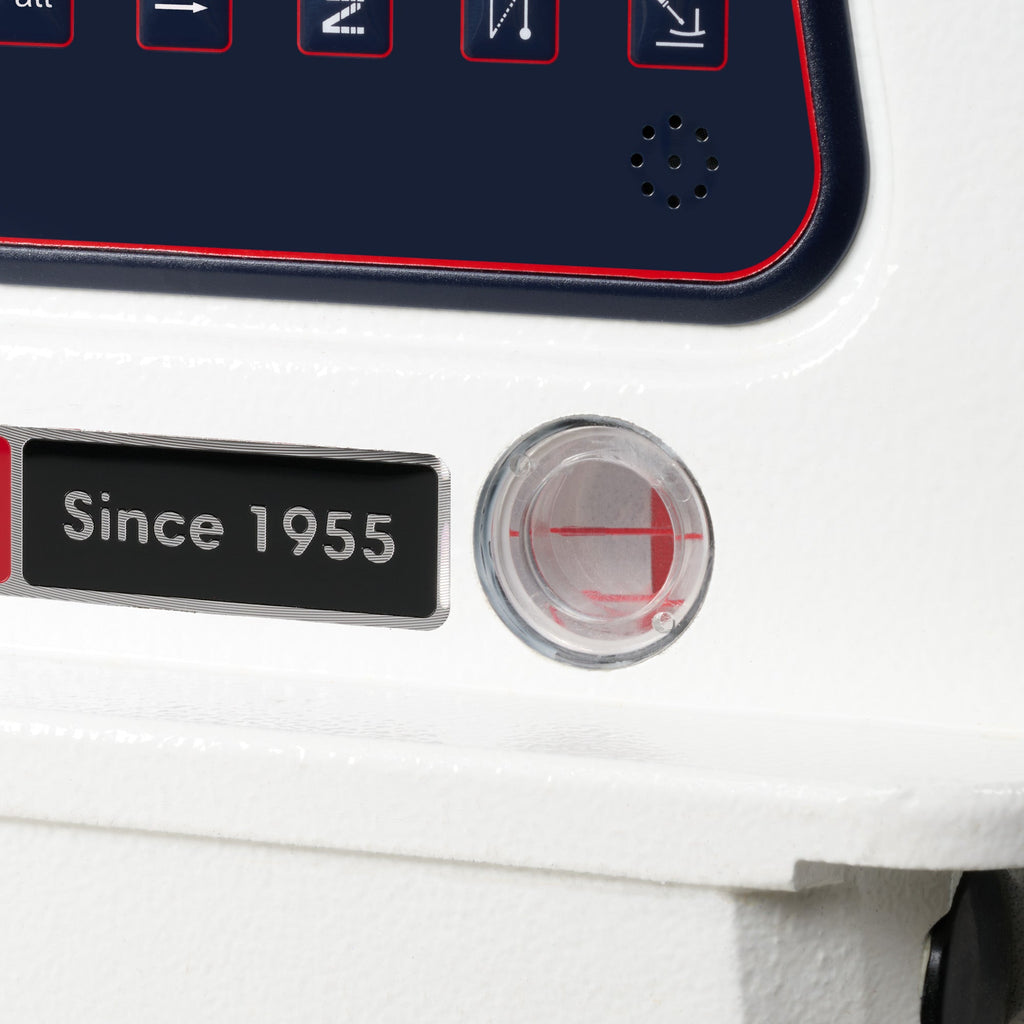

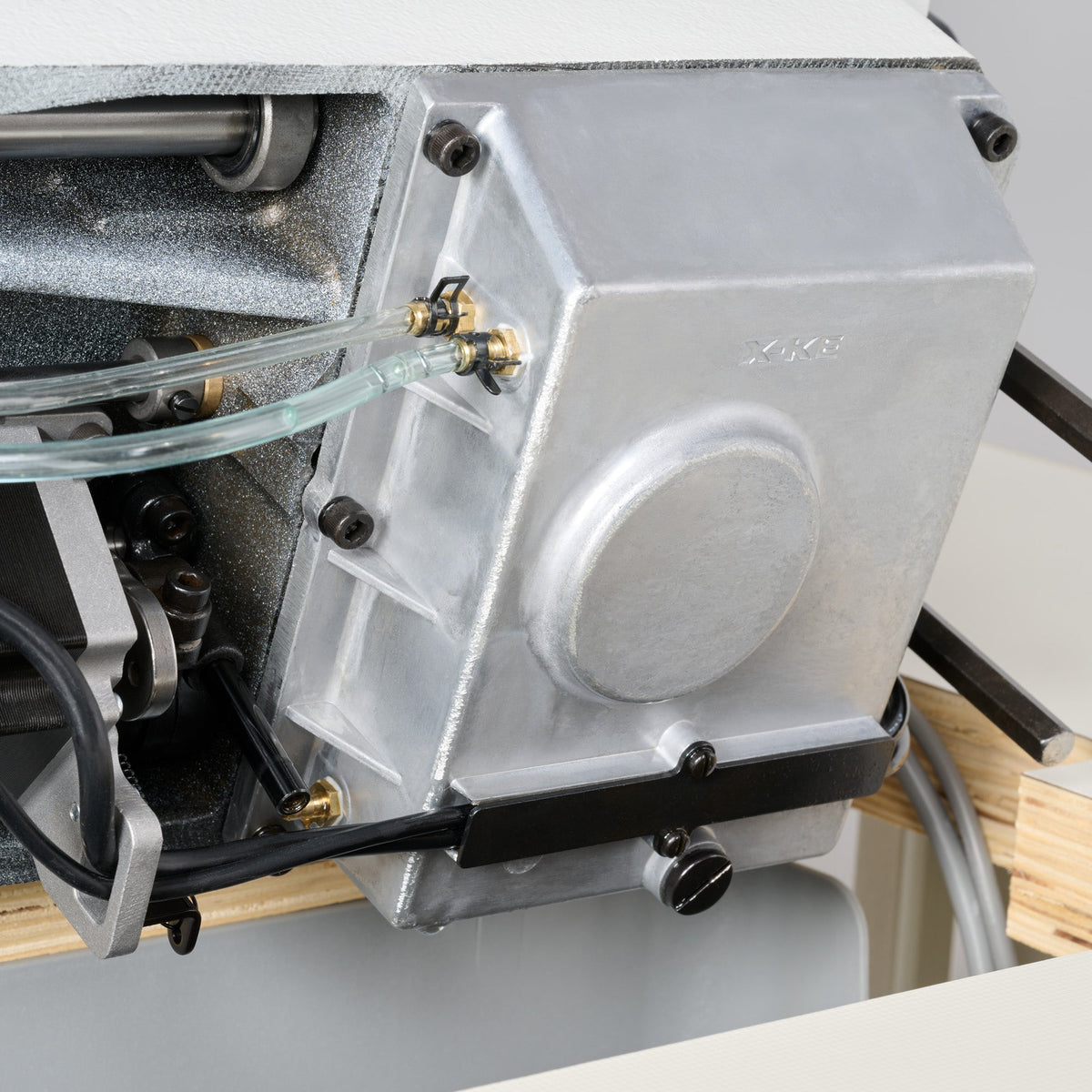

| Lubrication | Automatic |
| Electrical | 110–120 V, 60 Hz |
| Head dimensions | 20 × 9.5 × 7 in. (50.8 × 24.13 × 17.78 cm) |
| Table dimensions | 47.5 × 21.75 × 30 in. (119.63 × 55.25 × 76.2 cm) |
| Pallet dimensions | 48 × 50 × 40 in. (121.9 × 127 × 101.6 cm) |
Included
- Reliable 5525SD machine head with Dual Direct Drive system
- Industrial stand and 21.5 × 47 in. tabletop
- UberLight Flex sewing light
- Foot control and standard machine accessories
- Assembly, testing and sew-off by a Reliable technician
Warranty & Support
Covered by Reliable’s one-year limited warranty. The current instruction manual and manufacturer product information are linked in the support section below. Financing options may be shown at checkout, subject to provider approval.
Best for
Professional workrooms and production shops that need the stitch type, feeding system, and material capacity specified for this model.
Drop shipped directly from Reliable. A $500 flat-rate LTL freight charge applies; delivery timing and access requirements are confirmed after order.
