Reliable 5400TW Two-Needle 18-Inch Long-Arm Walking-Foot Industrial Sewing Machine
$4,999.00
Skip to product information
Reliable 5400TW Two-Needle 18-Inch Long-Arm Walking-Foot Industrial Sewing Machine
SKU: 5400TW
$4,999.00
Returns & Eligibility
This item is not eligible for return. Please see our return policy.
Buying a Product? Talk to Someone Who Knows Them.
I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.
Description

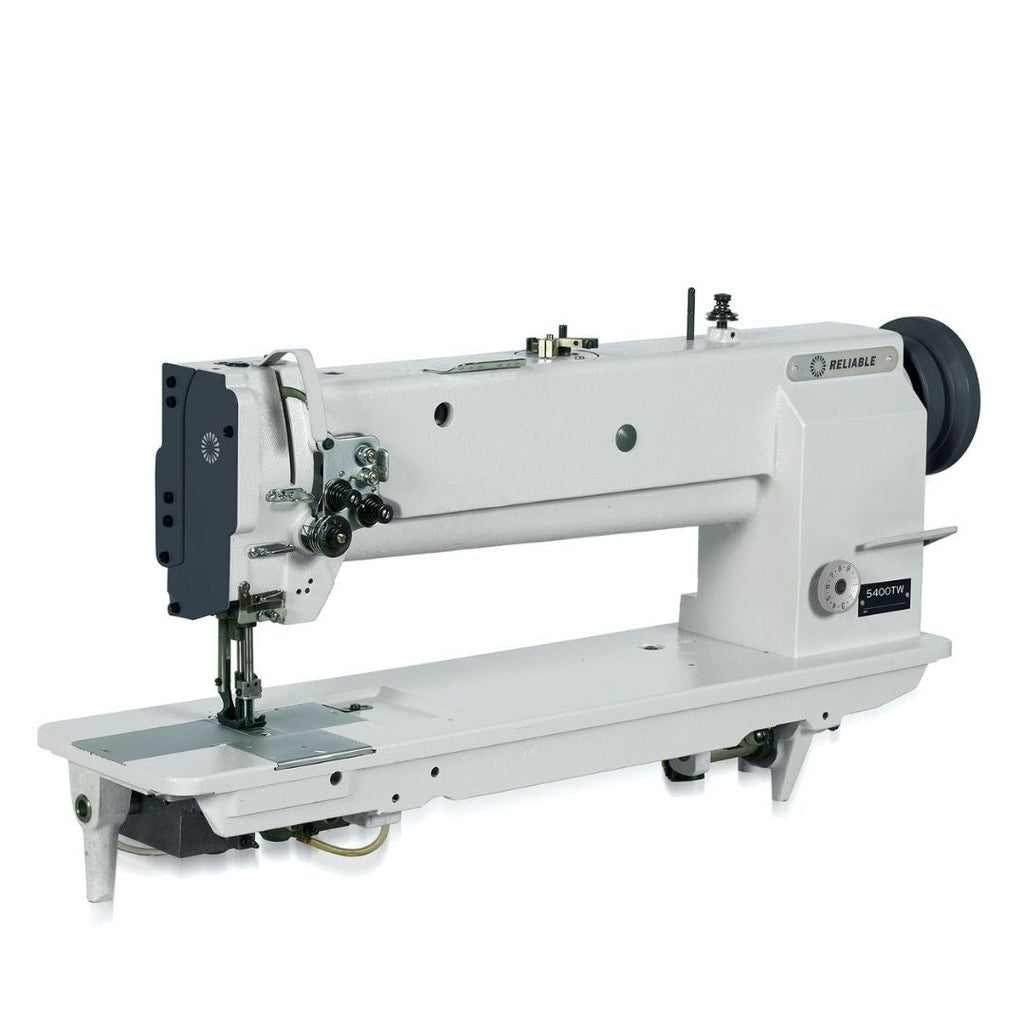

The Reliable 5400TW is a two-needle, compound-feed walking-foot industrial machine with an 18-inch workspace for large medium- to heavyweight projects. Its synchronized top, bottom, and needle feed helps keep leather, canvas, vinyl, upholstery, and layered synthetics aligned, while the twin-needle configuration produces clean parallel rows in one pass.
Who It’s For
Upholstery shops, marine-canvas makers, leather-goods studios, and production teams that need twin-needle seams across large or bulky assemblies.
Why It Stands Out

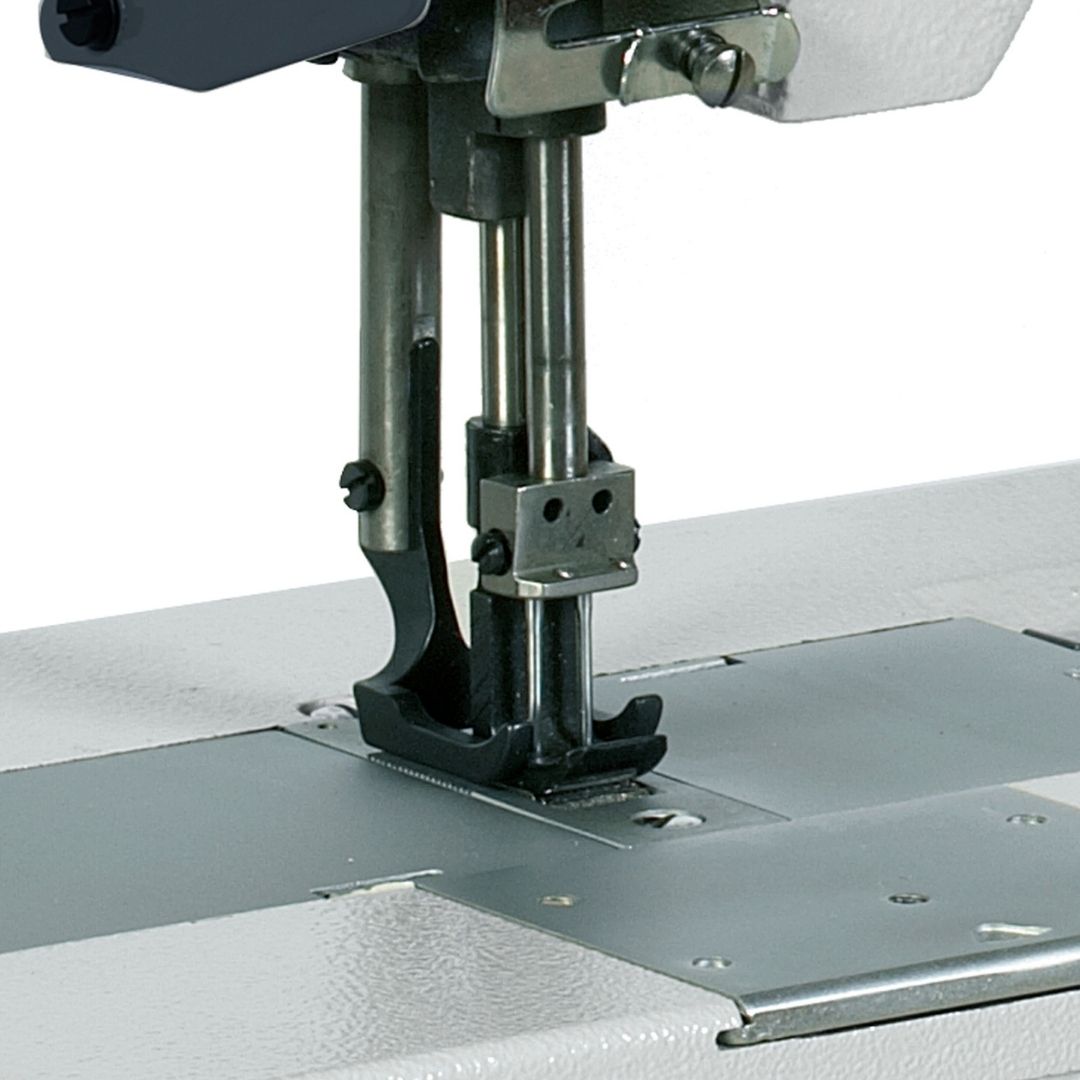

- Two-needle compound-feed walking-foot system

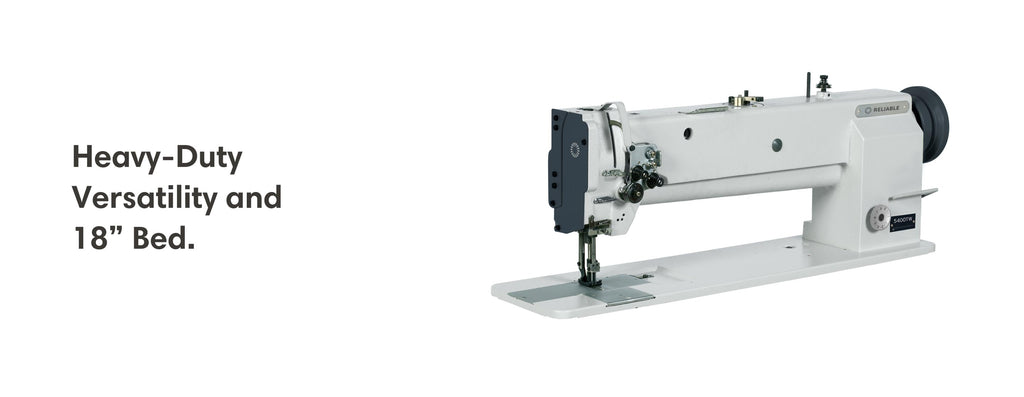

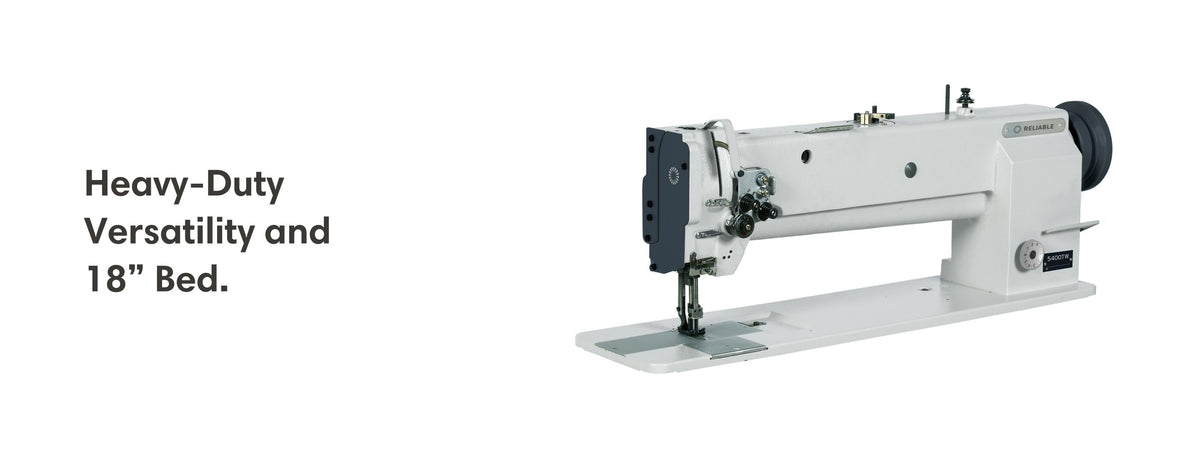

- 18-inch workspace for large assemblies
- Top-loading large-capacity hook and drop-in bobbin access

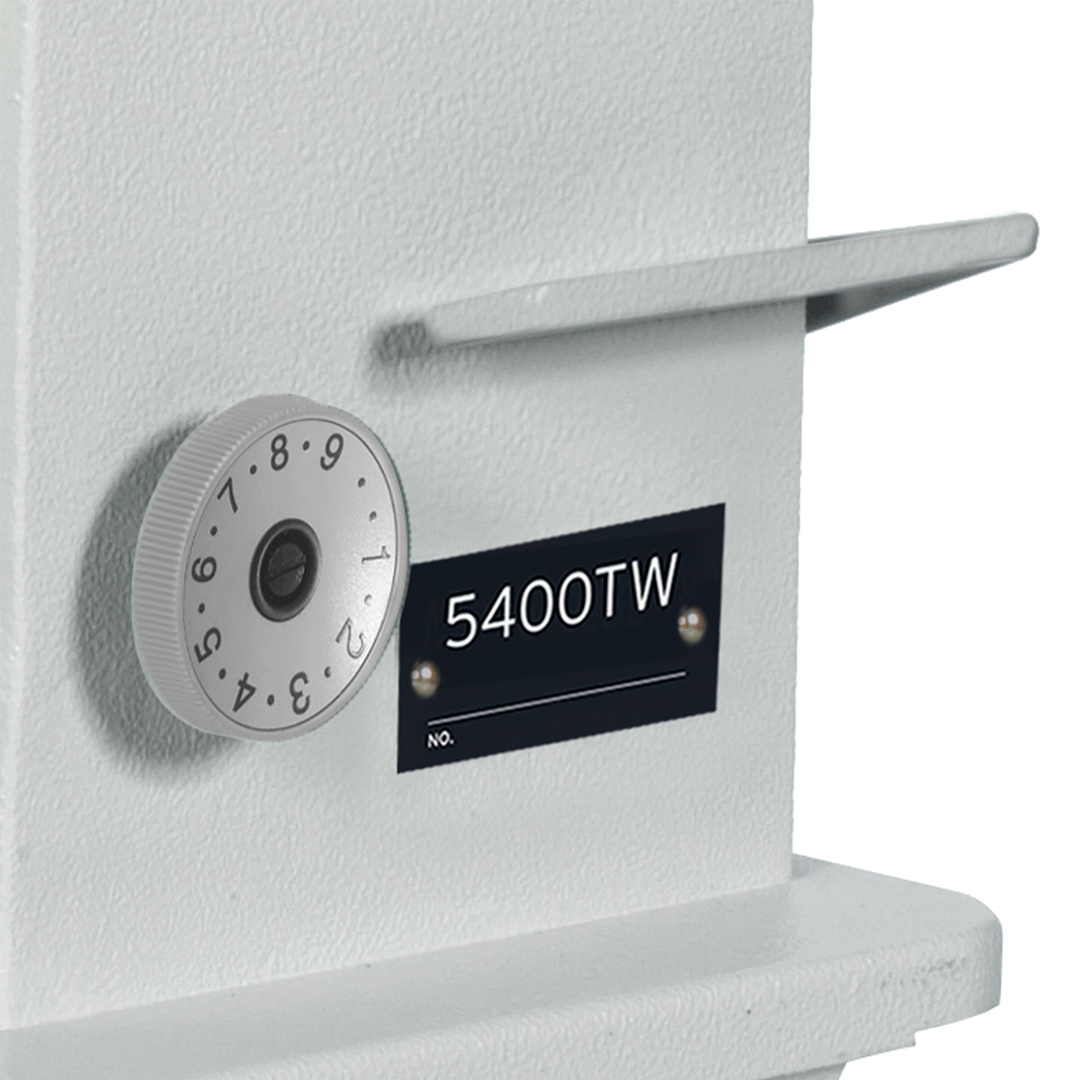

- 0–9 mm stitch-length control with reverse

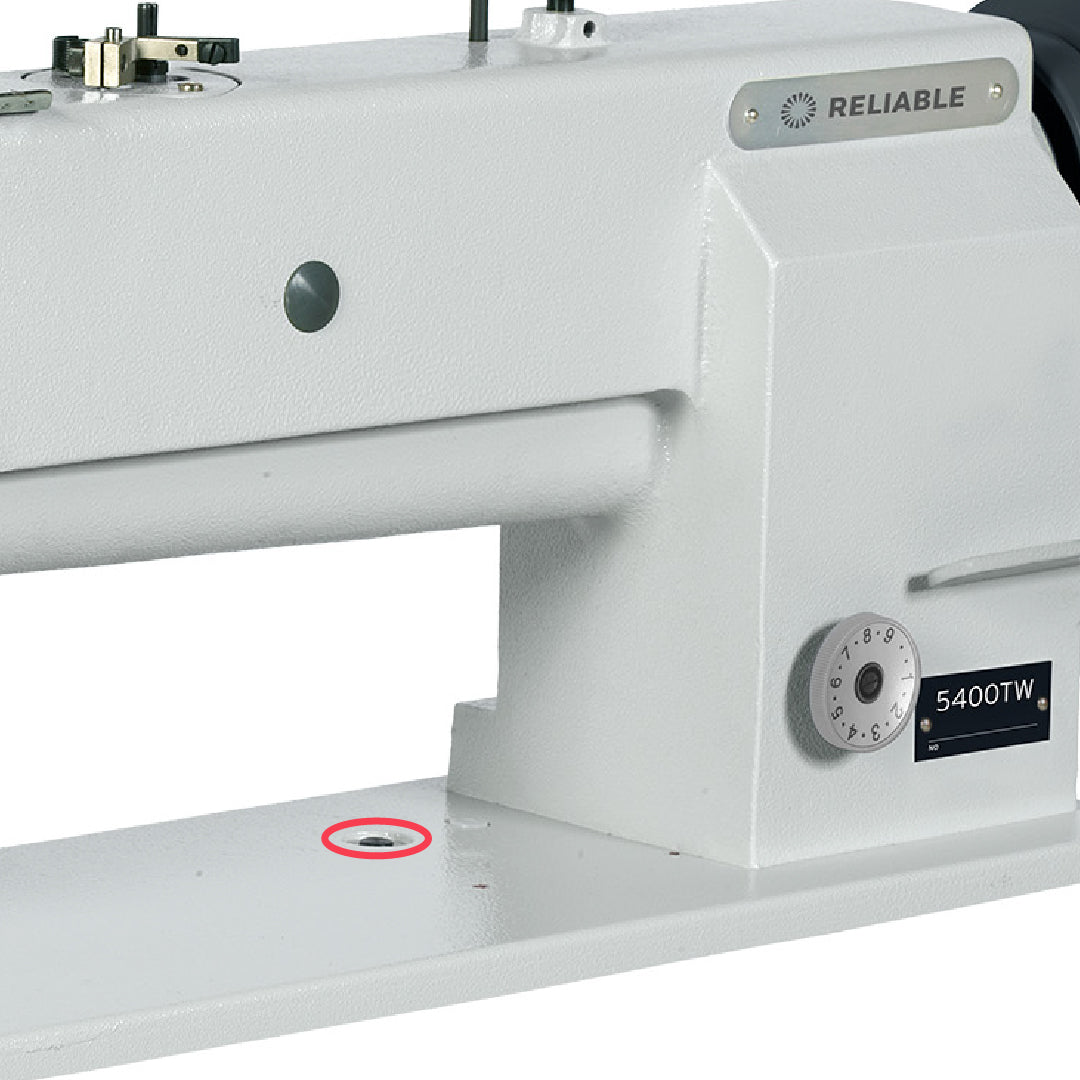

- Automatic lubrication and safety clutch

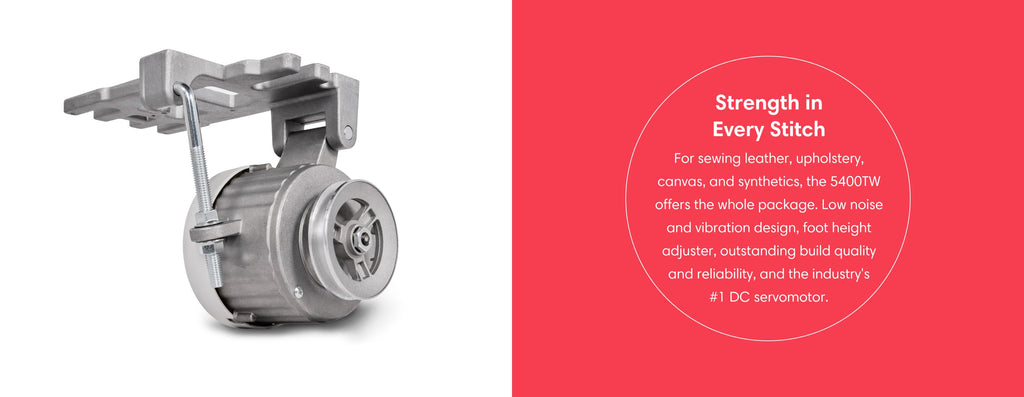

- SewQuiet servo motor with synchronizer
- Ships assembled, tested, and sewn off
Specifications
| Machine type | Two-needle compound-feed lockstitch |
|---|---|
| Workspace | 18 in. / 45.7 cm |
| Maximum speed | 1,800 RPM |
| Stitch length | 0–9 mm |
| Needle system | 135 × 17 |
| Needle gauge | 1/4 in. standard; other gauges available |
| Needle bar stroke | 36 mm |
| Electrical | 110/120V, 60 Hz |

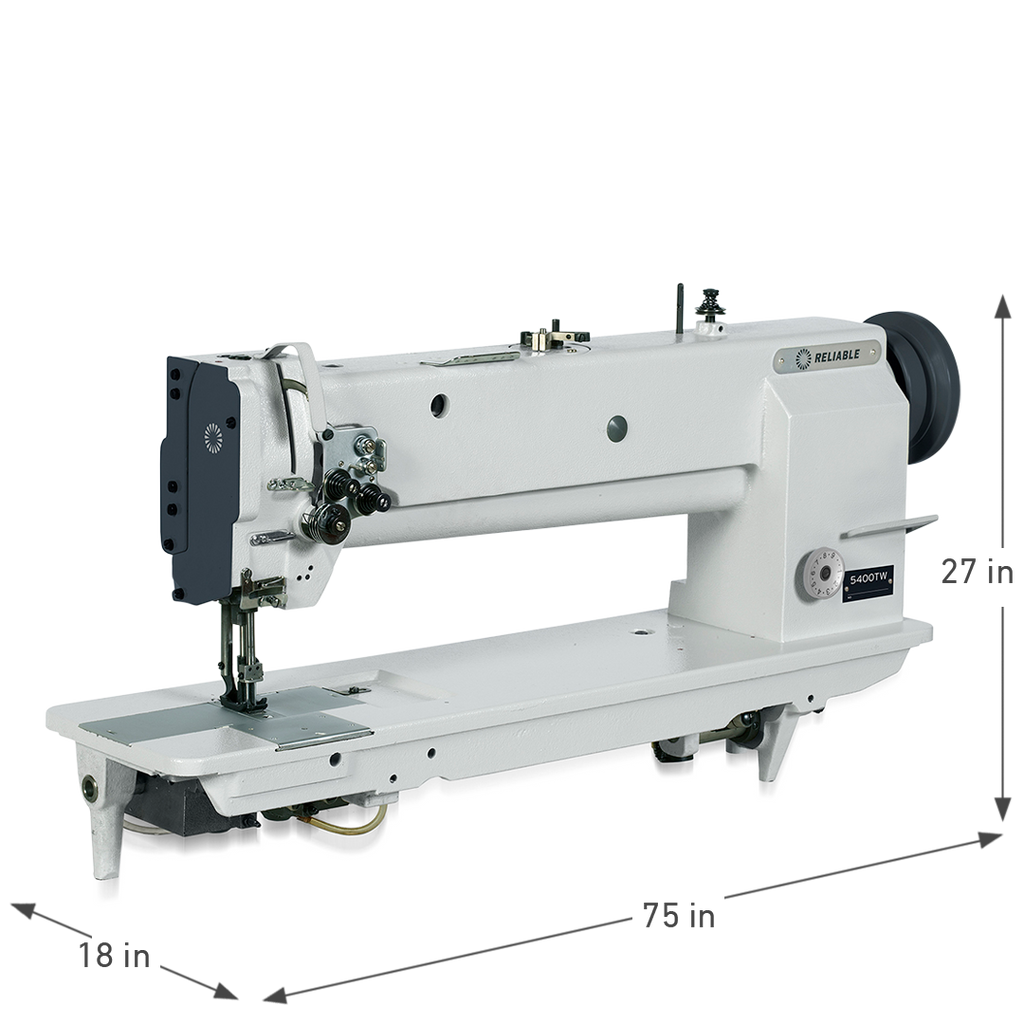

| Head dimensions | 30 × 7 × 10.5 in. |
| Pallet dimensions | 48 × 40 × 40.5 in. |
Included
- Reliable 5400TW machine head
- SewQuiet servo motor with synchronizer
- Industrial table and heavy-duty stand
- UberLight Flex sewing light
- Standard accessories and instruction manual
Warranty & Support
Backed by Reliable’s standard manufacturer warranty and Sew Nation USA product support. Contact us before ordering if you need help selecting needle gauge, thread, binder setup, or confirming material suitability.
Best for
Upholstery, leather, canvas, marine, and other layered-material work that benefits from synchronized feeding.
Drop shipped directly from Reliable. A $500 flat-rate LTL freight charge applies; delivery timing and access requirements are confirmed after order.
Key Features
Warranty
Additional Information
Included Accessories
Specifications
Downloads
