Name: Reliable 5400SW 18" Long-Arm Walking Foot Industrial Sewing Machine
Brand: Reliable
SKU: 35414
Price: 4599.00 USD
Availability: InStock

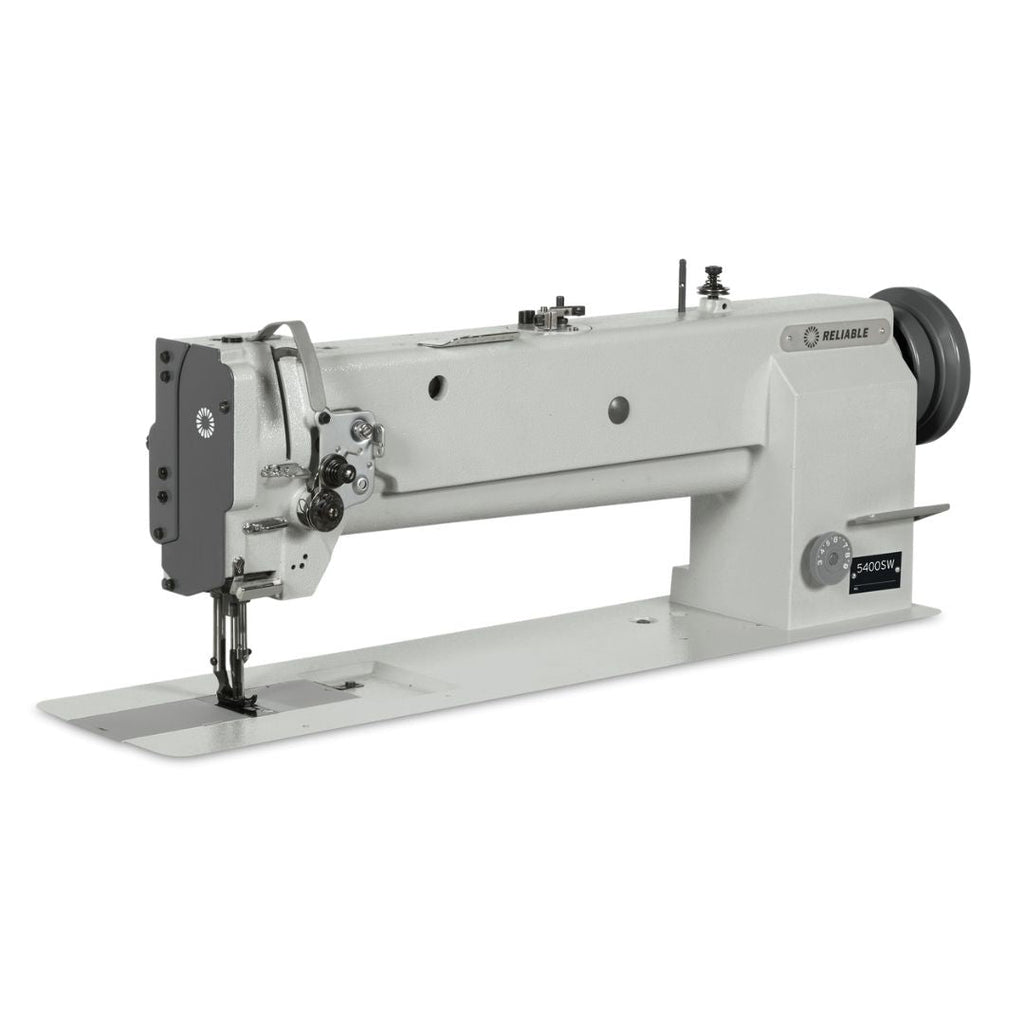

Reliable 5400SW 18-inch long-arm walking foot industrial sewing machine

Reliable 5400SW 18" Long-Arm Walking Foot Industrial Sewing Machine

SKU: 35414

$4,599.00

Shipping & Delivery — Freight

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

Long-arm reach for oversized, layered work. The Reliable 5400SW is a single-needle compound-feed walking foot lockstitch machine with an 18-inch workspace for marine canvas, upholstery, leather, covers, bags and other medium- to heavyweight projects that are difficult to maneuver under a standard arm.

Best for

Marine and automotive upholstery, covers and awnings
Large leather, canvas and synthetic assemblies
Shops that need extra clearance without giving up walking-foot control

Why choose the 5400SW

18-inch workspace and 7 × 28.5-inch machine bed for bulky assemblies
Full compound feed helps layers advance evenly
Top-loading large-capacity hook and drop-in bobbin access

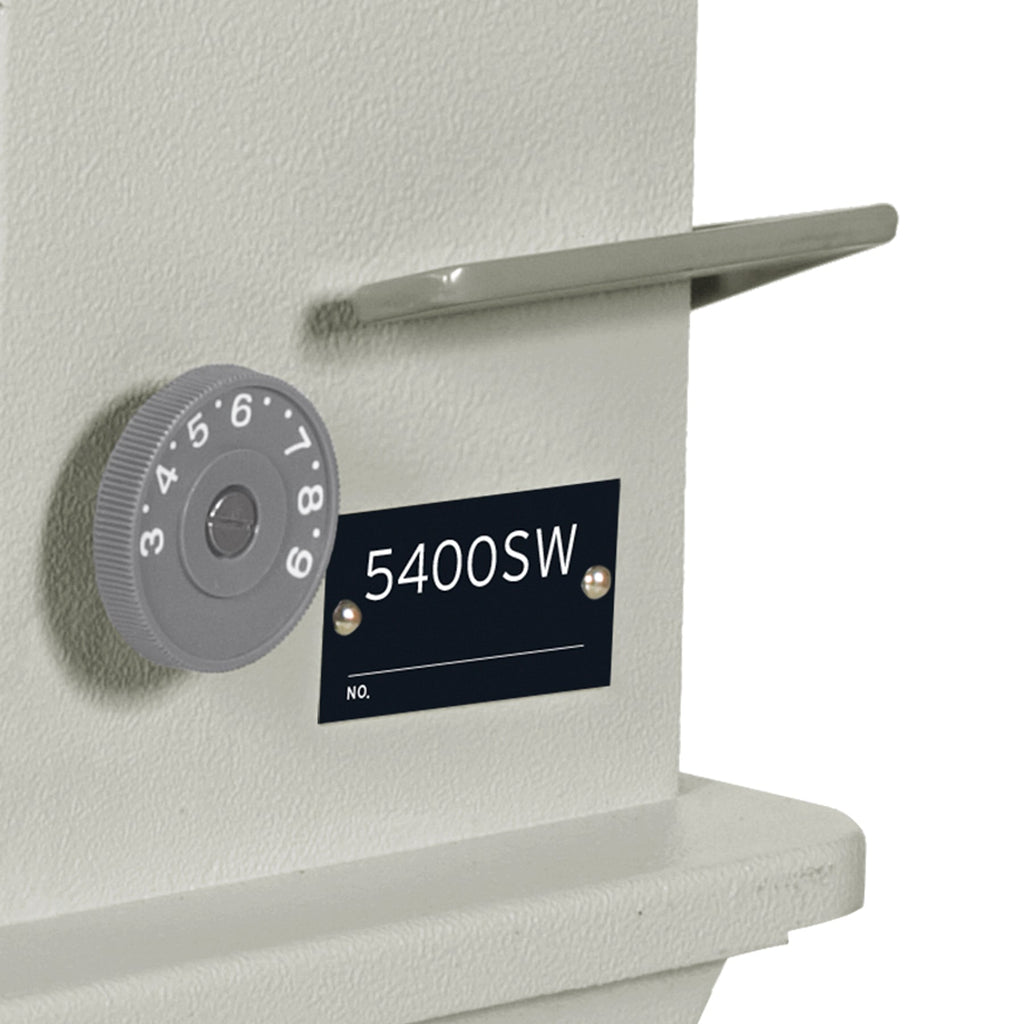

Built-in bobbin winder, adjustable 0–9 mm stitch length and reverse lever
Automatic lubrication system with pump

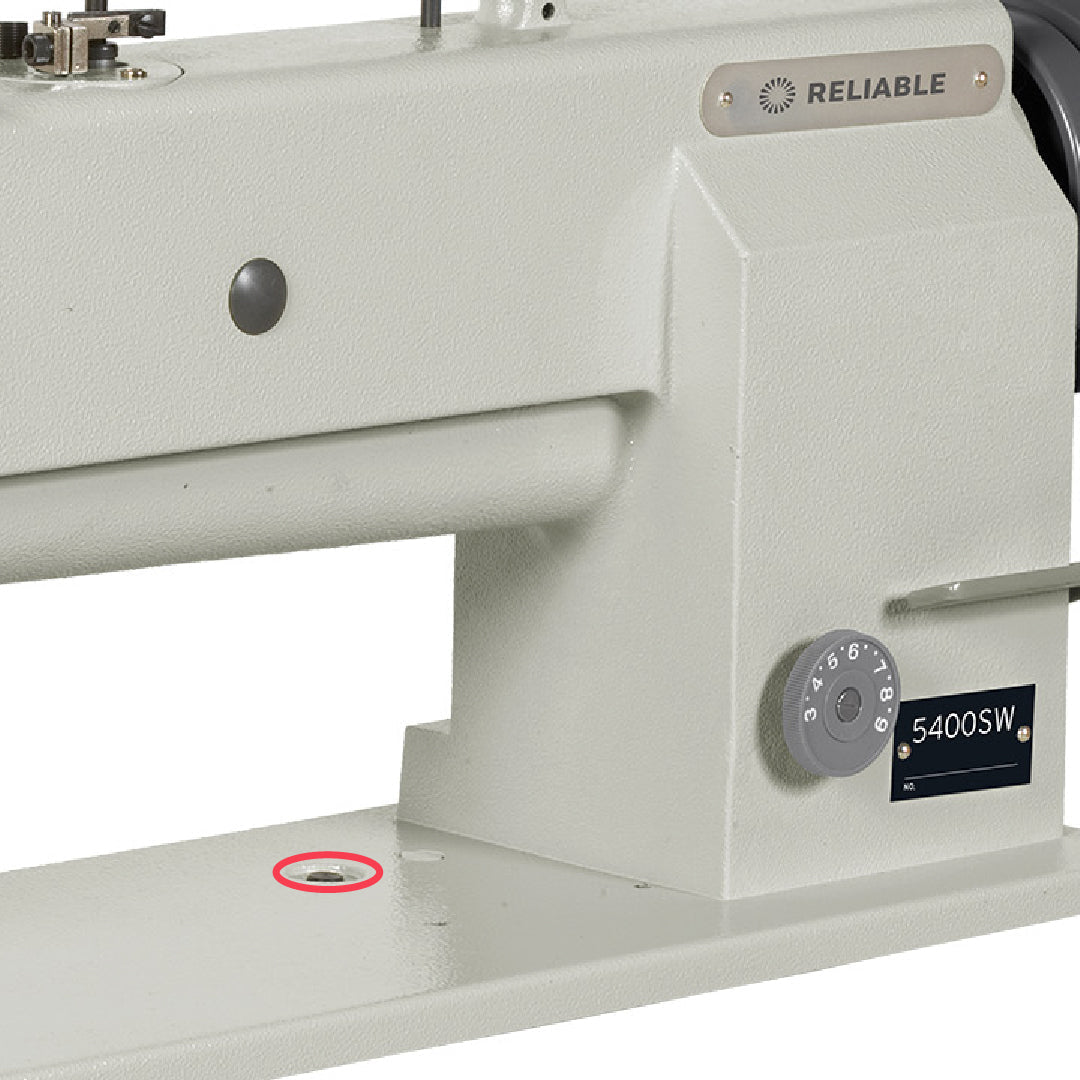

Safety clutch disengages during jams to help protect the mechanism

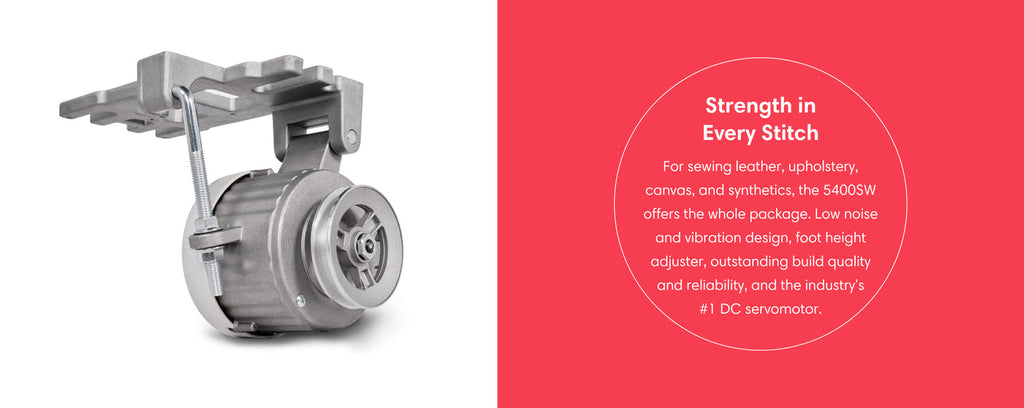

750W SewQuiet 7000SM servo motor with synchronizer for controlled power and needle positioning

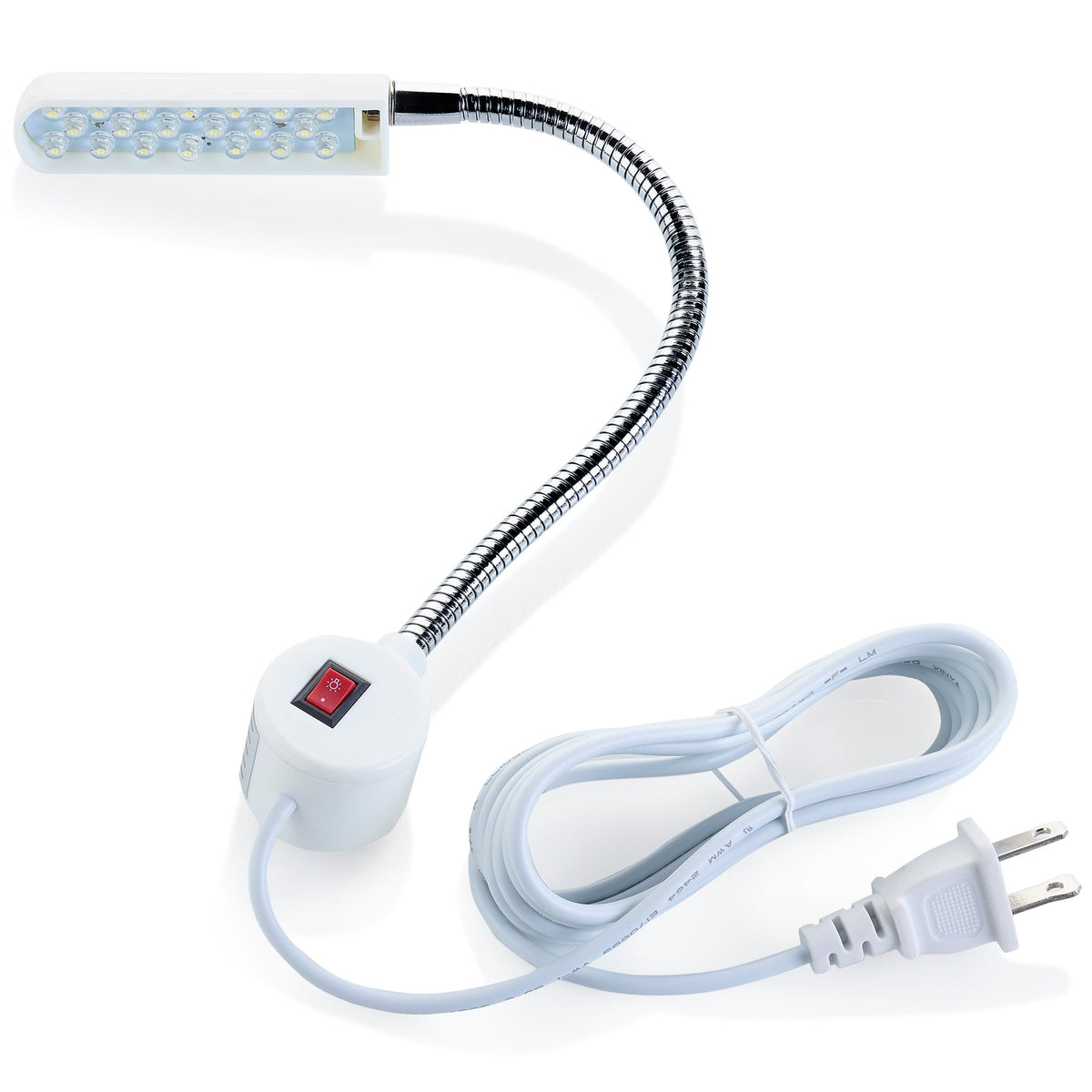

UberLight 120TL task light included

Complete industrial package

Includes the machine head, SewQuiet 7000SM servo motor with synchronizer, UberLight 120TL, heavy-duty table and adjustable industrial stand. The unit ships fully assembled, technician-tested and sewn off.

Freight delivery

This machine drop-ships from Reliable on a pallet. A flat $500 LTL freight charge applies; expedited parcel shipping is not available. Contact Sew Nation USA before ordering if you need help confirming materials, binder compatibility, delivery access or financing options.

Verified specifications

Machine type: single-needle long-arm walking foot compound-feed lockstitch
Workspace: 18 in. (45.7 cm)
Machine bed: 7 × 28.5 in.
Needle system: 135 × 17
Stitch length: 0–9 mm
Needle bar stroke: 36 mm
Foot lift: 8 mm
Maximum speed: 1,800 RPM
Motor: SewQuiet 7000SM, 750W (1 HP), with synchronizer
Electrical: 110/120V, 60 Hz

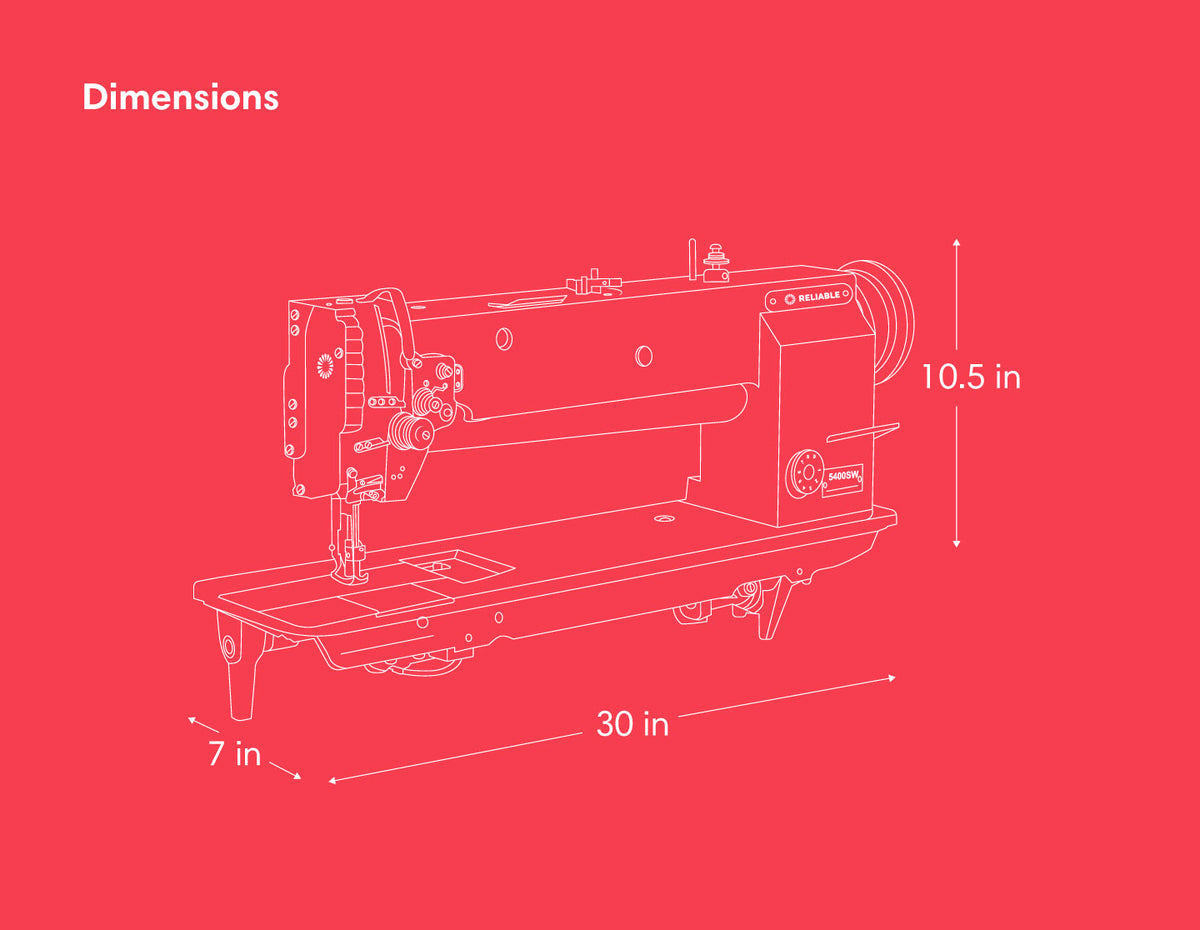

Head dimensions: 30 × 7 × 10.5 in. (76.2 × 17.8 × 26.7 cm)
Table dimensions: 47.5 × 21.75 × 30 in. (119.63 × 55.25 × 76.2 cm)
Pallet dimensions: 48 × 40 × 40.5 in. (121.9 × 101.6 × 102.9 cm)

Key Features

• 18-inch workspace for large covers, upholstery and canvas work

• Full compound feed and top-loading large-capacity hook

• Adjustable 0–9 mm stitch length with reverse

• Automatic lubrication, built-in bobbin winder and safety clutch

• 750W SewQuiet 7000SM servo motor with synchronizer

• Ships fully assembled, tested and sewn off

Warranty

Backed by Reliable's standard one-year limited warranty against defects in materials and workmanship. Warranty coverage is subject to the manufacturer's written terms and exclusions.

Sew Nation USA can assist with warranty coordination and product support.

Additional Information

Best for: oversized marine, automotive, upholstery, leather and canvas assemblies that need long-arm clearance and compound-feed control.

Delivery: drop-ships from Reliable on a pallet via LTL freight. A flat $500 freight charge applies; expedited parcel shipping is unavailable.

The machine arrives fully assembled, tested and sewn off. Attach the thread stand, follow the oiling instructions and confirm electrical/service access before operation.

Contact Sew Nation USA before ordering for binder compatibility, delivery-access questions or financing assistance.

Included Accessories

• Reliable 5400SW machine head

• SewQuiet 7000SM 750W servo motor with synchronizer

• UberLight 120TL task light

• Heavy-duty industrial table top

• Adjustable industrial stand and foot control

• Built-in bobbin winder

• Automatic lubrication system

• Technician assembly, testing and sew-off

Specifications

Machine type: single-needle long-arm walking foot compound-feed lockstitch

Workspace: 18 in. (45.7 cm)

Machine bed: 7 × 28.5 in.

Needle system: 135 × 17

Stitch length: 0–9 mm

Needle bar stroke: 36 mm

Foot lift: 8 mm

Maximum speed: 1,800 RPM

Motor: SewQuiet 7000SM, 750W (1 HP), with synchronizer

Electrical: 110/120V, 60 Hz

Head dimensions: 30 × 7 × 10.5 in. (76.2 × 17.8 × 26.7 cm)

Table dimensions: 47.5 × 21.75 × 30 in. (119.63 × 55.25 × 76.2 cm)

Pallet dimensions: 48 × 40 × 40.5 in. (121.9 × 101.6 × 102.9 cm)
