Reliable 4510TW Two-Needle Walking Foot Industrial Sewing Machine

SKU: 39639

$3,399.00

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

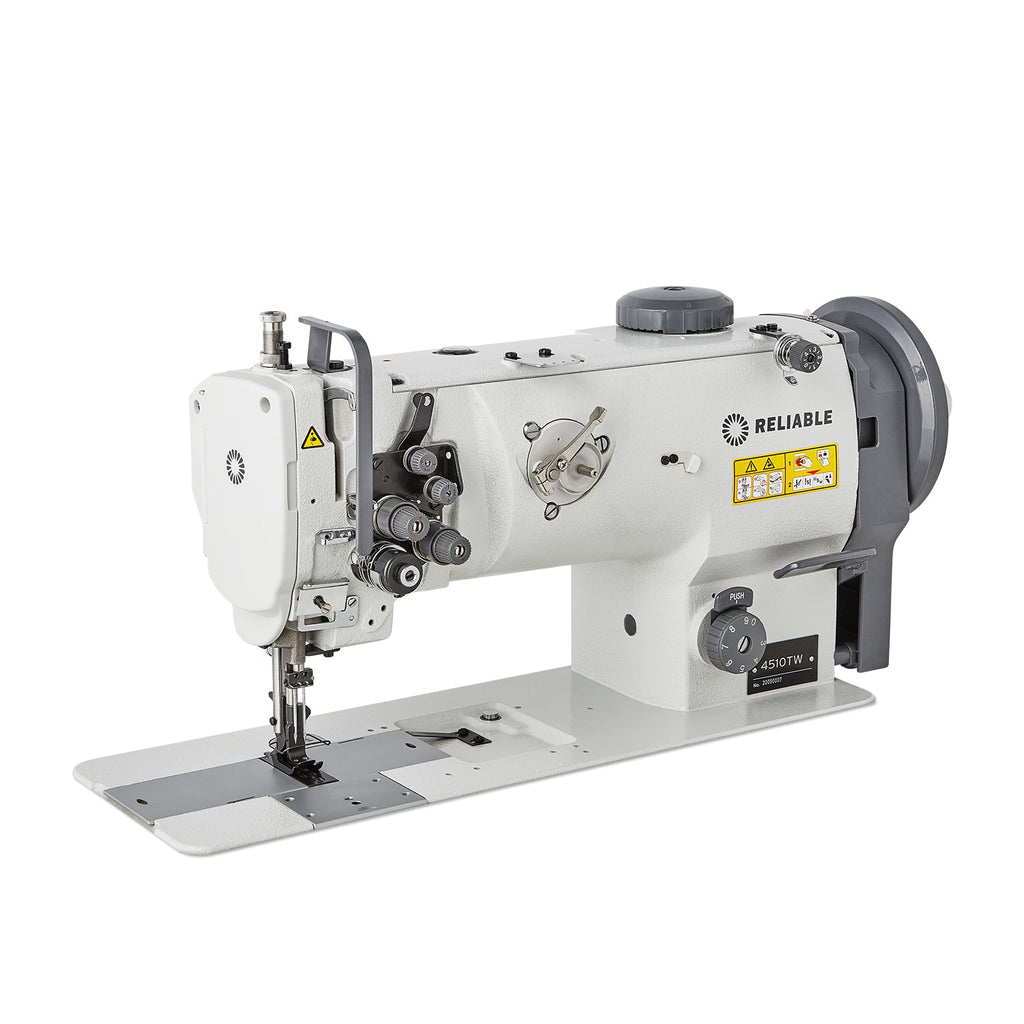

Two parallel rows, one production-ready package. The Reliable 4510TW is a two-needle, compound-feed walking foot lockstitch machine built for medium- to heavyweight leather, upholstery, canvas and synthetics. Its drop-in bobbin, foot-height adjuster and synchronized SewQuiet servo motor give professional shops the control needed for straight, consistent twin-row seams.

Best for

Upholstery, leather goods, marine canvas and technical textiles
Parallel topstitching and reinforced two-row seams
Production shops that need controlled low-speed power with industrial durability

Why choose the 4510TW

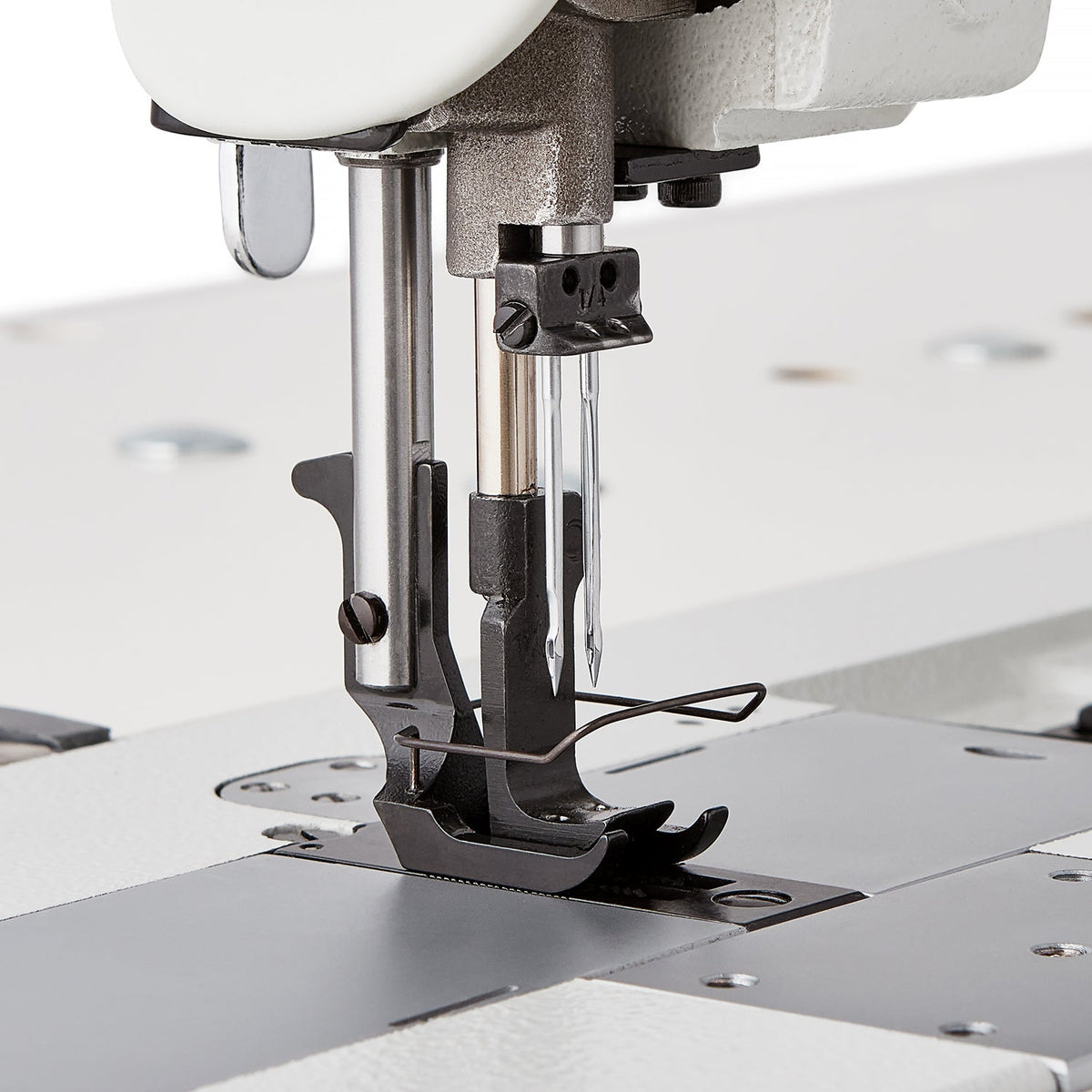

Two-needle compound feed helps keep layered materials aligned
Standard 1/4-inch needle gauge; other gauges are available by special order

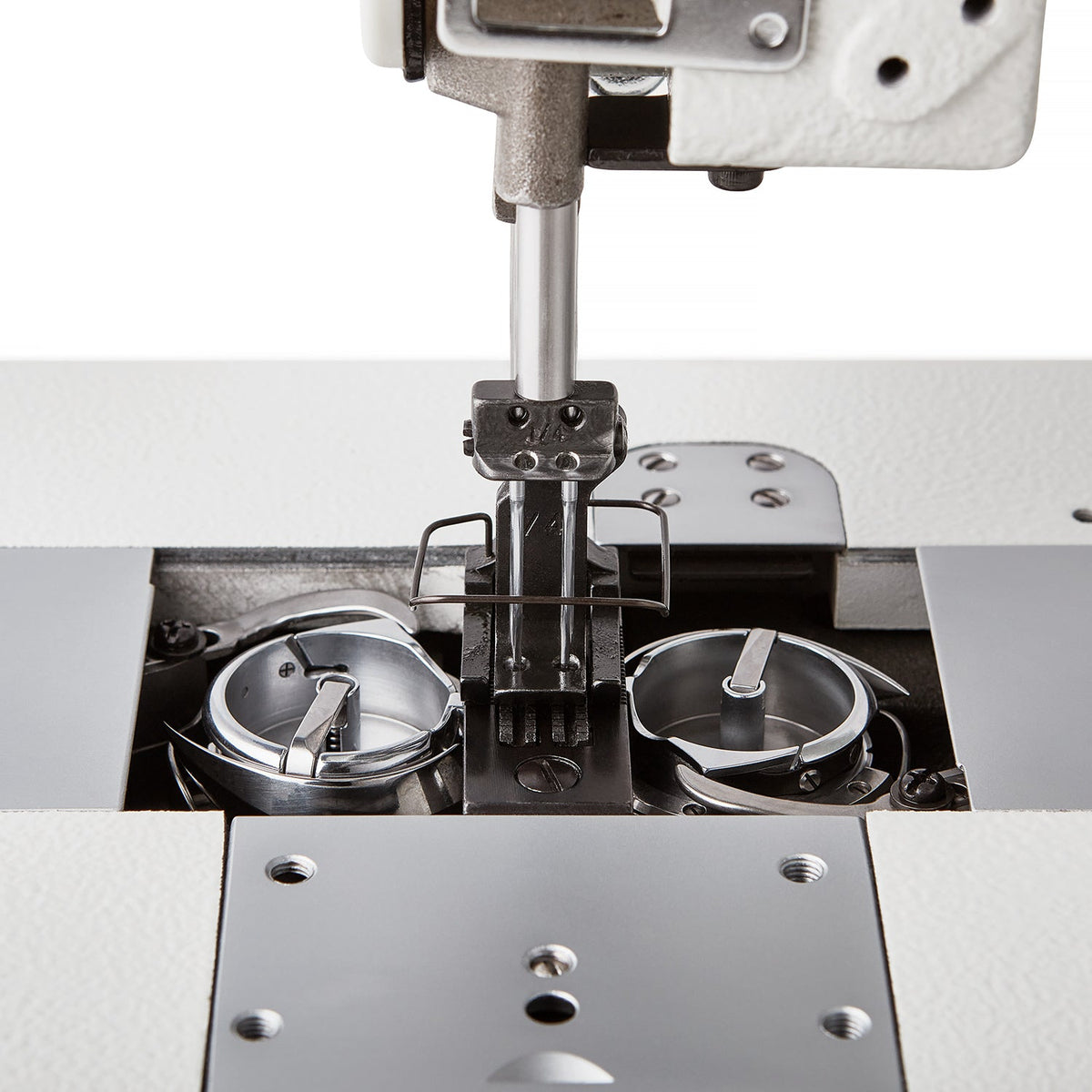

Drop-in bobbin access simplifies changes on heavier work

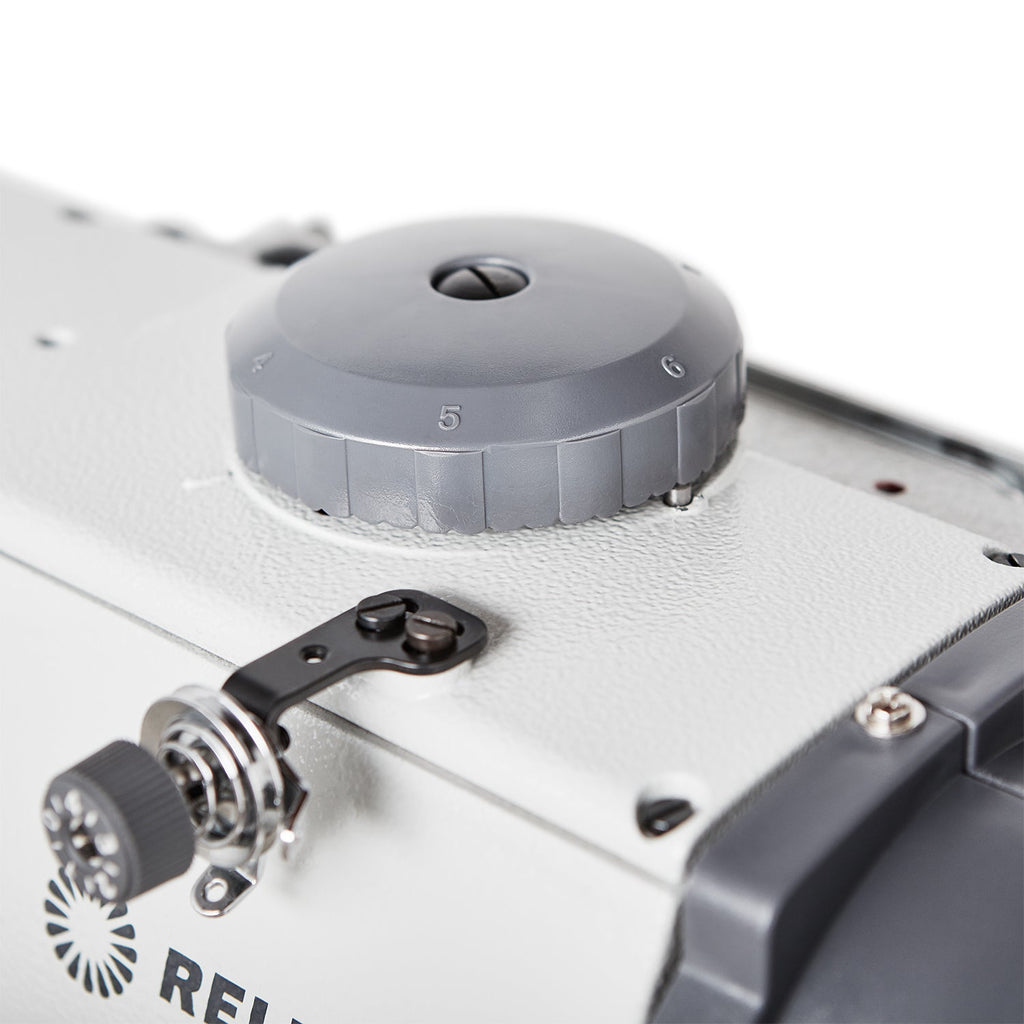

Foot-height adjustment helps accommodate changing material thickness

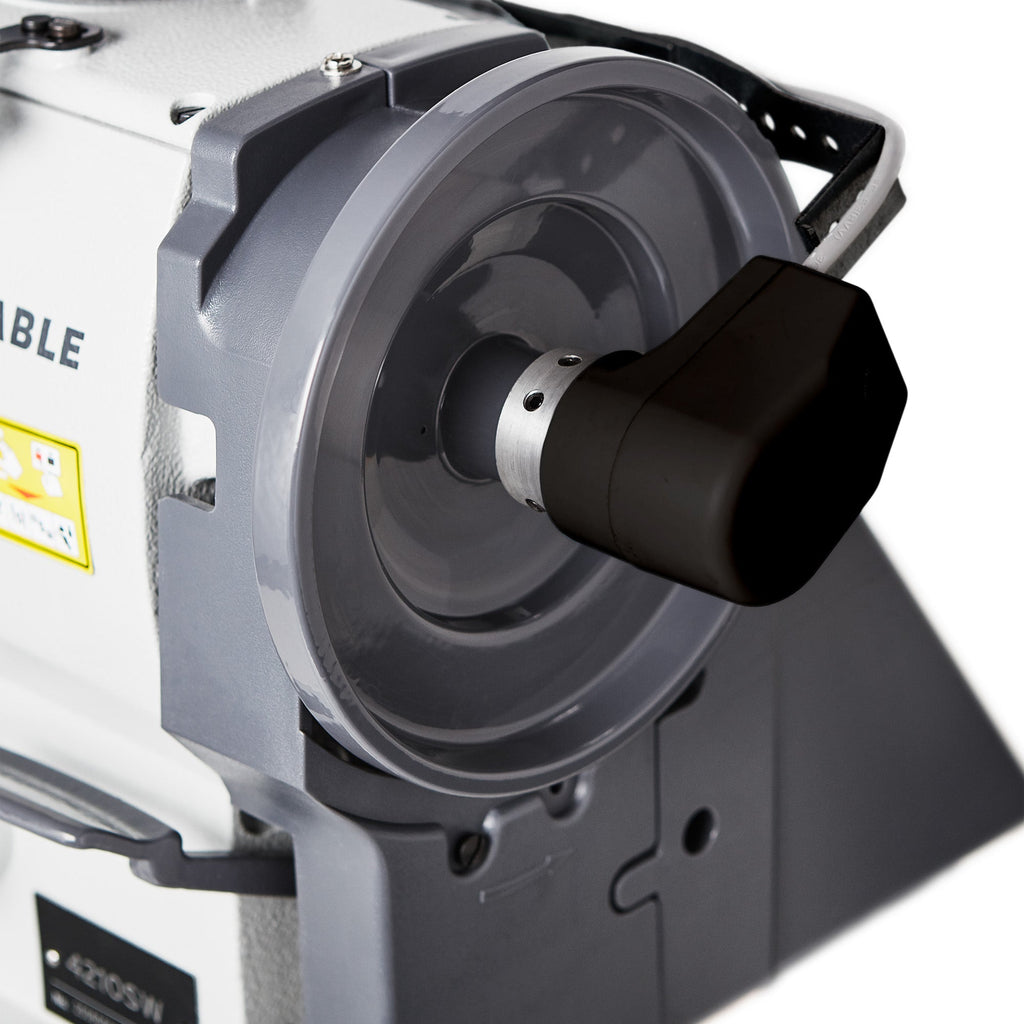

SewQuiet servo motor with synchronizer supports precise needle positioning
Safety clutch disengages during jams to help protect the hook and feed system

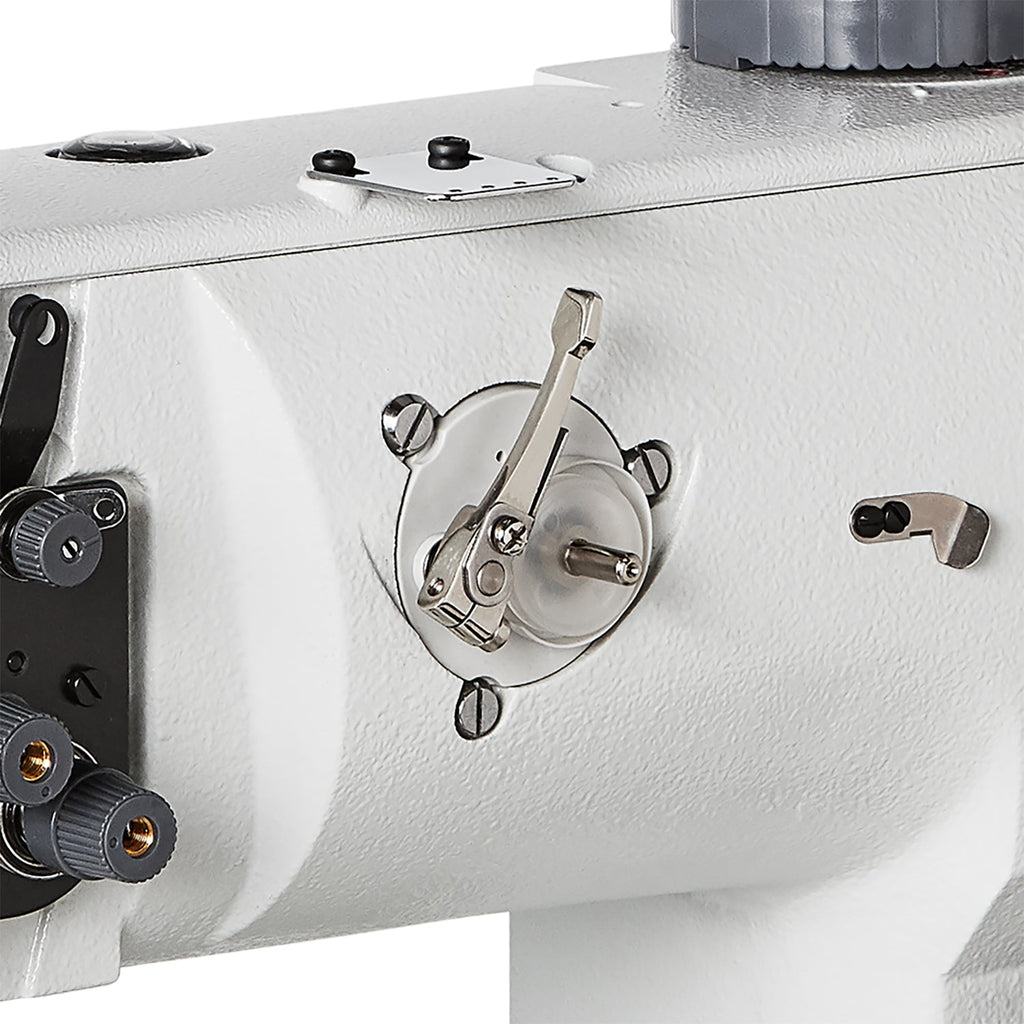

Automatic bobbin winder and included UberLight Flex task light

Complete industrial package

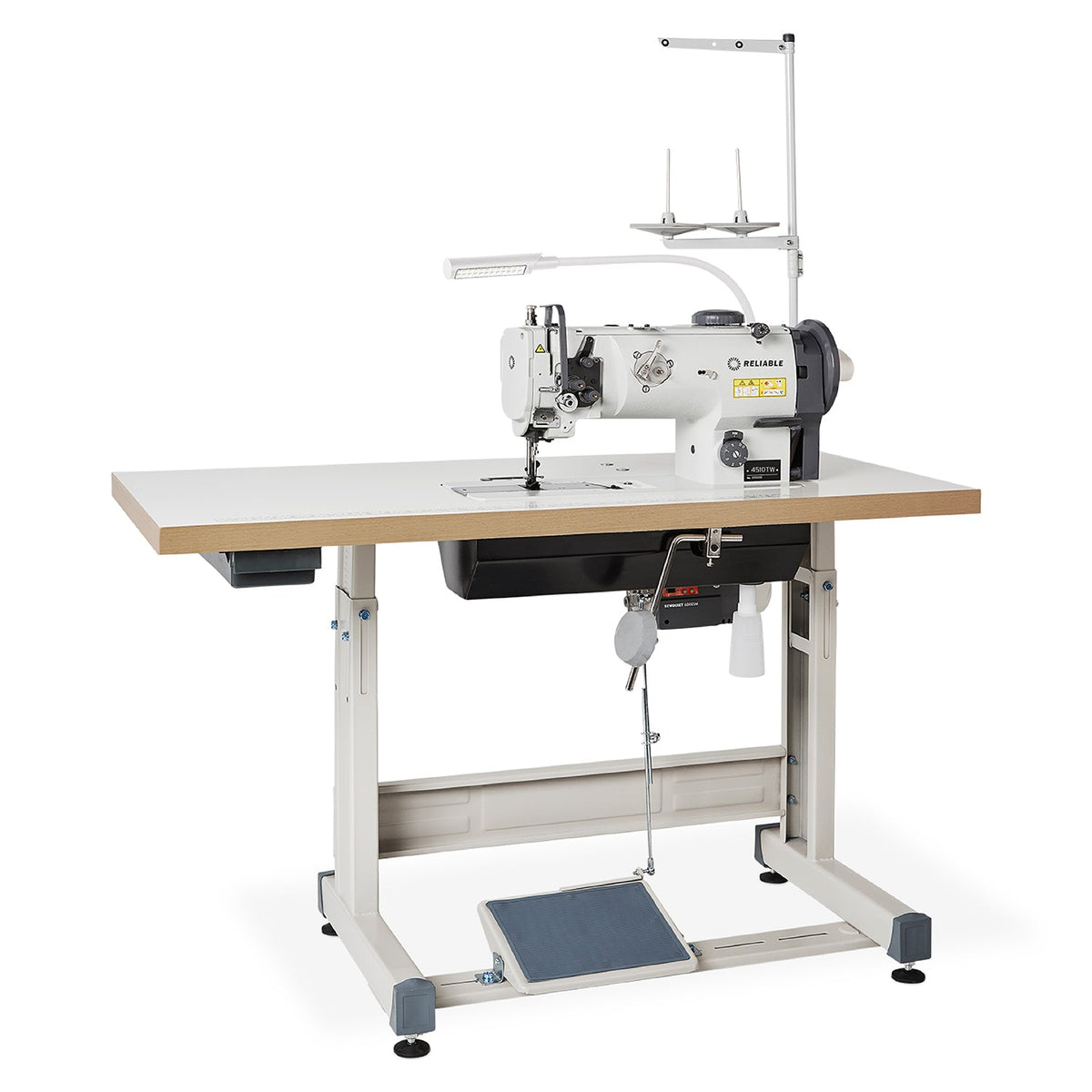

Includes the machine head, SewQuiet servo motor with synchronizer, UberLight Flex sewing light, heavy-duty industrial table and adjustable stand. The unit ships fully assembled, technician-tested and sewn off.

Freight delivery

This machine drop-ships from Reliable on a pallet. A flat $500 LTL freight charge applies; expedited parcel shipping is not available. Contact Sew Nation USA before ordering if you need help confirming needle gauge, edge-guide configuration, delivery access or financing options.

Verified specifications

Machine type: two-needle walking foot compound-feed lockstitch
Needle system: 135 × 17
Needle gauge: 1/4 inch standard; other options available
Stitch length: 0–9 mm
Needle bar stroke: 36 mm
Foot lift: 8 mm
Maximum speed: 2,000 RPM
Electrical: 110/120V, 60 Hz
Head dimensions: 22 × 7 × 10 in. (55.9 × 17.8 × 25.4 cm)
Table dimensions: 47.5 × 21.75 × 30 in. (119.63 × 55.25 × 76.2 cm)
Pallet dimensions: 48 × 40 × 40 in. (121.9 × 101.6 × 101.6 cm)

Key Features

• Two-needle compound feed for stable twin-row stitching

• Standard 1/4-inch needle gauge; other gauges available

• 0–9 mm stitch length and 8 mm foot lift

• Drop-in bobbin, automatic bobbin winder and safety clutch

• SewQuiet servo motor with synchronizer

• Ships fully assembled, tested and sewn off

Warranty

Backed by Reliable's standard one-year limited warranty against defects in materials and workmanship. Warranty coverage is subject to the manufacturer's written terms and exclusions.

Sew Nation USA can assist with warranty coordination and product support.

Additional Information

Best for: parallel topstitching and reinforced twin-row seams in leather, upholstery, marine canvas and technical textiles.

Delivery: drop-ships from Reliable on a pallet via LTL freight. A flat $500 freight charge applies; expedited parcel shipping is unavailable.

The machine arrives fully assembled, tested and sewn off. Attach the thread stand, follow the oiling instructions and confirm electrical/service access before operation.

Contact Sew Nation USA before ordering for needle-gauge selection, delivery-access questions or financing assistance.

Included Accessories

• Reliable 4510TW machine head

• SewQuiet servo motor with synchronizer

• UberLight Flex sewing light

• Heavy-duty industrial table top

• Adjustable industrial stand and foot control

• Automatic bobbin winder

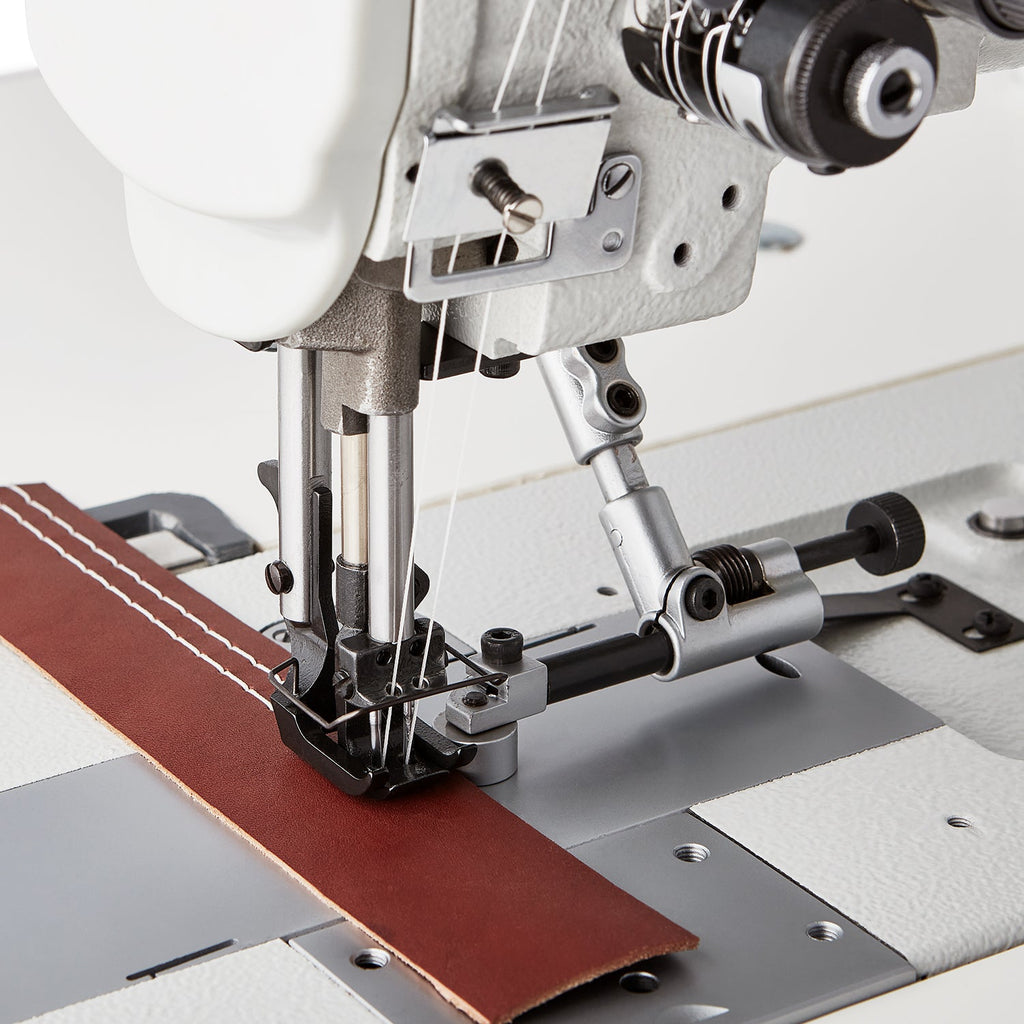

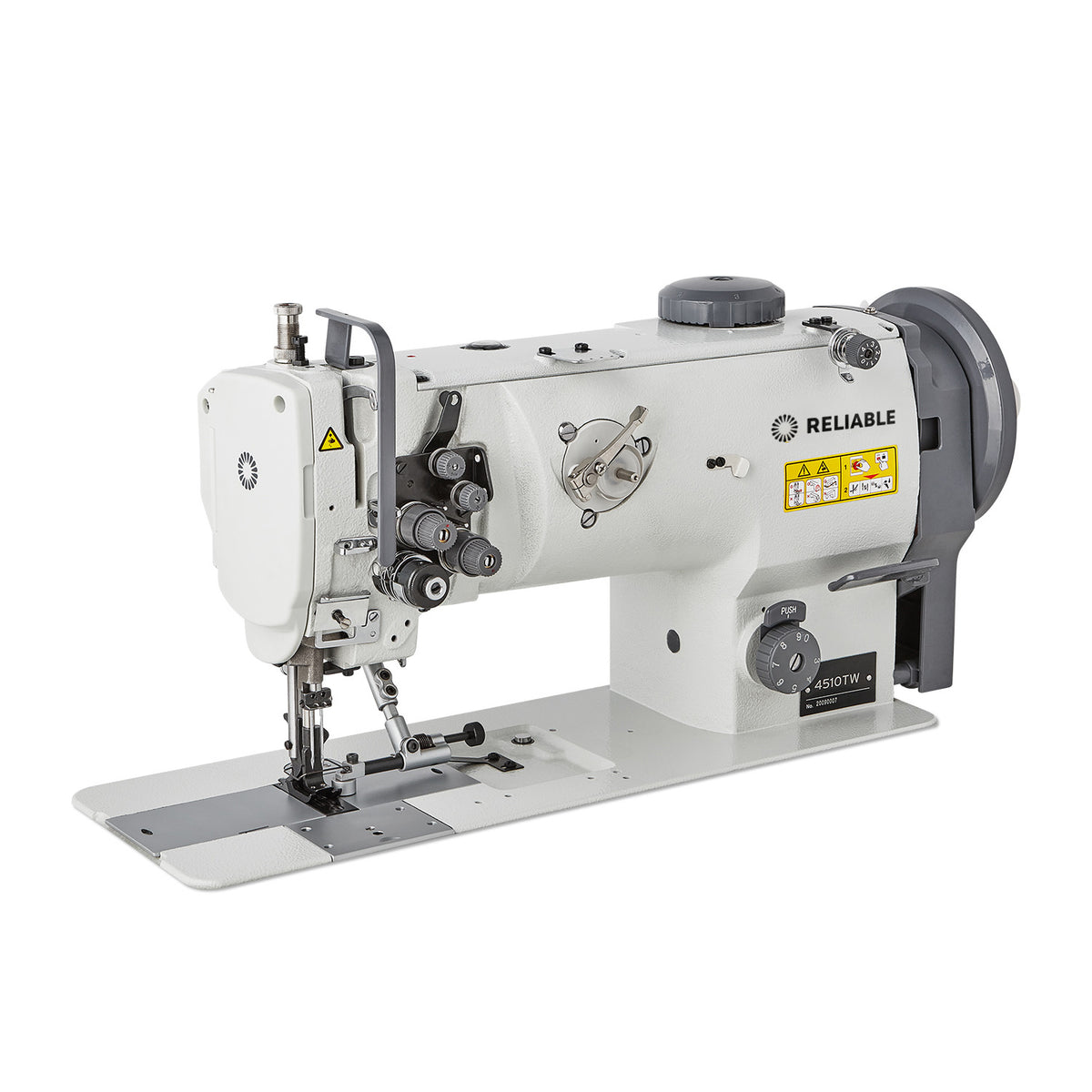

• Roll edge guide when the guide-equipped variant is selected

• Technician assembly, testing and sew-off

Specifications

Machine type: two-needle walking foot compound-feed lockstitch

Needle system: 135 × 17

Needle gauge: 1/4 inch standard; other options available

Stitch length: 0–9 mm

Needle bar stroke: 36 mm

Foot lift: 8 mm

Maximum speed: 2,000 RPM

Electrical: 110/120V, 60 Hz

Head dimensions: 22 × 7 × 10 in. (55.9 × 17.8 × 25.4 cm)

Table dimensions: 47.5 × 21.75 × 30 in. (119.63 × 55.25 × 76.2 cm)

Pallet dimensions: 48 × 40 × 40 in. (121.9 × 101.6 × 101.6 cm)
