Reliable 4500CW Cylinder-Bed Walking-Foot Industrial Sewing Machine

SKU: 39643

$3,799.00

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

Compound-feed control for bags, cushions and curved assemblies

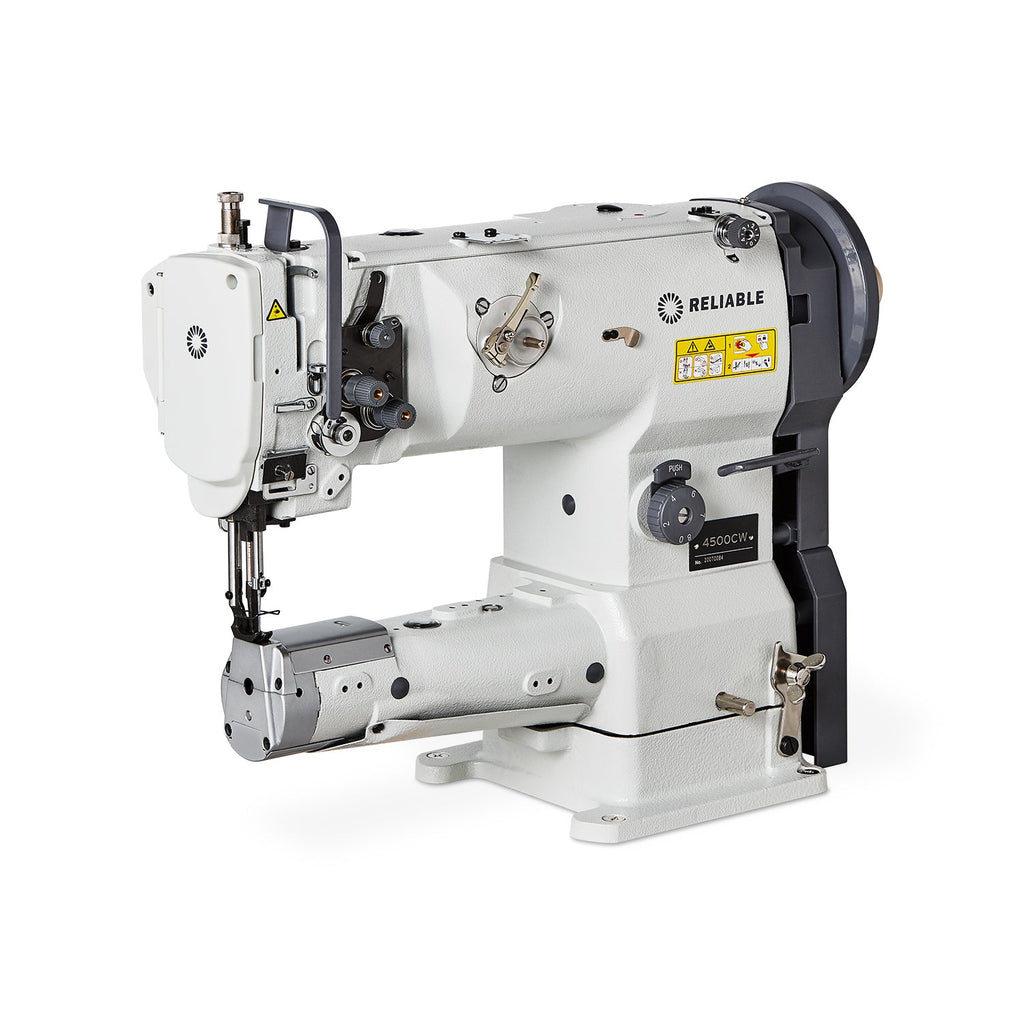

The Reliable 4500CW combines a narrow 47 mm cylinder bed with a single-needle lockstitch compound-feed walking-foot system. It is designed for medium- to heavyweight leather, upholstery, canvas and synthetics—especially work that is awkward to manipulate on a flat bed.

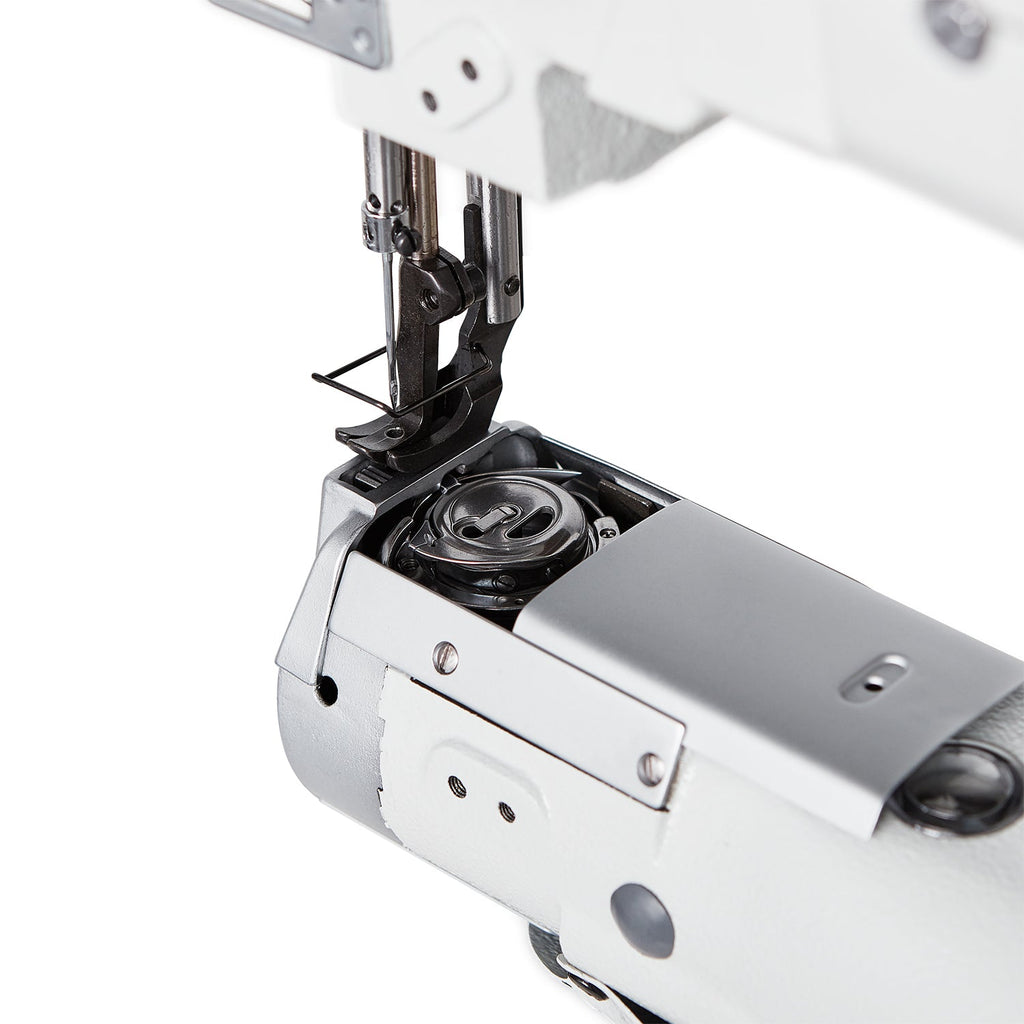

A large take-up mechanism with dual tension adjustments supports demanding thread and material combinations. The drop-in bobbin is easy to access, while the SewQuiet servo motor and synchronizer provide controlled operation and programmable needle positioning for corner work.

47 mm / 1.85-inch cylinder bed for bags, cushions, sleeves and curved or tubular components

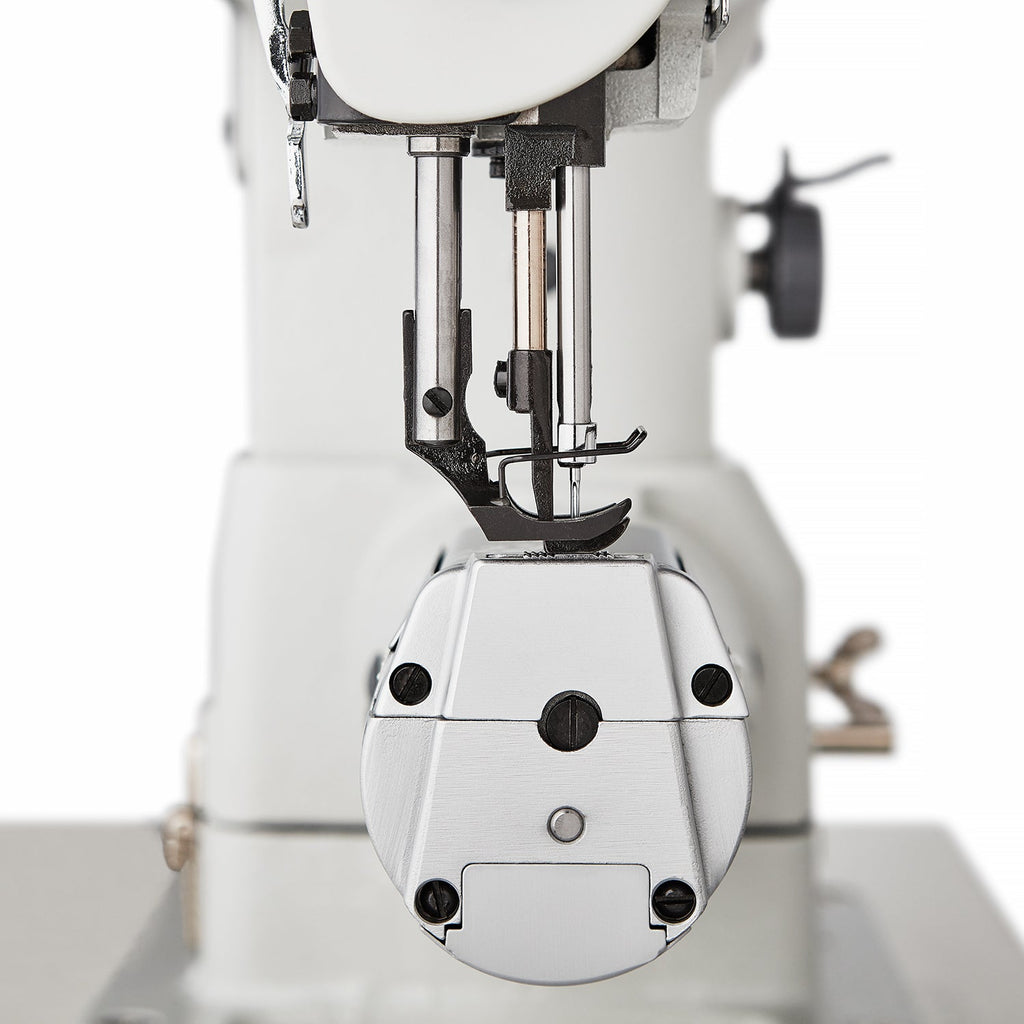

Compound-feed walking foot for consistent feeding through layered heavy materials

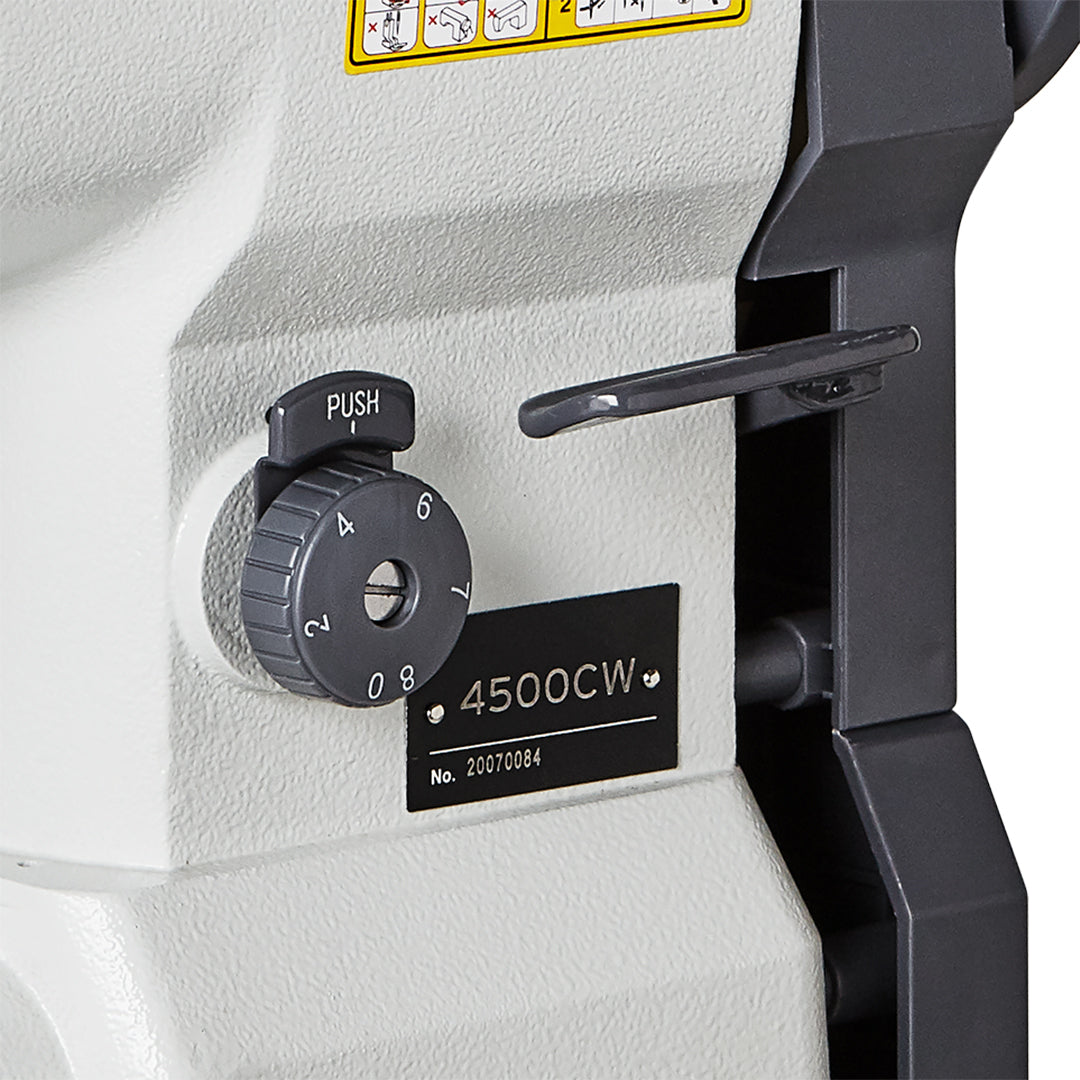

0–10 mm stitch-length adjustment with reverse lever

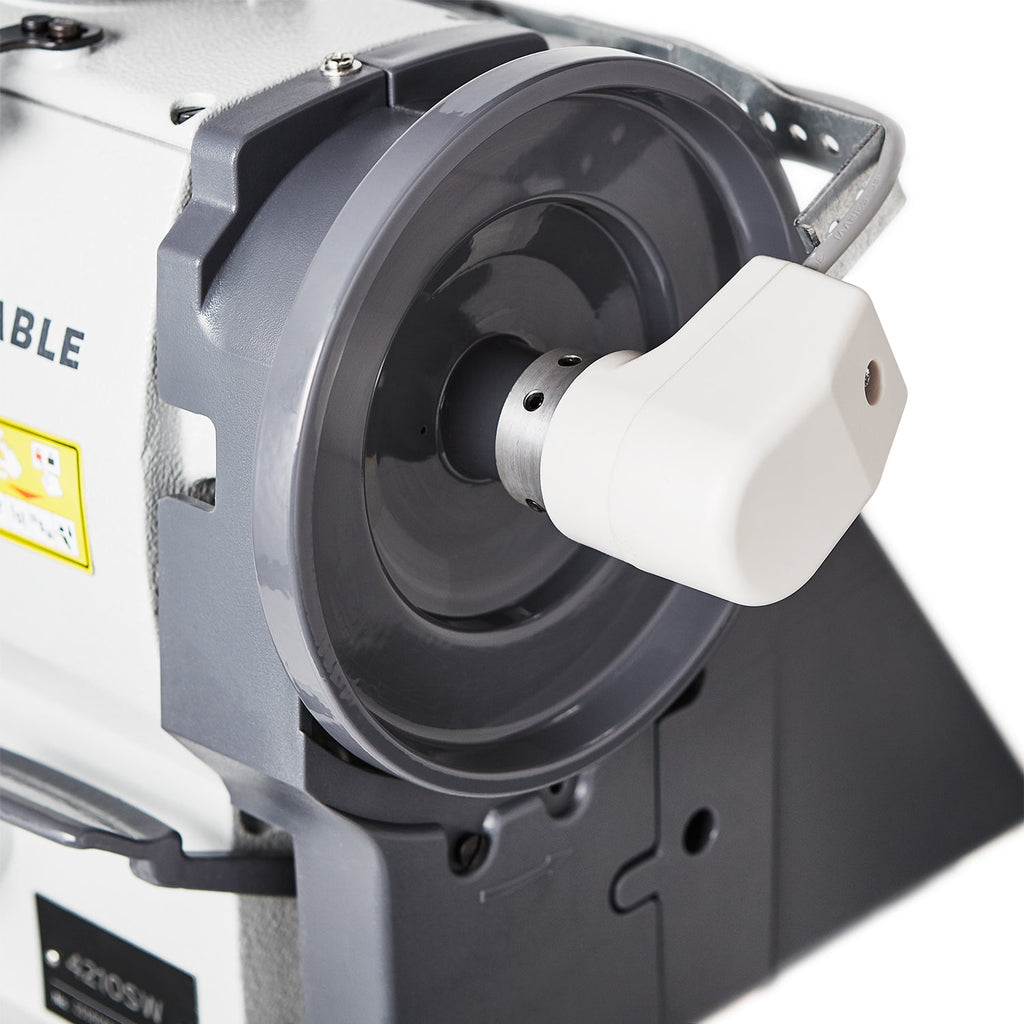

SewQuiet servo motor with synchronizer for needle-up or needle-down positioning

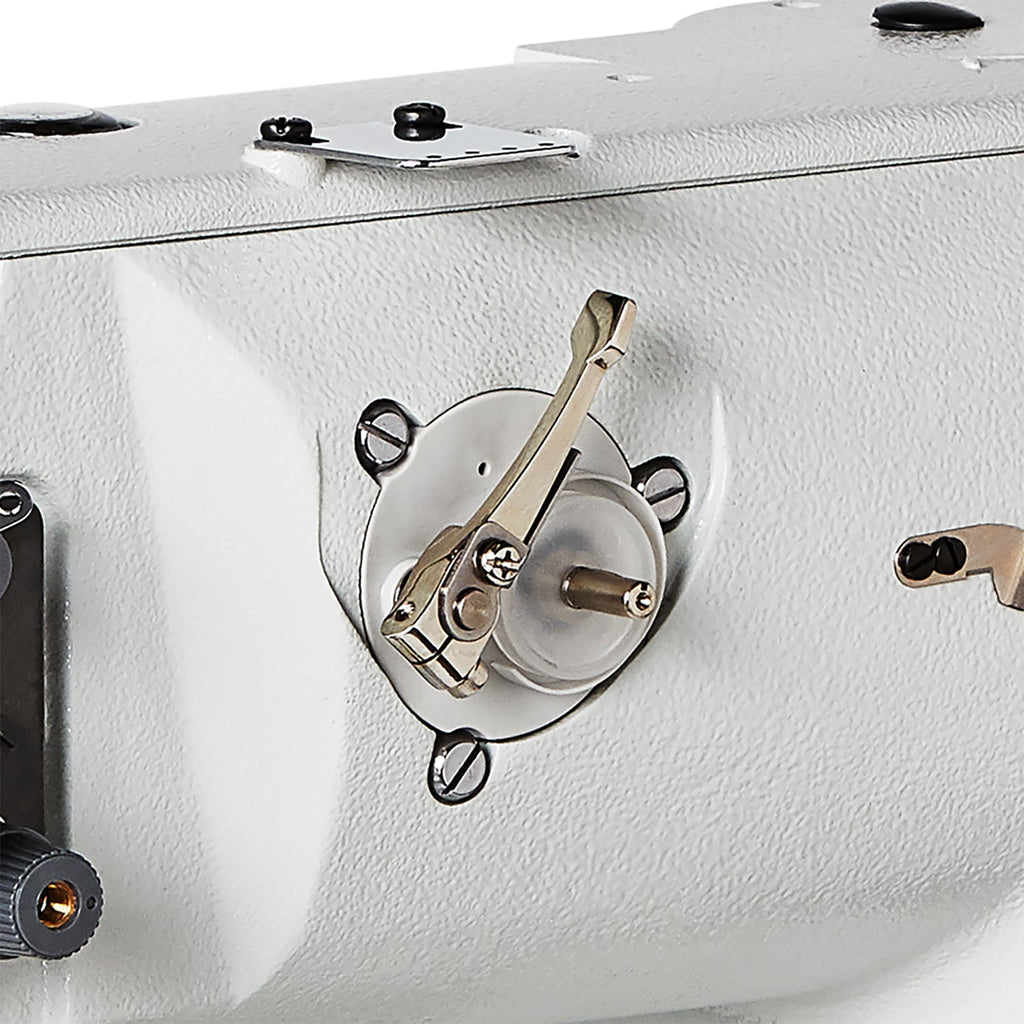

Foot-height adjuster, automatic lubrication and built-in bobbin winder

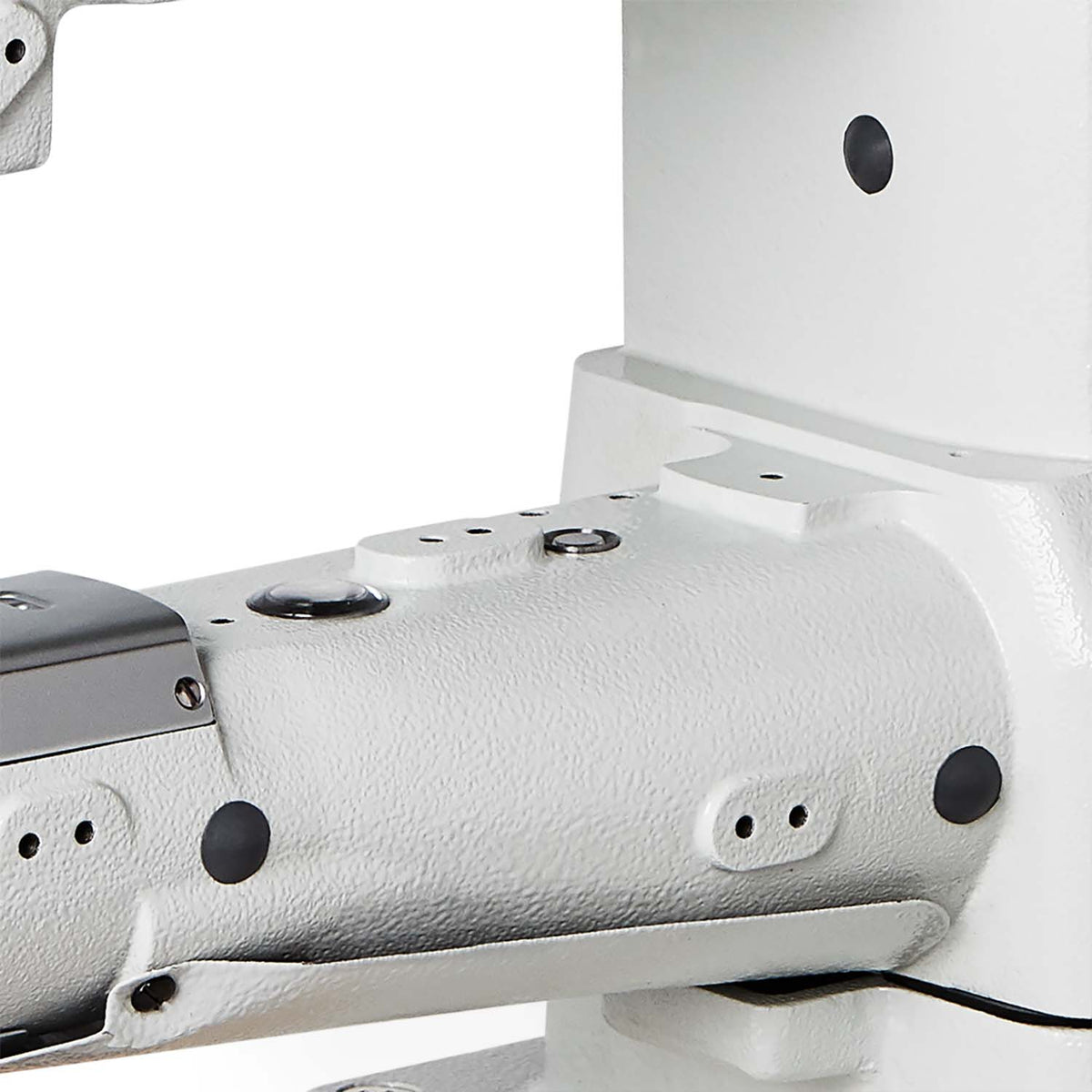

Safety clutch helps protect the lower drive during thread jams

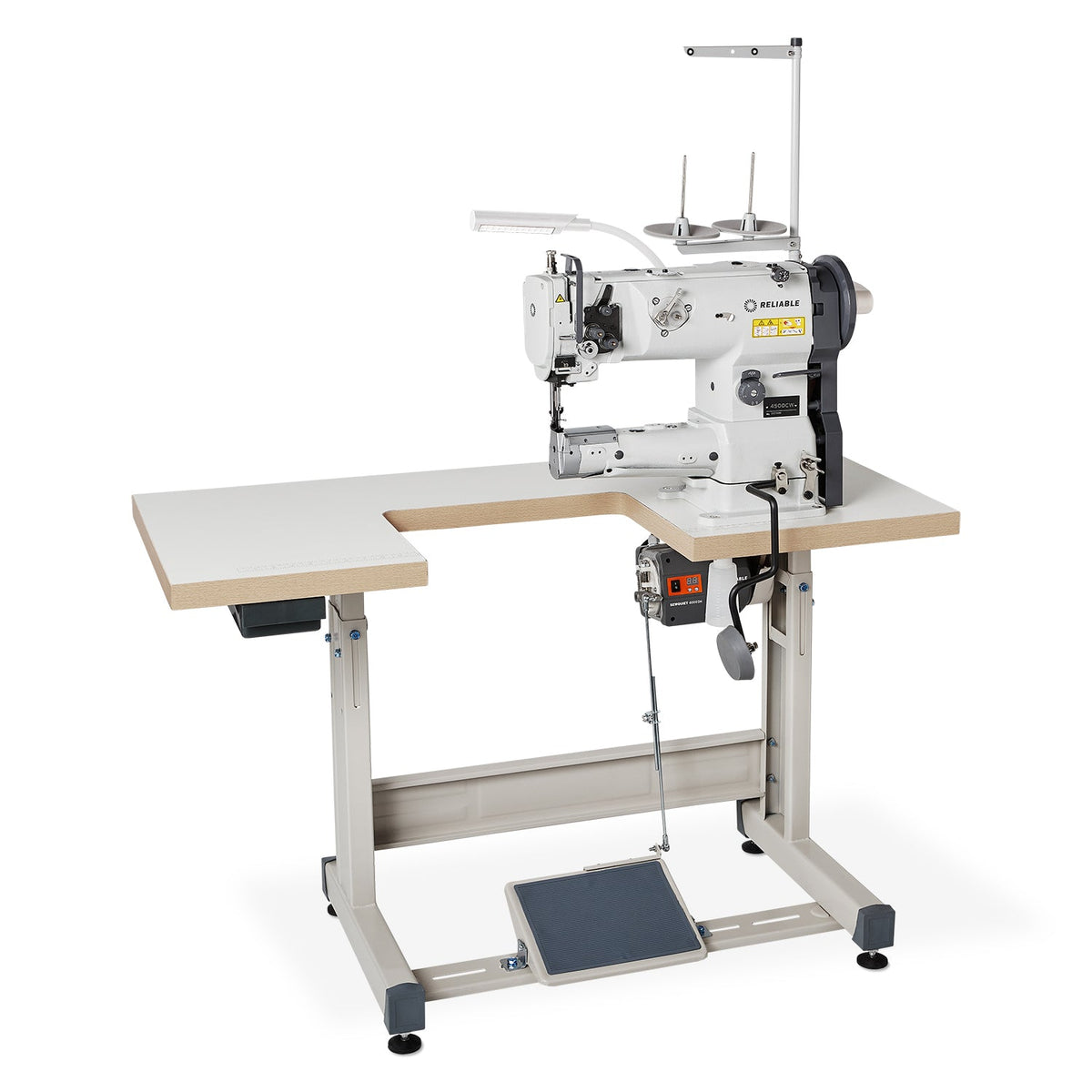

Complete package ships assembled, tested and sewn off with table, stand and UberLight Flex light

Best for

Leather-goods and bag shops, upholstery and cushion workrooms, marine-canvas operations, footwear and other production environments sewing curved, tubular or three-dimensional assemblies.

Included

Reliable 4500CW machine head
SewQuiet servo motor with synchronizer
Industrial plywood tabletop and heavy-duty steel stand
UberLight Flex LED sewing light
Built-in automatic bobbin winder
Roller-edge guide only when the With Roller-Edge Guide configuration is selected
Machine ships fully assembled, tested and sewn off

Verified specifications

Machine type: single-needle lockstitch, cylinder-bed compound-feed walking foot
Maximum sewing speed: 2,500 RPM
Stitch length: 0–10 mm
Needle bar stroke: 33.4 mm
Needle system: 135 × 17
Presser-foot lift: 8.5 mm
Cylinder-bed diameter: 1.85 in / 47 mm
Electrical: 110–120V, 60 Hz
Head dimensions: 19 × 8 × 16 in / 48.3 × 20.3 × 40.6 cm
Table dimensions: 47.5 × 21.75 × 30 in / 119.63 × 55.25 × 76.2 cm
Pallet dimensions: 48 × 40 × 46 in / 121.9 × 101.6 × 116.8 cm

Drop shipped directly from Reliable. A $500 flat-rate LTL freight charge applies; delivery timing and access requirements are confirmed after order.

Key Features

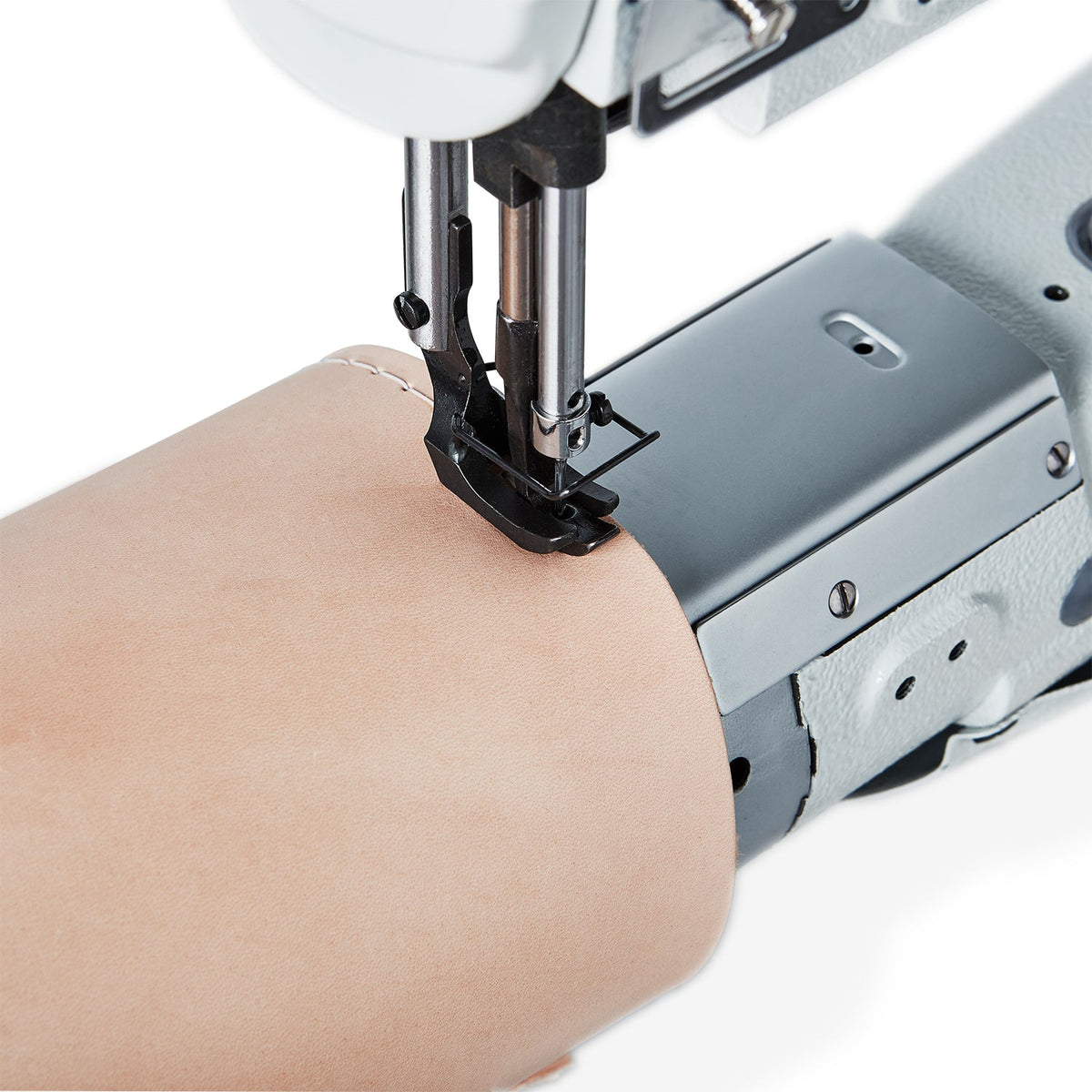

47 mm / 1.85-inch cylinder bed provides access around bags, cushions, sleeves and other curved assemblies.

Compound-feed walking foot controls layered and difficult materials.

SewQuiet servo motor and synchronizer support controlled speed and programmable needle up/down positioning.

Large take-up mechanism with dual tension adjustments and an accessible drop-in bobbin.

0–10 mm stitch-length adjustment, reverse lever, foot-height adjuster and built-in bobbin winder.

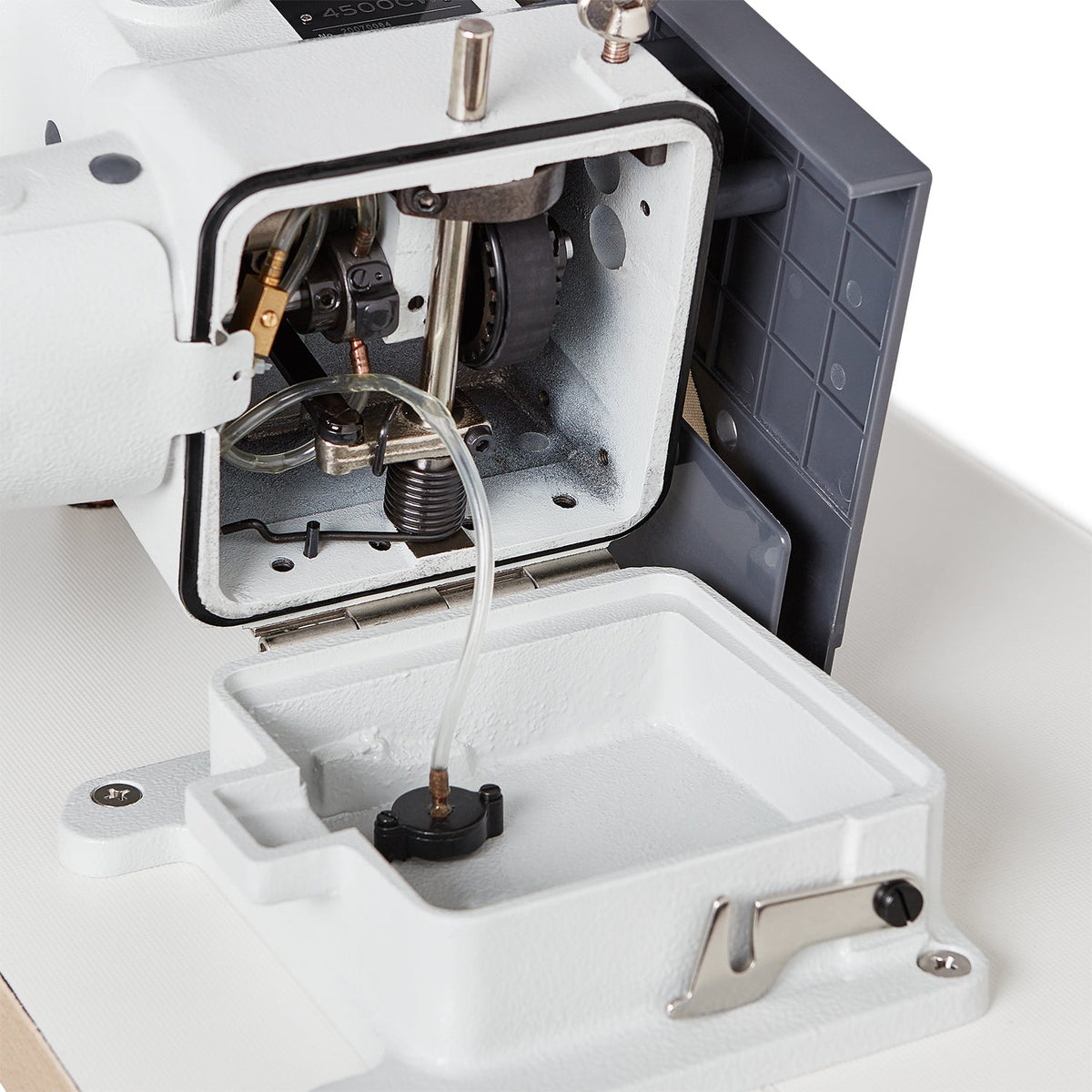

Automatic lubrication and a safety clutch that disengages the lower drive during a jam.

Complete package includes table, heavy-duty stand and UberLight Flex sewing light.

Warranty

Covered by Reliable Corporation’s standard limited warranty. Warranty coverage, exclusions and claim procedures are governed by the linked manufacturer warranty document.

Additional Information

Ships by LTL freight for a flat $500 charge. Expedited shipping is unavailable.

Reliable fulfills this complete industrial package for Sew Nation USA. The machine ships assembled, tested and sewn off.

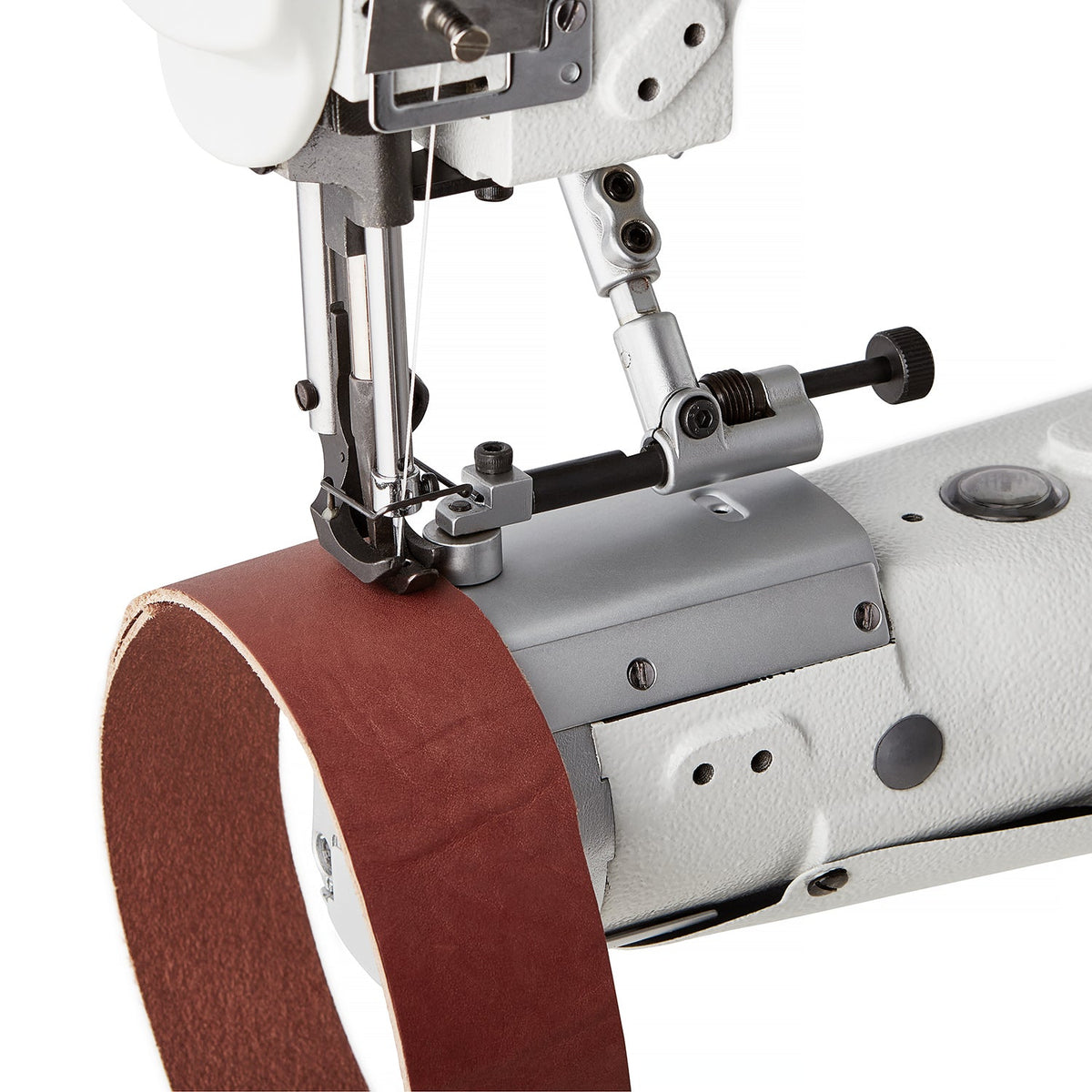

Choose the roller-edge-guide configuration when a mechanical guide will improve seam consistency on repeat work.

Included Accessories

Reliable 4500CW machine head

SewQuiet servo motor with synchronizer

Industrial plywood tabletop and heavy-duty steel stand

UberLight Flex LED sewing light

Built-in automatic bobbin winder

Roller-edge guide only when the With Roller-Edge Guide configuration is selected

Machine ships fully assembled, tested and sewn off

Specifications

Machine type: single-needle lockstitch, cylinder-bed compound-feed walking foot

Maximum sewing speed: 2,500 RPM

Stitch length: 0–10 mm

Needle bar stroke: 33.4 mm

Needle system: 135 × 17

Presser-foot lift: 8.5 mm

Cylinder-bed diameter: 1.85 in / 47 mm

Electrical: 110–120V, 60 Hz

Head dimensions: 19 × 8 × 16 in / 48.3 × 20.3 × 40.6 cm

Table dimensions: 47.5 × 21.75 × 30 in / 119.63 × 55.25 × 76.2 cm

Pallet dimensions: 48 × 40 × 46 in / 121.9 × 101.6 × 116.8 cm
