Reliable 2620ZW walking-foot zig-zag industrial sewing machine

Reliable 2620ZW Walking Foot Zig-Zag Industrial Sewing Machine

SKU: 40956
$2,699.00
Table Size

Shipping & Delivery — Freight

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

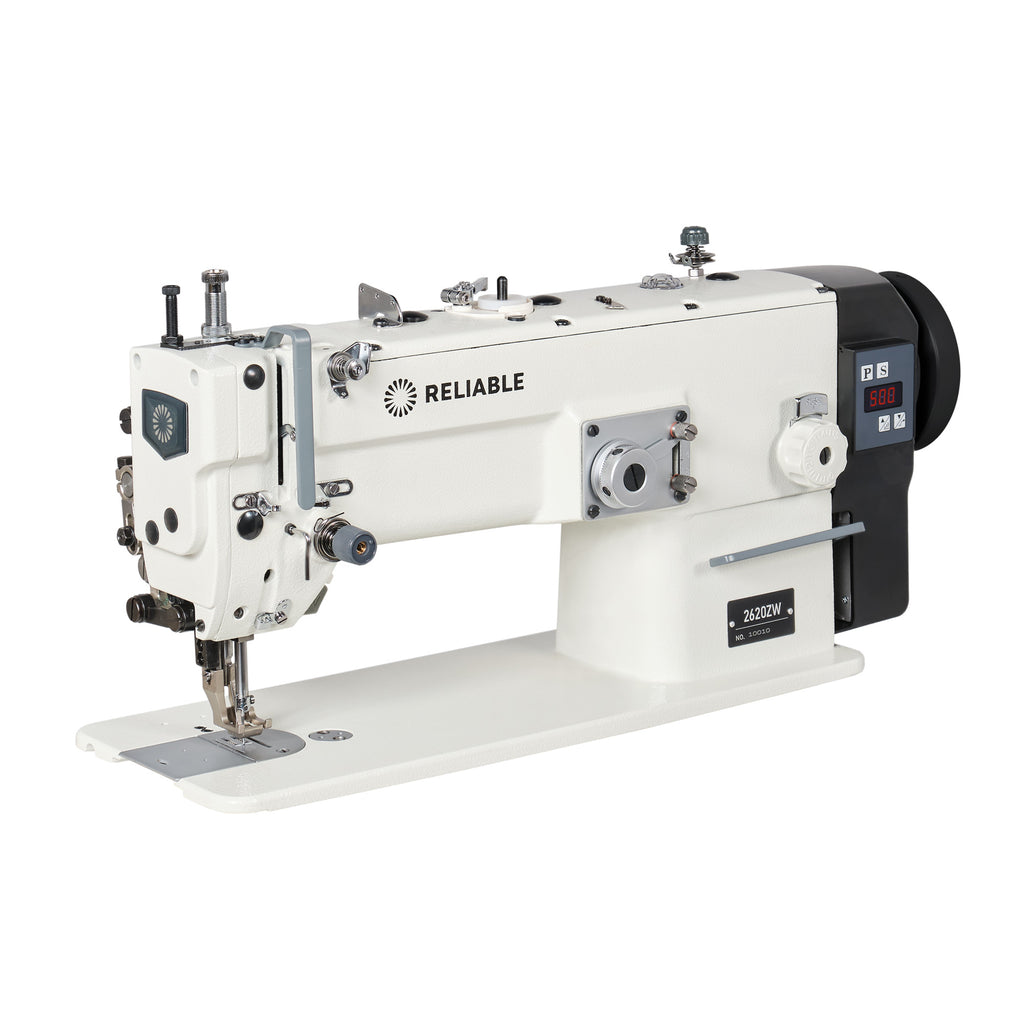

A complete walking-foot zig-zag package for demanding canvas, upholstery, marine, leather, and synthetic-material work. The Reliable 2620ZW combines straight and zig-zag stitching with a synchronized walking foot, large-capacity side-load bobbin, direct-drive motor, and precise digital speed control. It arrives as a professional industrial setup with your selected table size, heavy-duty stand, and an UberLight Flex sewing light.

Who It’s For

  • Marine canvas, sail, awning, upholstery, bag, and technical-textile shops
  • Professionals who need both straight and zig-zag stitching on heavier materials
  • Operators who want walking-foot feeding, a large bobbin, and controllable low-speed torque
  • Production environments that prefer a fully assembled, tested, and sewn-off package

Why the 2620ZW Stands Out

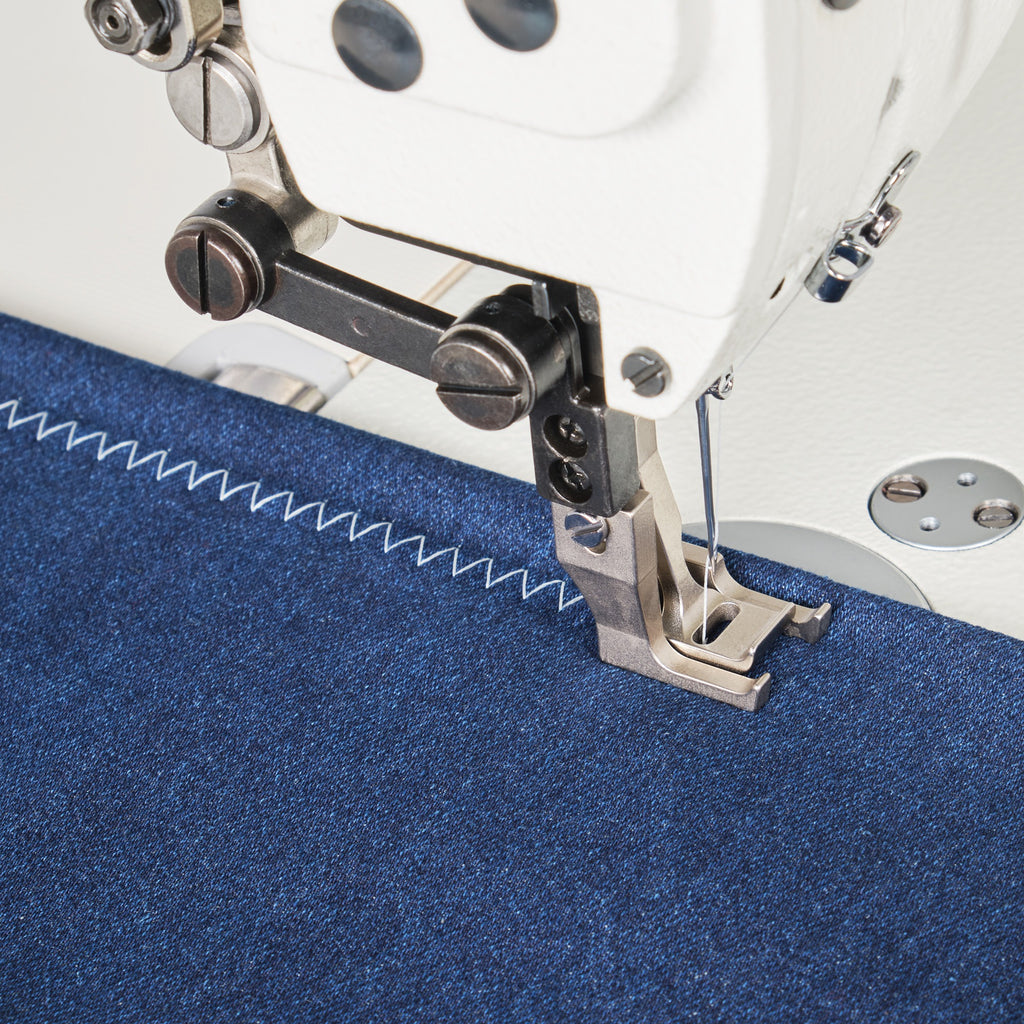

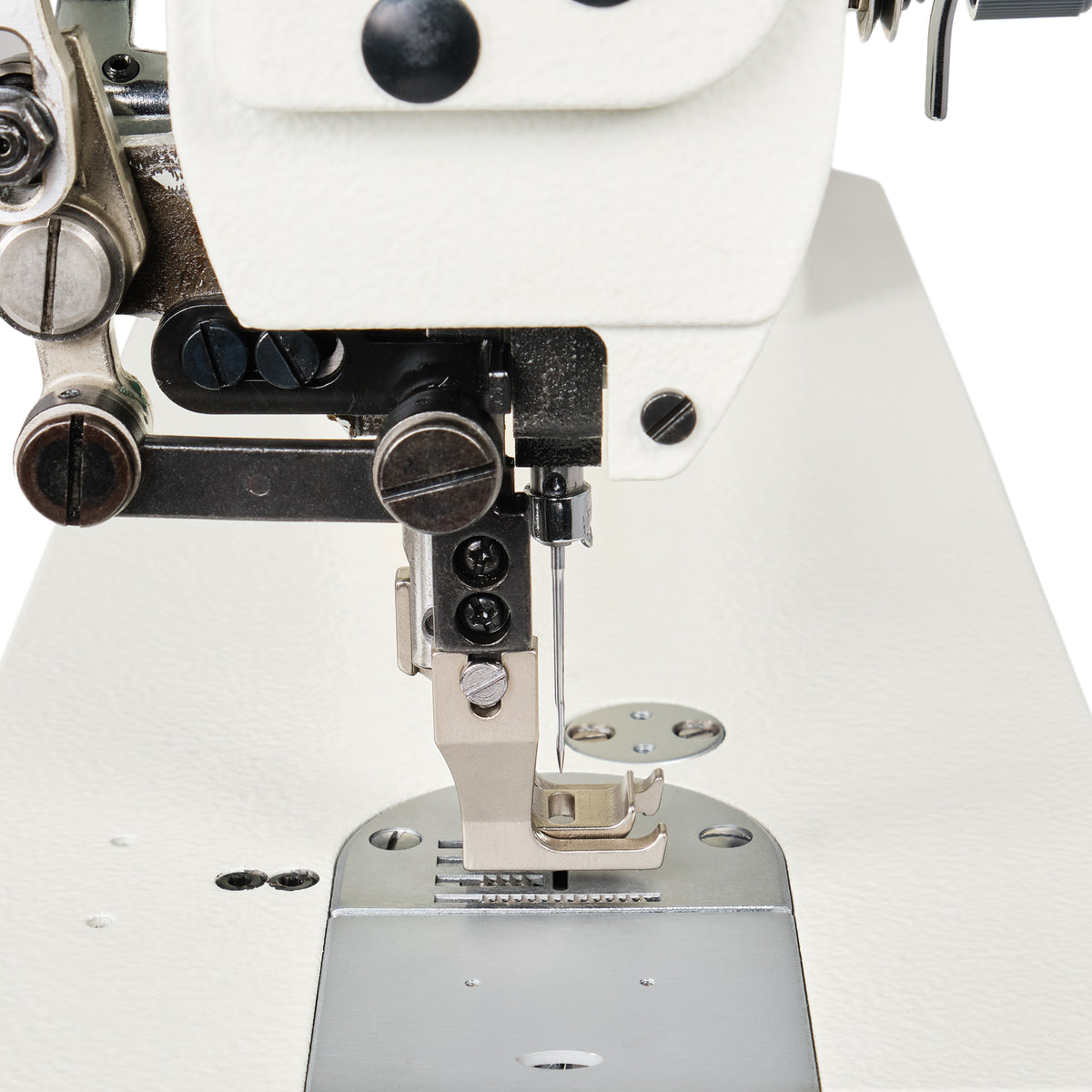

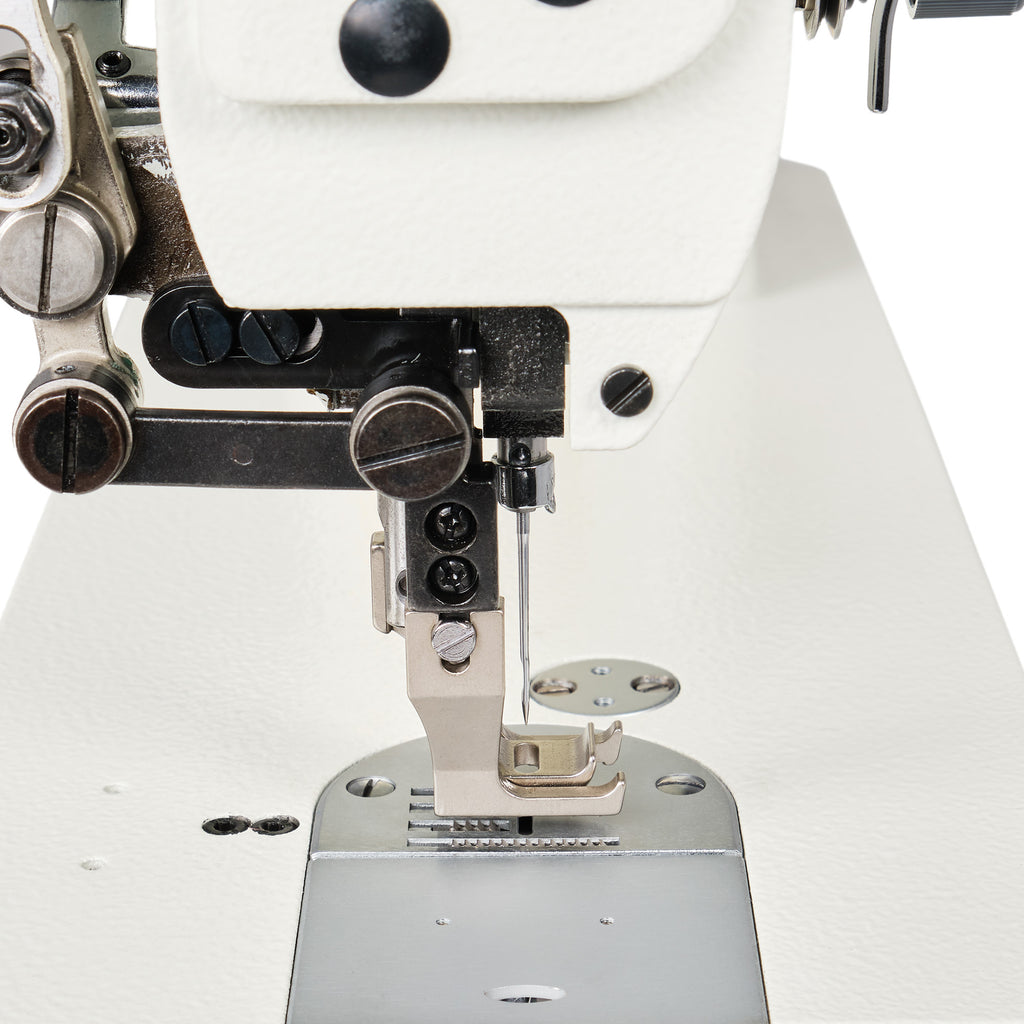

  • Walking-foot zig-zag feeding: Helps move layered and difficult materials evenly.

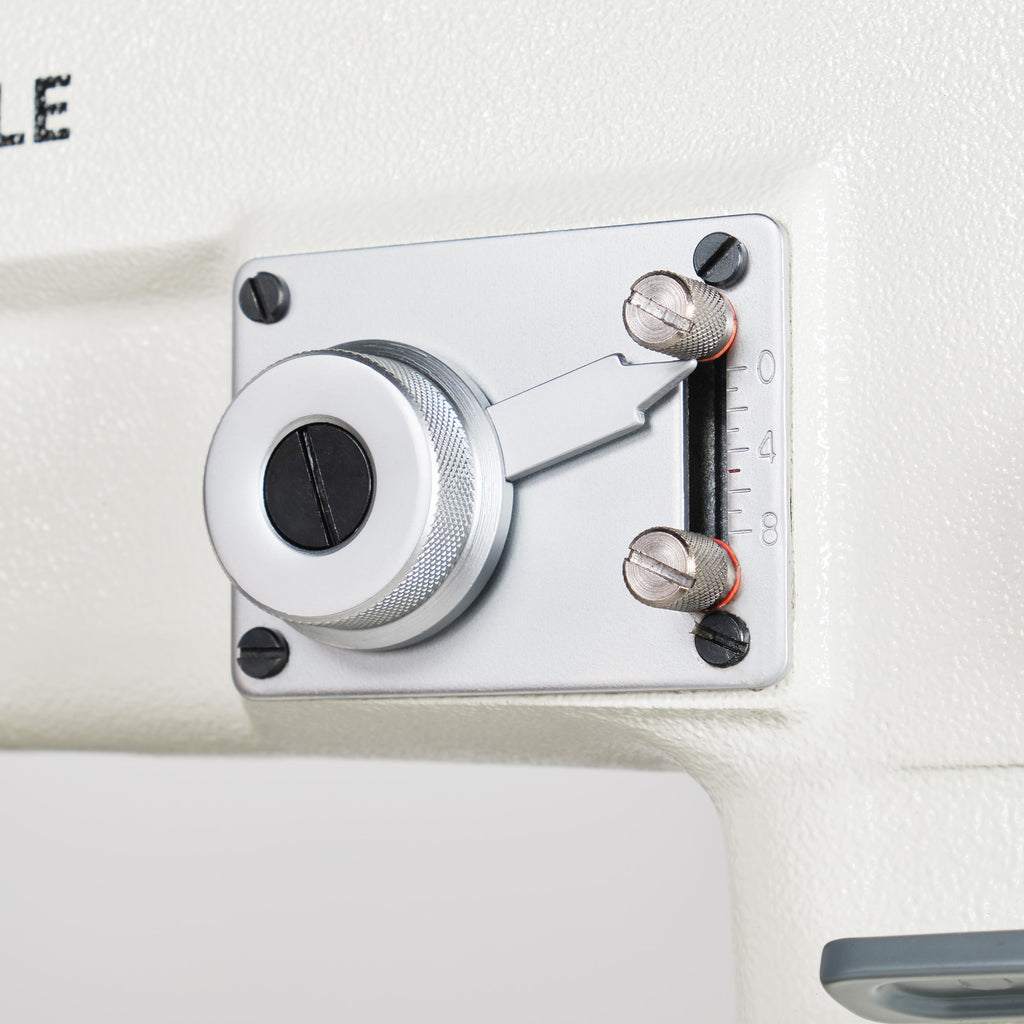

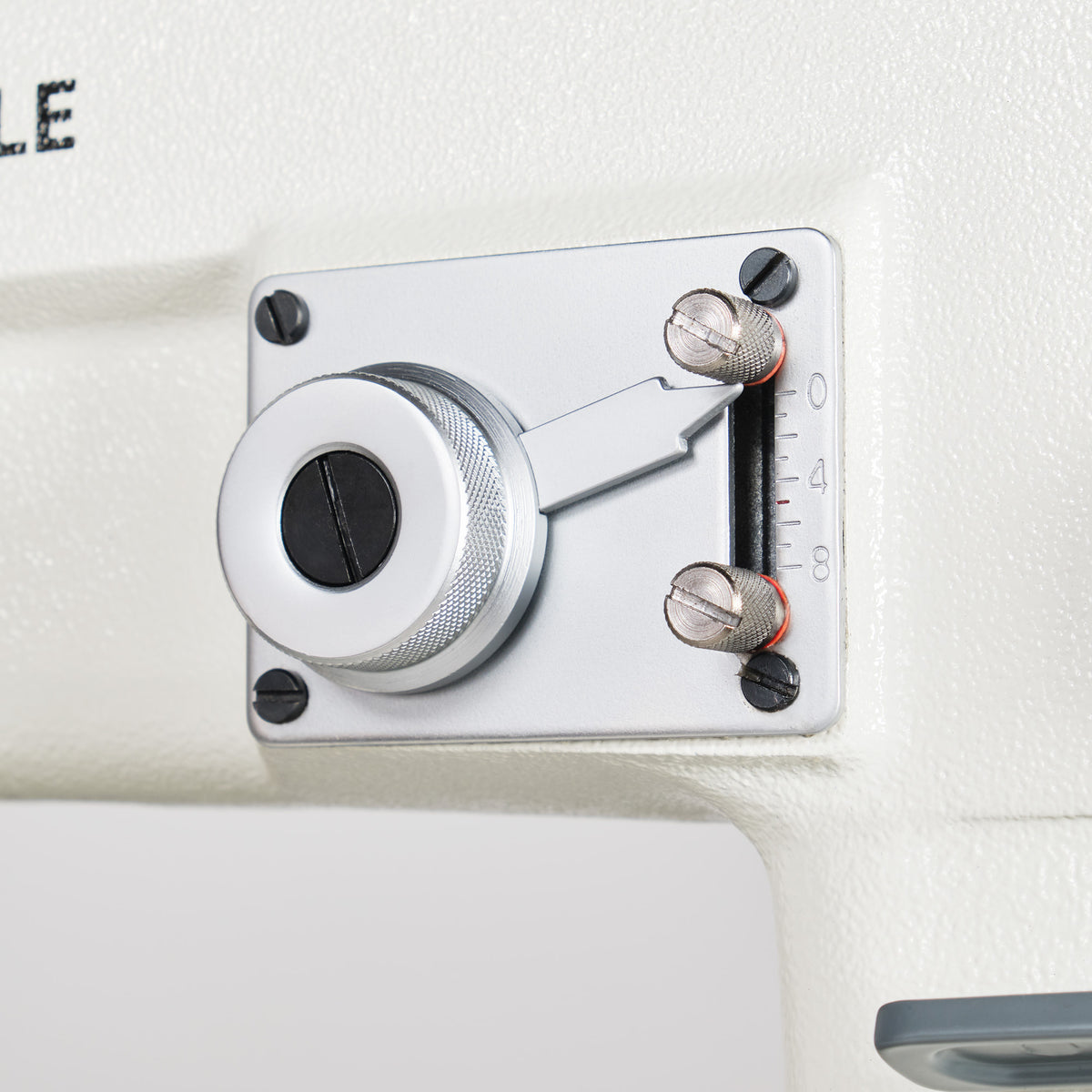

  • 0–9 mm zig-zag width: Adjust the stitch from straight sewing to a wide zig-zag.

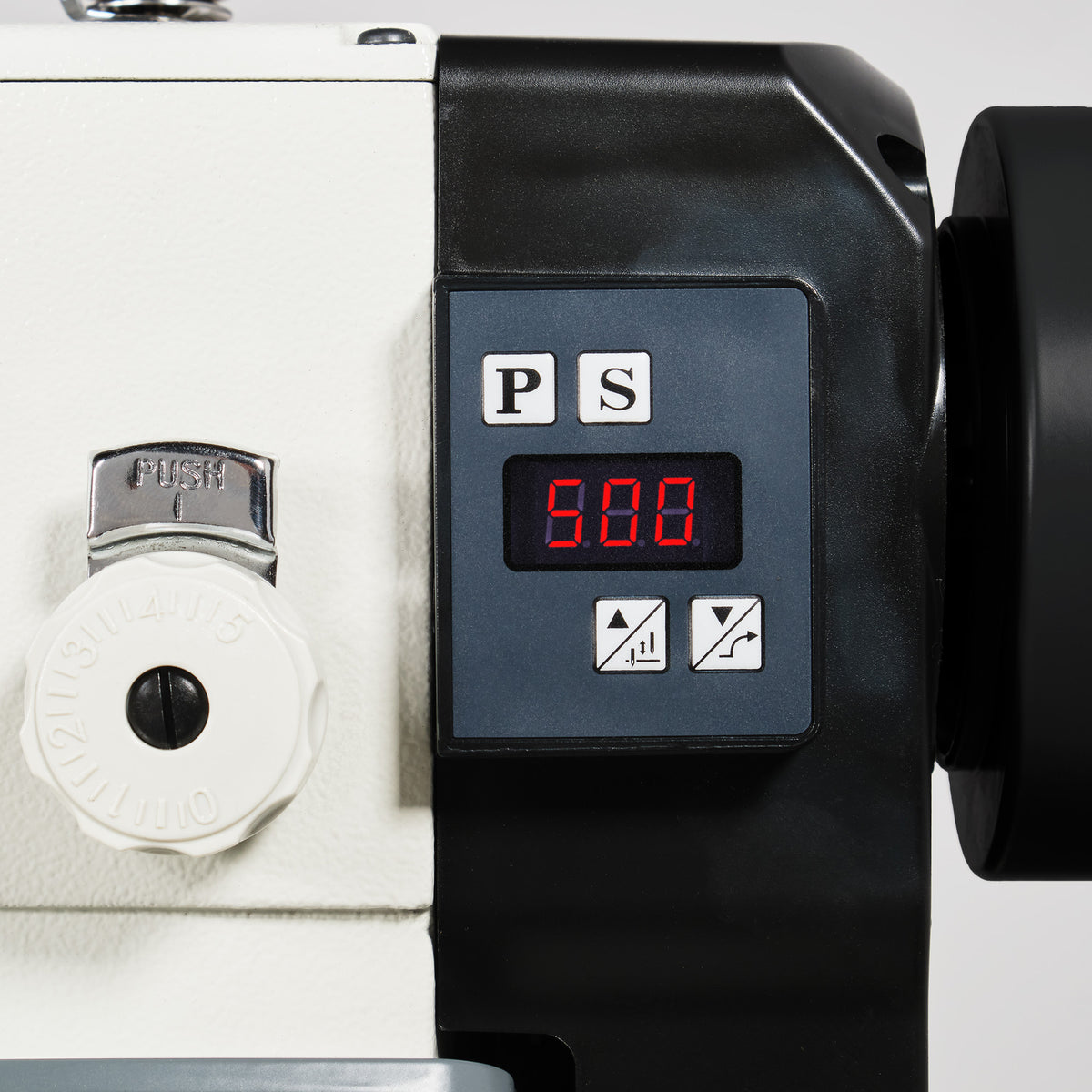

  • Direct-drive control: Digital speed adjustment, programmable needle position, smooth starts, and quiet operation without an under-table belt drive.

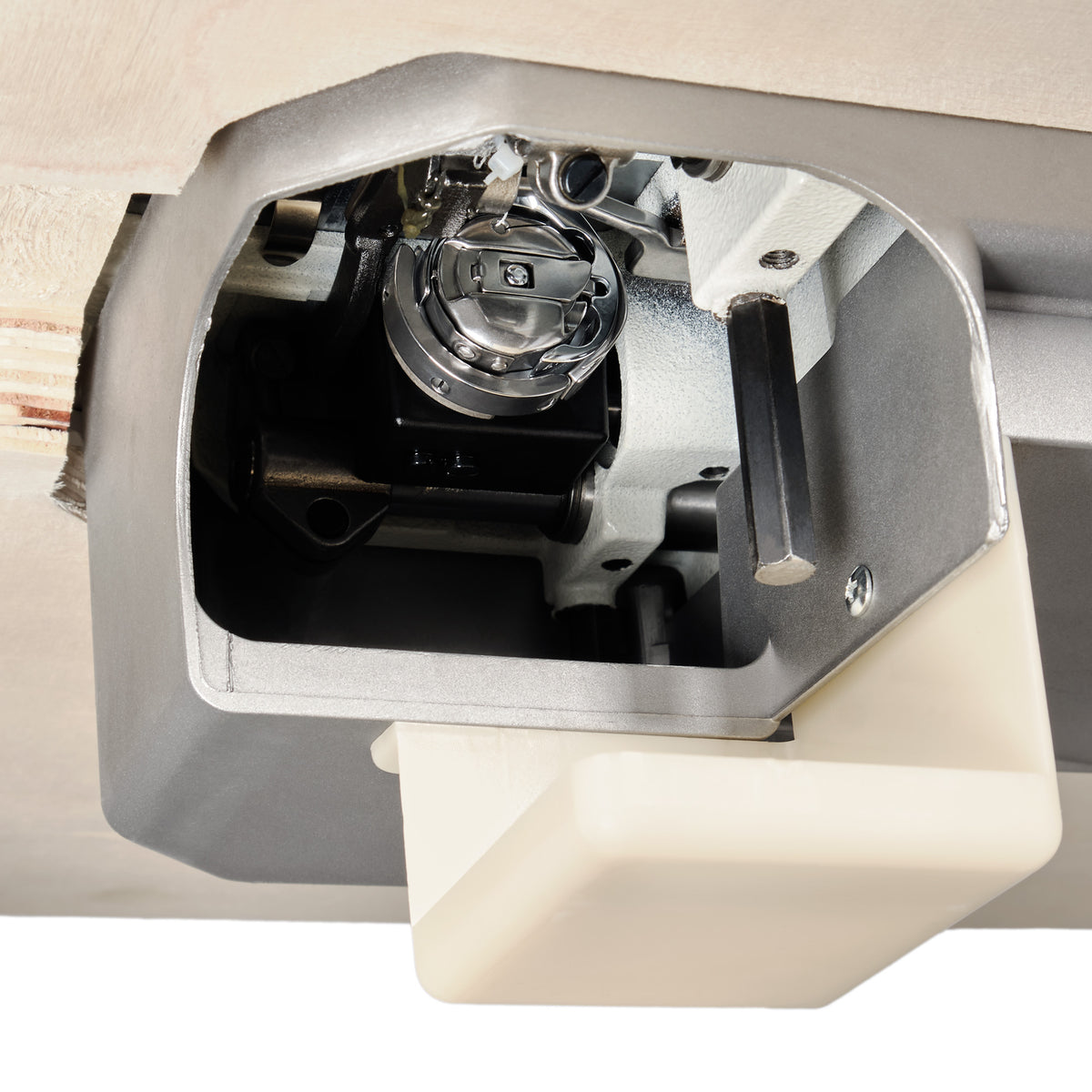

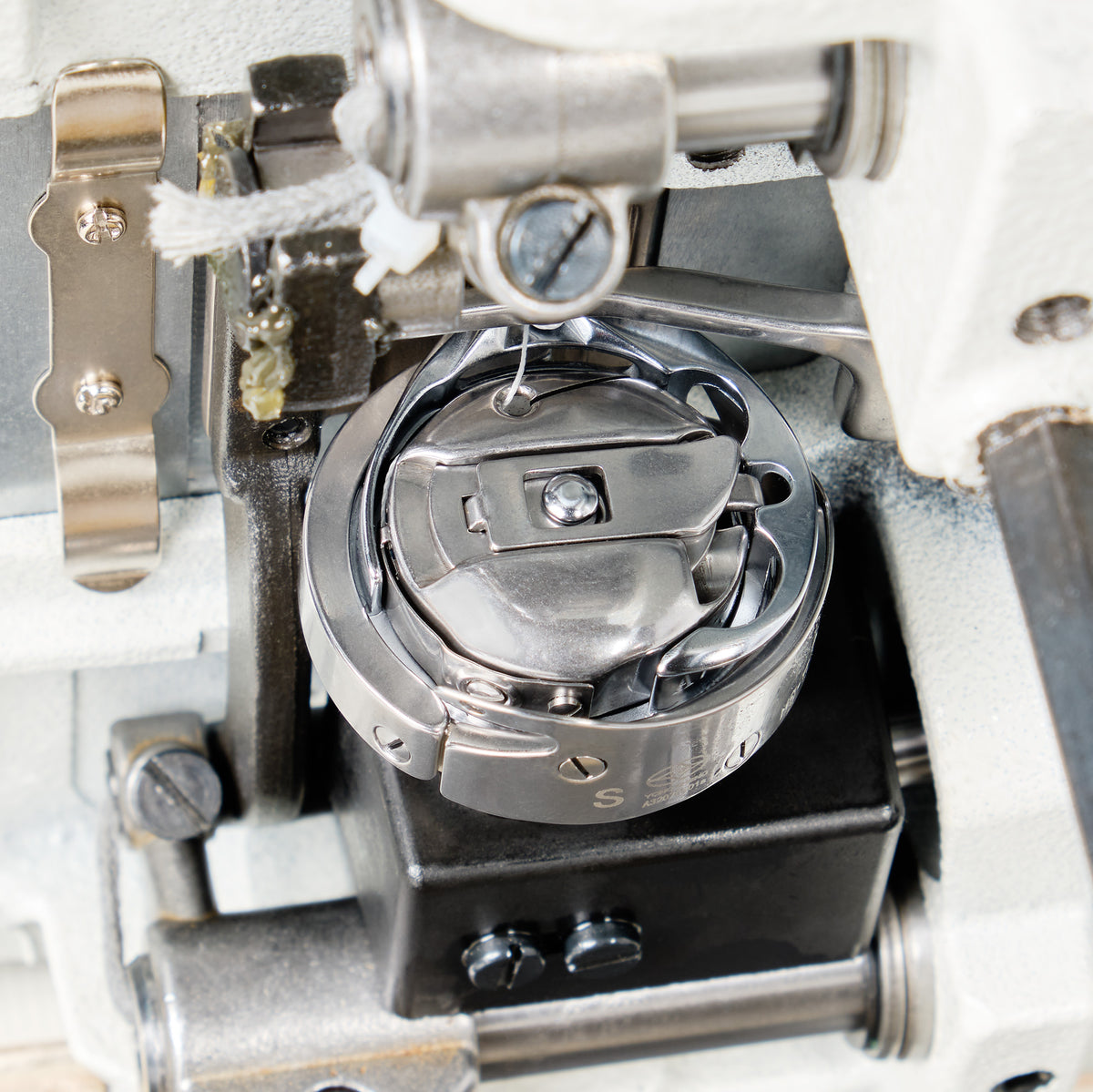

  • Large side-load bobbin: Fast access and more sewing between bobbin changes.

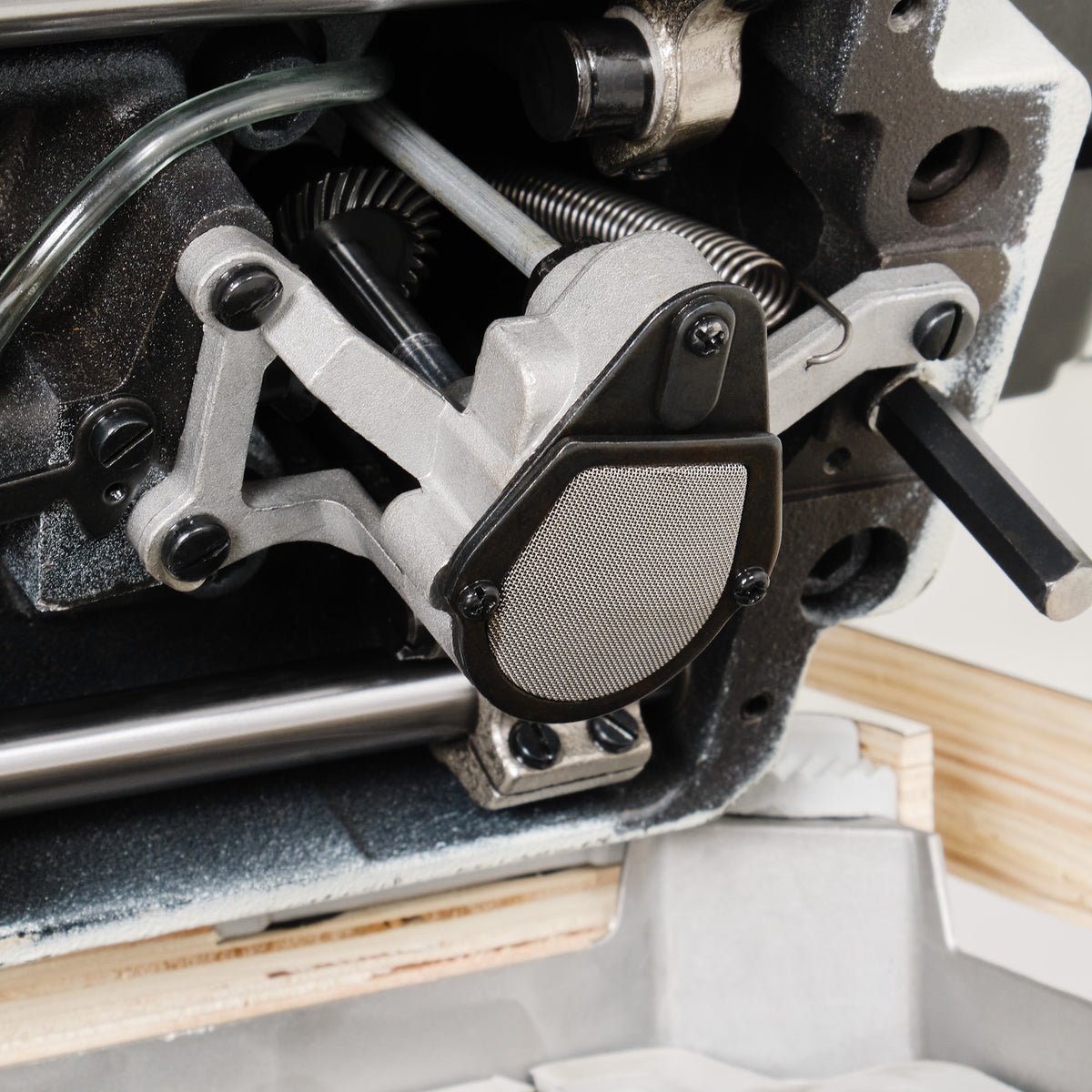

  • Semi-automatic lubrication: Supports smooth operation and long machine life.
  • No-Stain Seal: Helps protect materials around the needle-bar area.

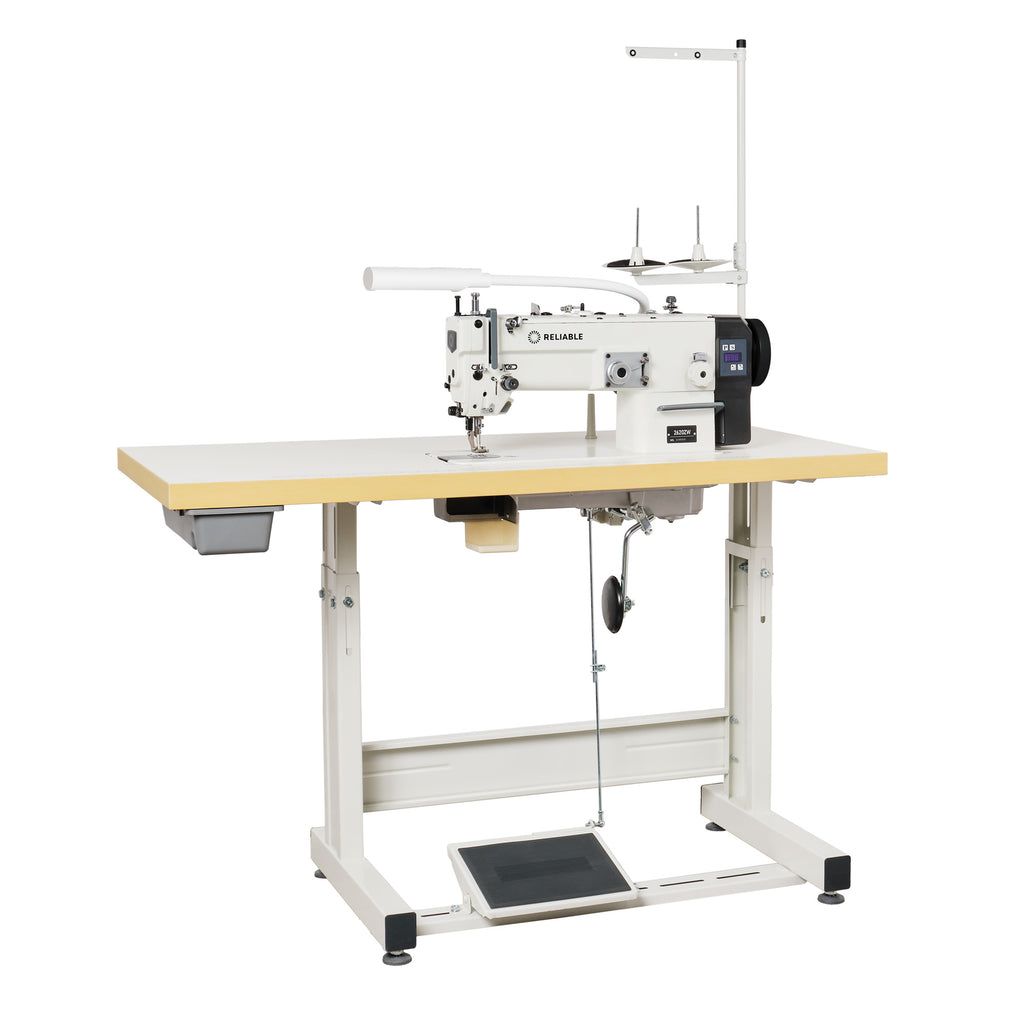

  • Complete professional package: Heavy-duty steel stand, plywood tabletop, integrated motor, and UberLight Flex LED light.

Specifications

Maximum speed 2,000 RPM
Stitch length 0–6 mm
Zig-zag width 0–9 mm
Presser-foot lift 8 mm
Needle system 135 × 17
Work space 10 in / 25.4 cm
Machine-head dimensions 20.5 × 7 × 14 in
Standard table dimensions 47.5 × 21.75 × 30 in
Electrical 110/120V, 60 Hz
Shipping pallet 48 × 40 × 44 in

Included

  • Reliable 2620ZW machine head
  • Integrated direct-drive motor and digital controls

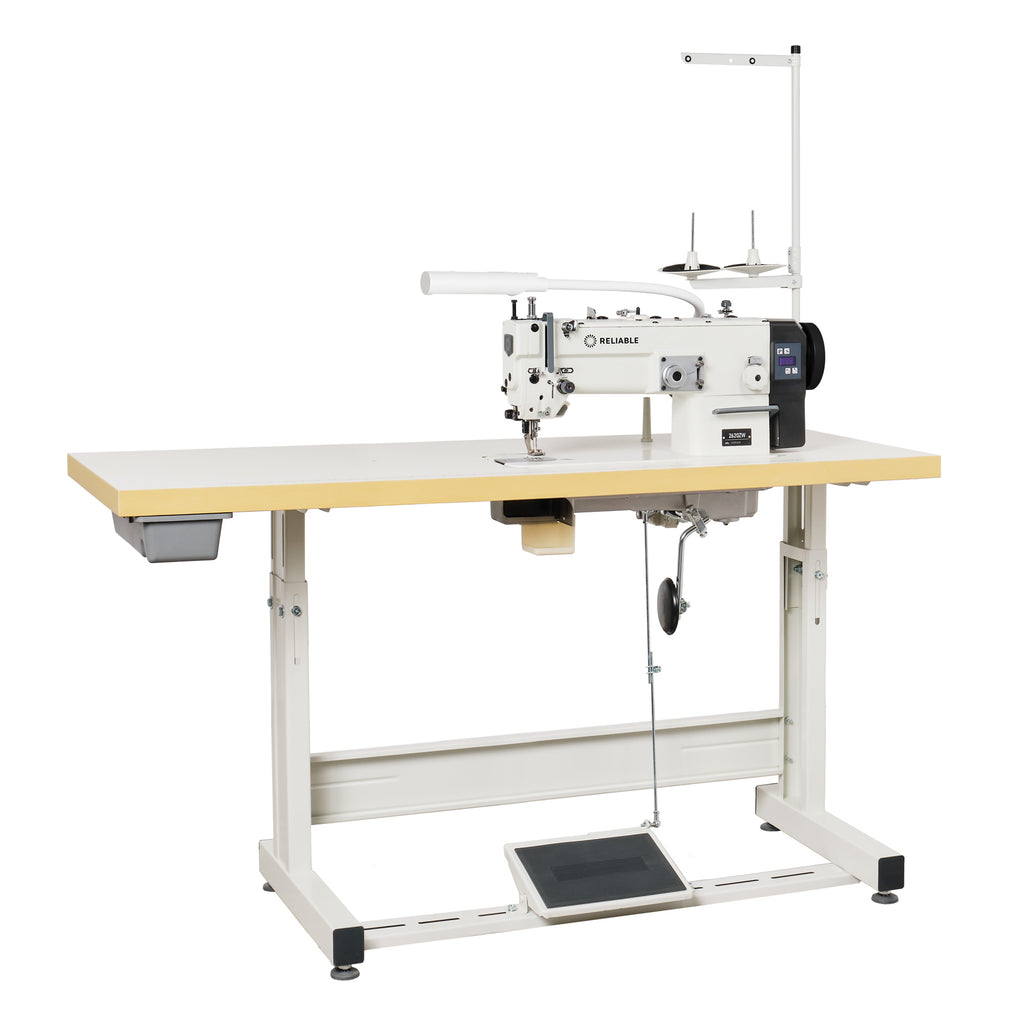

  • Your choice of standard or extra-large 24 × 60 in tabletop
  • Heavy-duty industrial stand and foot control
  • UberLight Flex LED sewing light

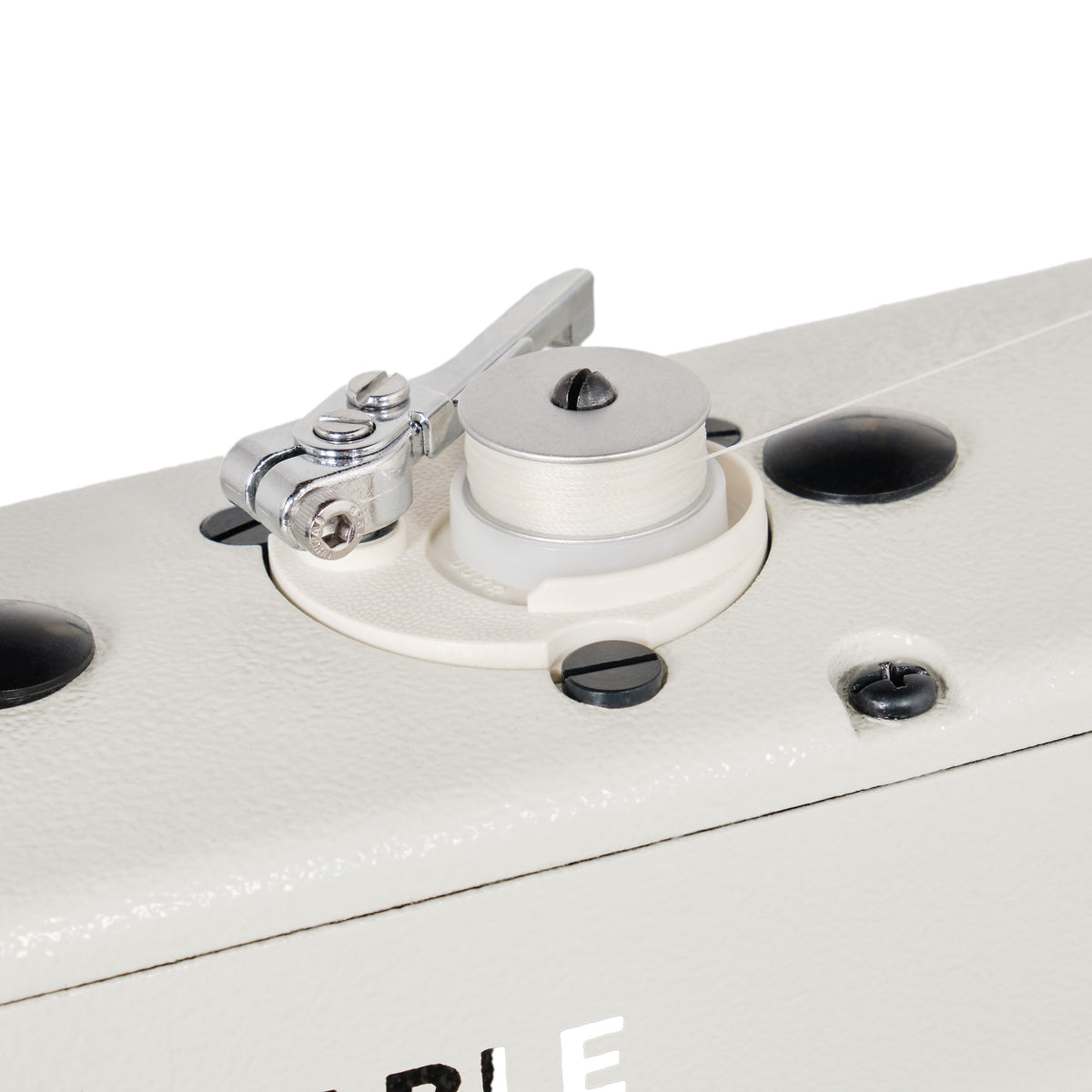

  • Built-in bobbin winder
  • Standard manufacturer accessory kit and documentation

Warranty & Support

Covered by Reliable’s one-year limited warranty. Sew Nation USA can help with product selection, setup questions, compatible needles, and service coordination. Financing options, when available, are shown at checkout and are subject to provider approval.

Best for

Production shops and makers who need controlled zig-zag stitching for appliqué, reinforcement, canvas, sail, apparel, or other compatible materials.

Drop shipped directly from Reliable. A $500 flat-rate LTL freight charge applies; delivery timing and access requirements are confirmed after order.

Key Features
  • Synchronized walking-foot feed for heavier and layered materials
  • Straight stitch plus adjustable zig-zag up to 9 mm wide
  • Direct-drive motor with digital speed control and programmable needle position
  • Large-capacity side-load bobbin
  • Semi-automatic lubrication and No-Stain Seal
  • Ships assembled, tested, and sewn off with table, stand, and UberLight Flex
Warranty

Covered by Reliable’s one-year limited warranty. See the warranty link for current terms, exclusions, and claim instructions. Sew Nation USA can assist with service coordination.

Additional Information
  • Standard table package: SKU 40956
  • Extra Large 24 × 60 in table package: SKU 41167
  • Complete package includes machine head, model-specific tabletop, industrial stand, direct drive, foot control, and light
  • Flat-rate LTL freight delivery: $500
  • Ships from and is fulfilled by Reliable for Sew Nation USA
  • Final setup includes placing the head, installing the thread stand, and preparing the lubrication system
Included Accessories
  • Reliable 2620ZW machine head
  • Integrated direct-drive motor and digital control panel
  • Selected tabletop: Standard or Extra Large 24 × 60 in
  • Heavy-duty industrial stand and foot control
  • UberLight Flex LED sewing light
  • Built-in bobbin winder
  • Standard manufacturer accessory kit and documentation
Specifications
  • Maximum speed: 2,000 RPM
  • Stitch length: 0–6 mm
  • Zig-zag width: 0–9 mm
  • Presser-foot lift: 8 mm
  • Needle system: 135 × 17
  • Work space: 10 in / 25.4 cm
  • Machine head: 20.5 × 7 × 14 in
  • Standard table: 47.5 × 21.75 × 30 in
  • Electrical: 110/120V, 60 Hz
