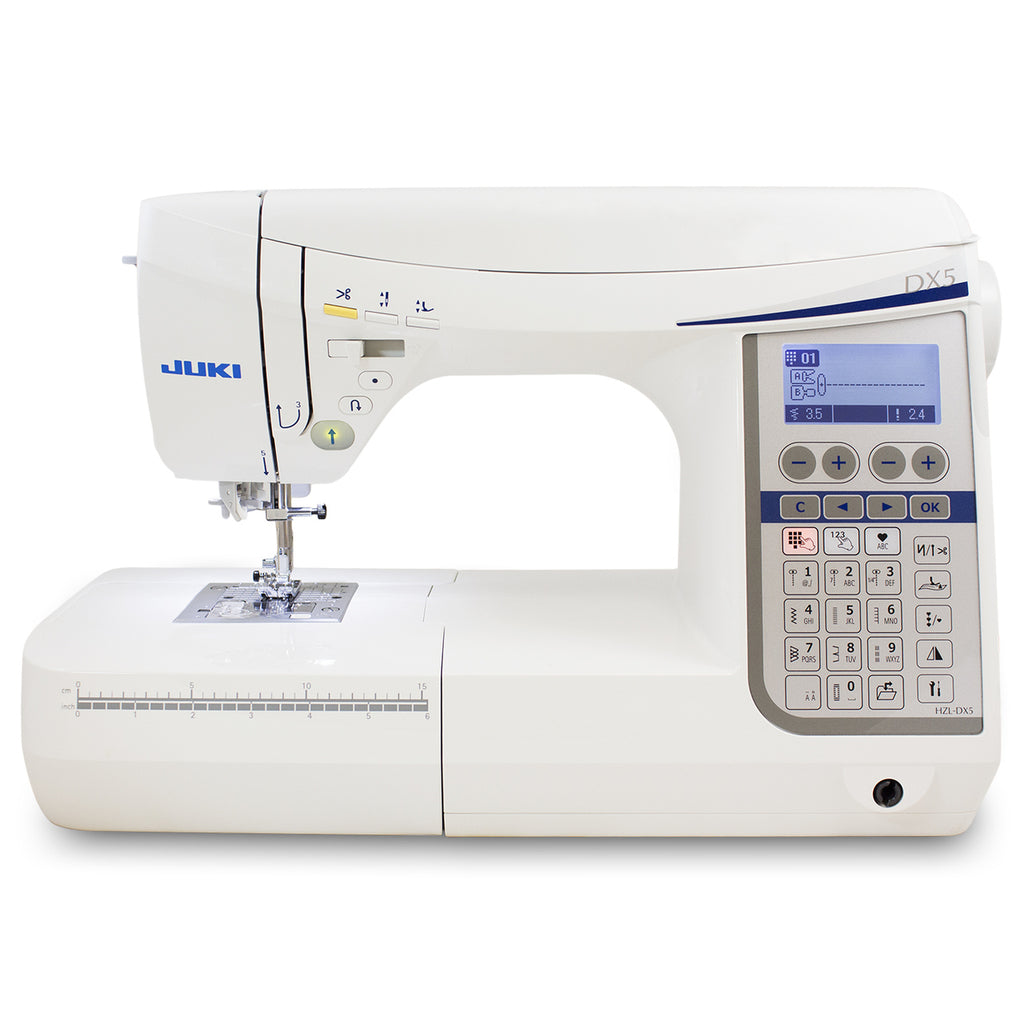

JUKI HZL-DX5 computerized sewing and quilting machine

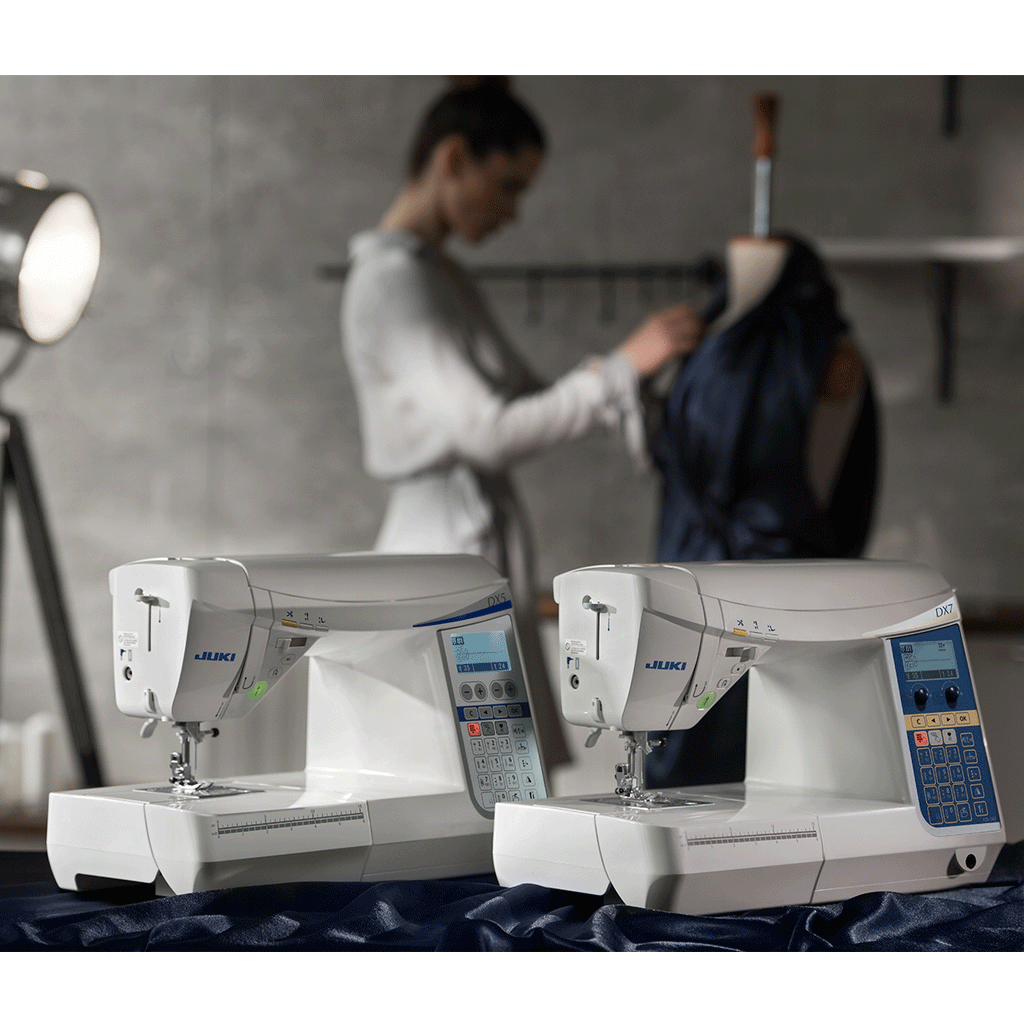

JUKI HZL-DX5 Computerized Sewing & Quilting Machine

SKU: HZL-DX5

$1,099.00

Shipping & Delivery — Ground

This item ships by standard ground delivery. Free standard ground shipping on orders of $59.99 or more. Shipping for orders below $59.99 is calculated at checkout.

Free shipping applies to eligible orders within the contiguous 48 U.S. states. Expedited shipping and location exclusions apply.

Returns & Eligibility
30-day returns on eligible items. Opened items may qualify for store credit. Exclusions and shipping deductions apply. Return policy.

Price Match Guarantee
Find a lower price? We'll match it.

Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.

Description

The JUKI HZL-DX5 combines computerized convenience with industrial-inspired fabric feeding and stitch quality. Its box-feed system, straight-stitch slide plate, pivot function, and automatic controls make it a versatile choice for quilting, garments, and projects using thin or heavy fabrics.

Key Features

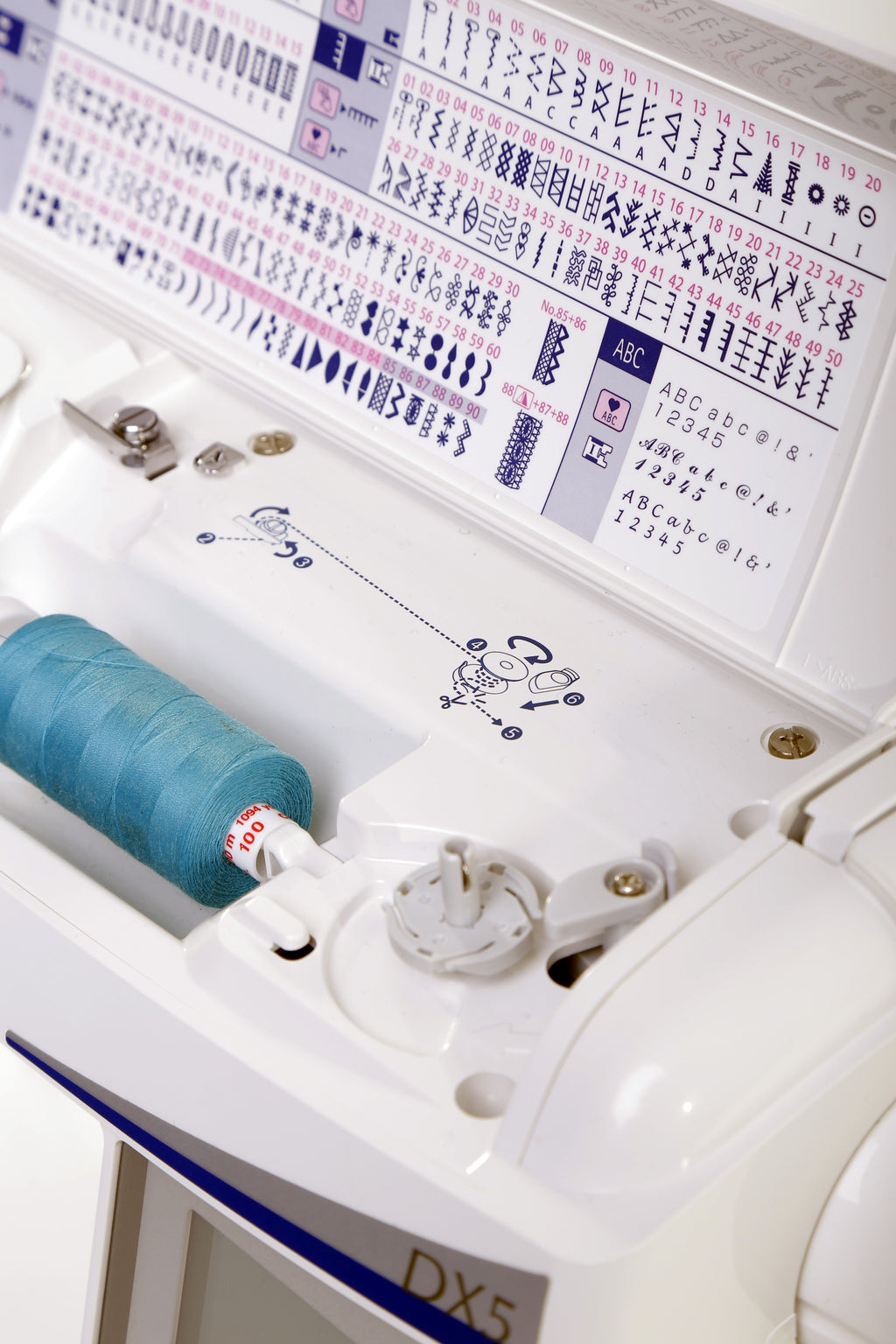

185 stitch patterns, 3 lettering fonts, and 16 buttonhole styles
Industrial-style box-feed system
Presser-foot pivot function
Straight-stitch slide plate for precise piecing
Automatic thread trimming from the button or foot controller
Free-motion sewing with drop feed
Automatic buttonhole sensor system
Needle up/down, reverse, lock stitch, and adjustable starting-speed controls

Specifications

Sewing speed: up to 1,050 stitches per minute
Maximum zigzag width: 7 mm
Maximum stitch length: 5 mm
Needle system: 130R / 705H
Bobbin: Class 15
Presser-foot lift: electronic
Adjustable presser-foot pressure: yes
Shank: low
Machine dimensions: 17.5 in W × 11.5 in H × 8.25 in D
Machine weight: 21.6 lb

Included Accessories

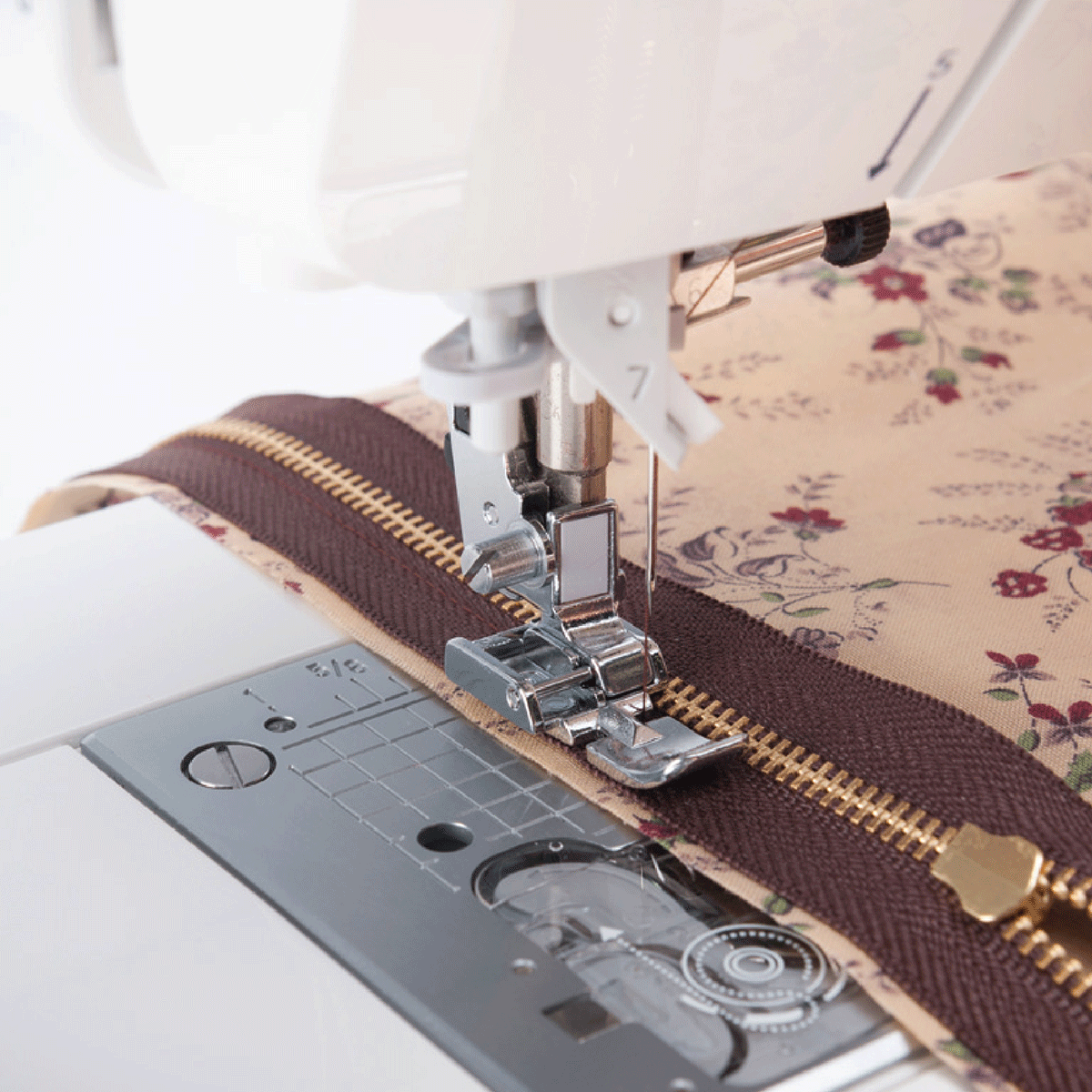

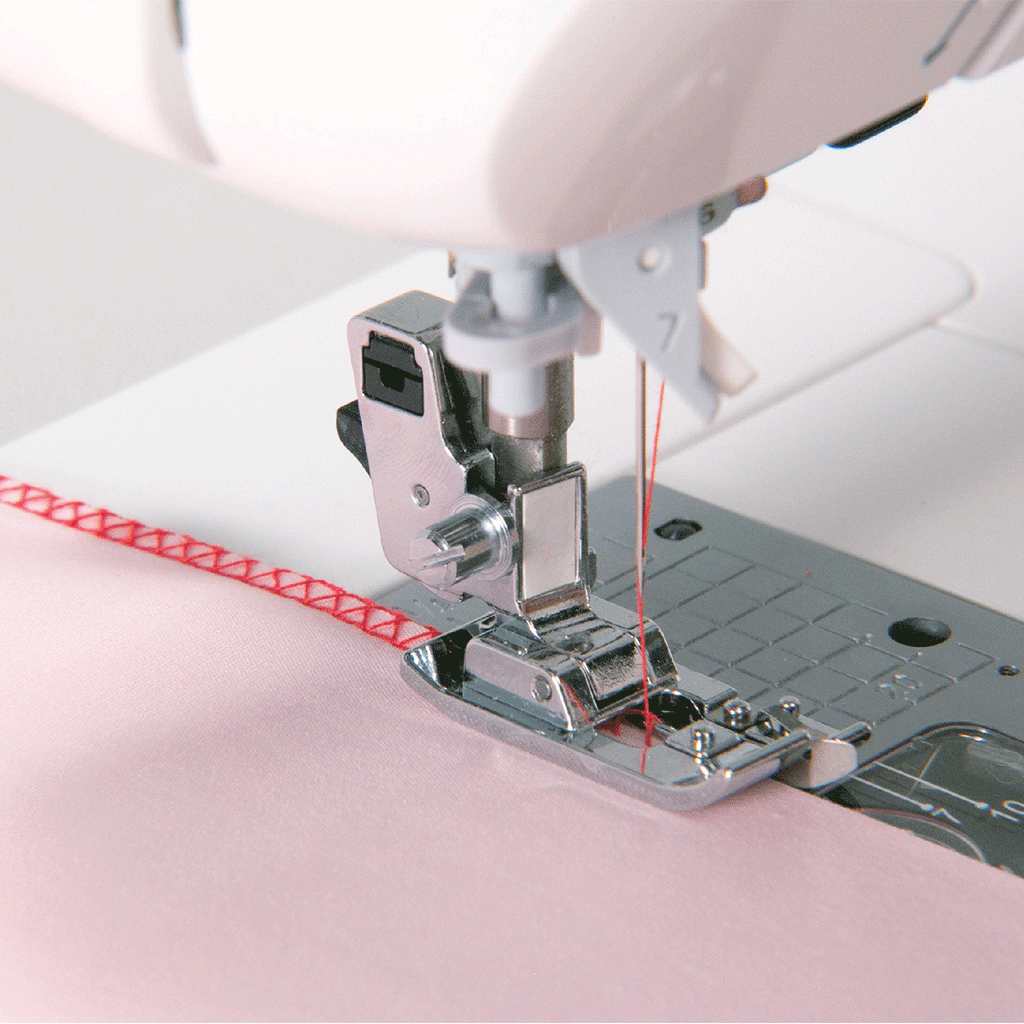

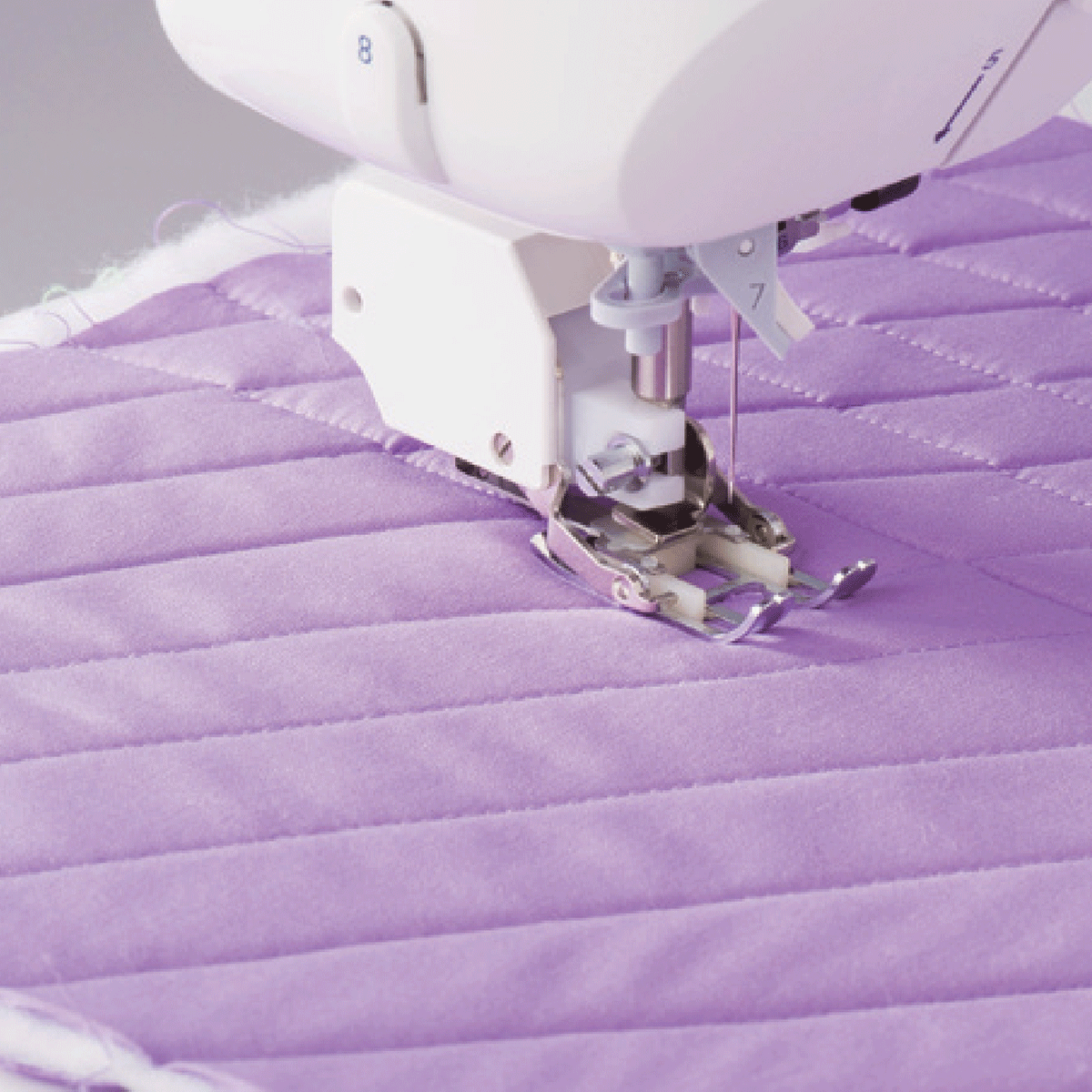

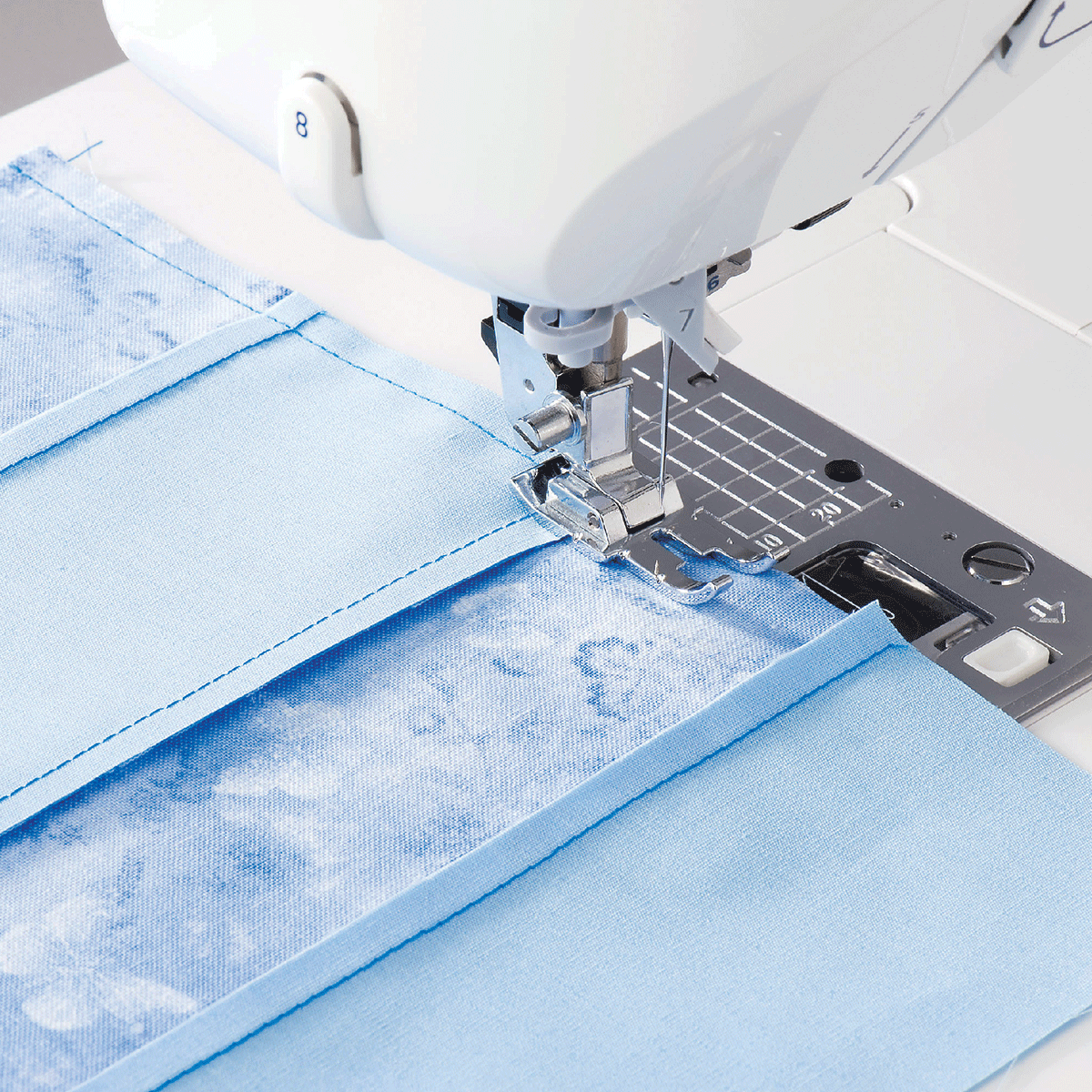

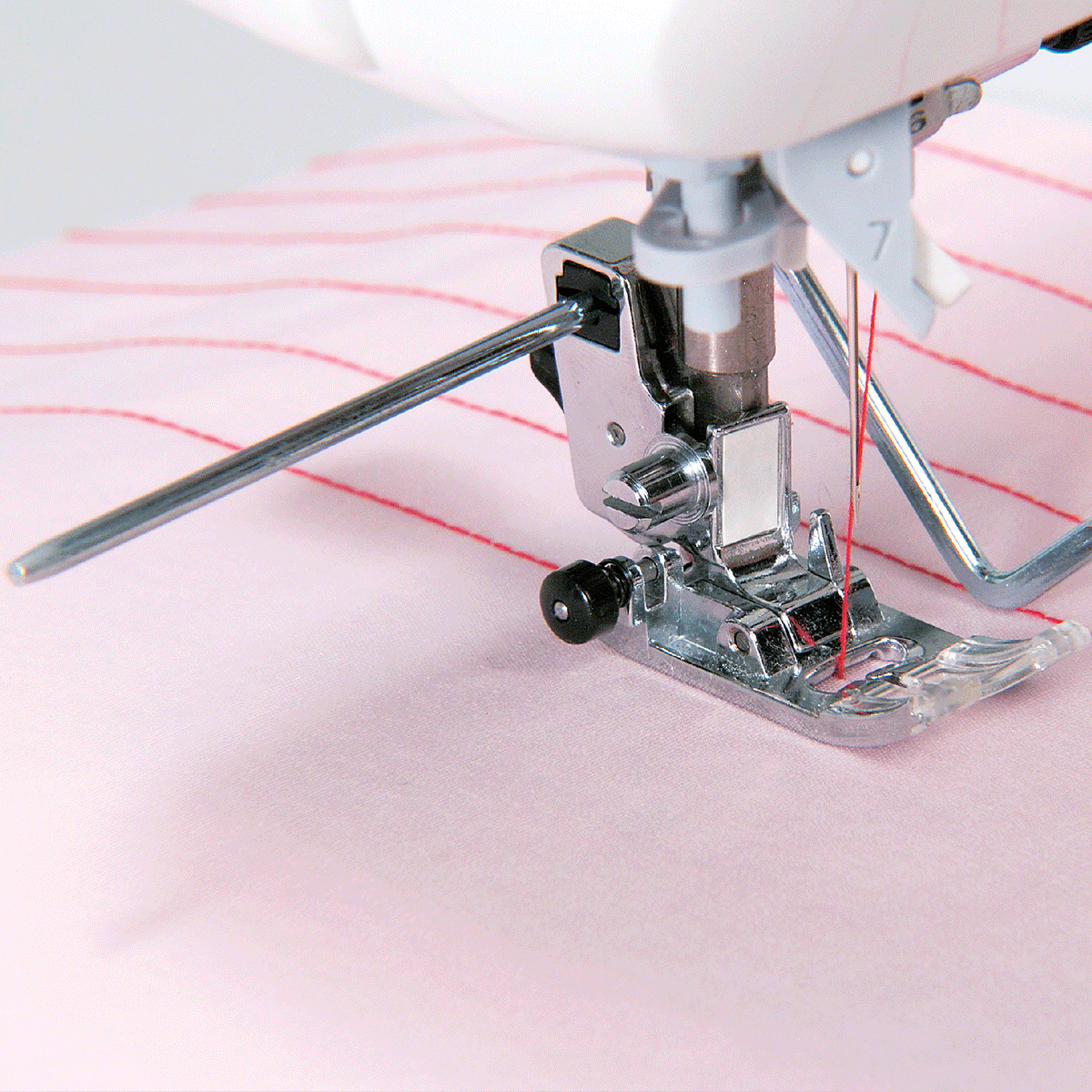

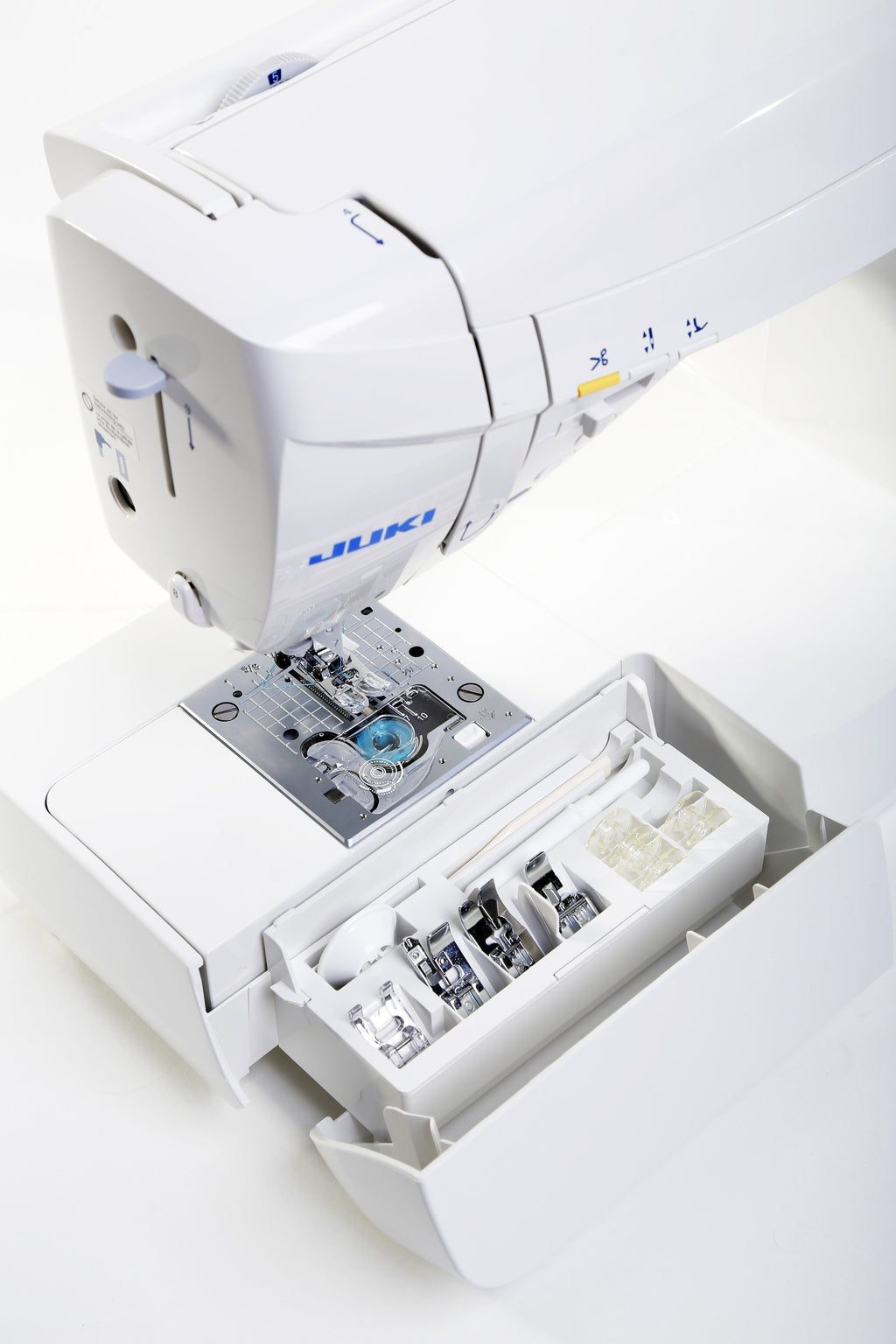

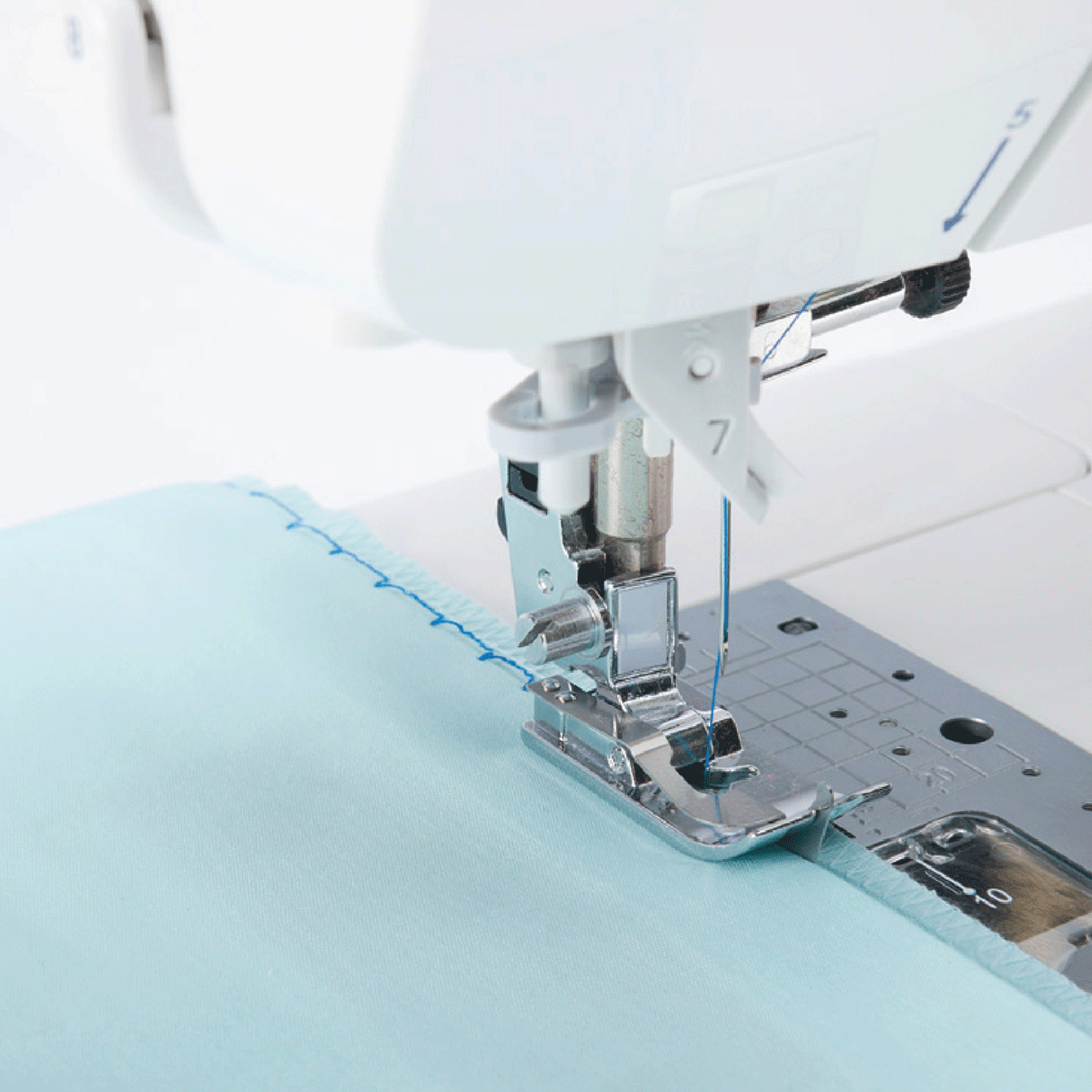

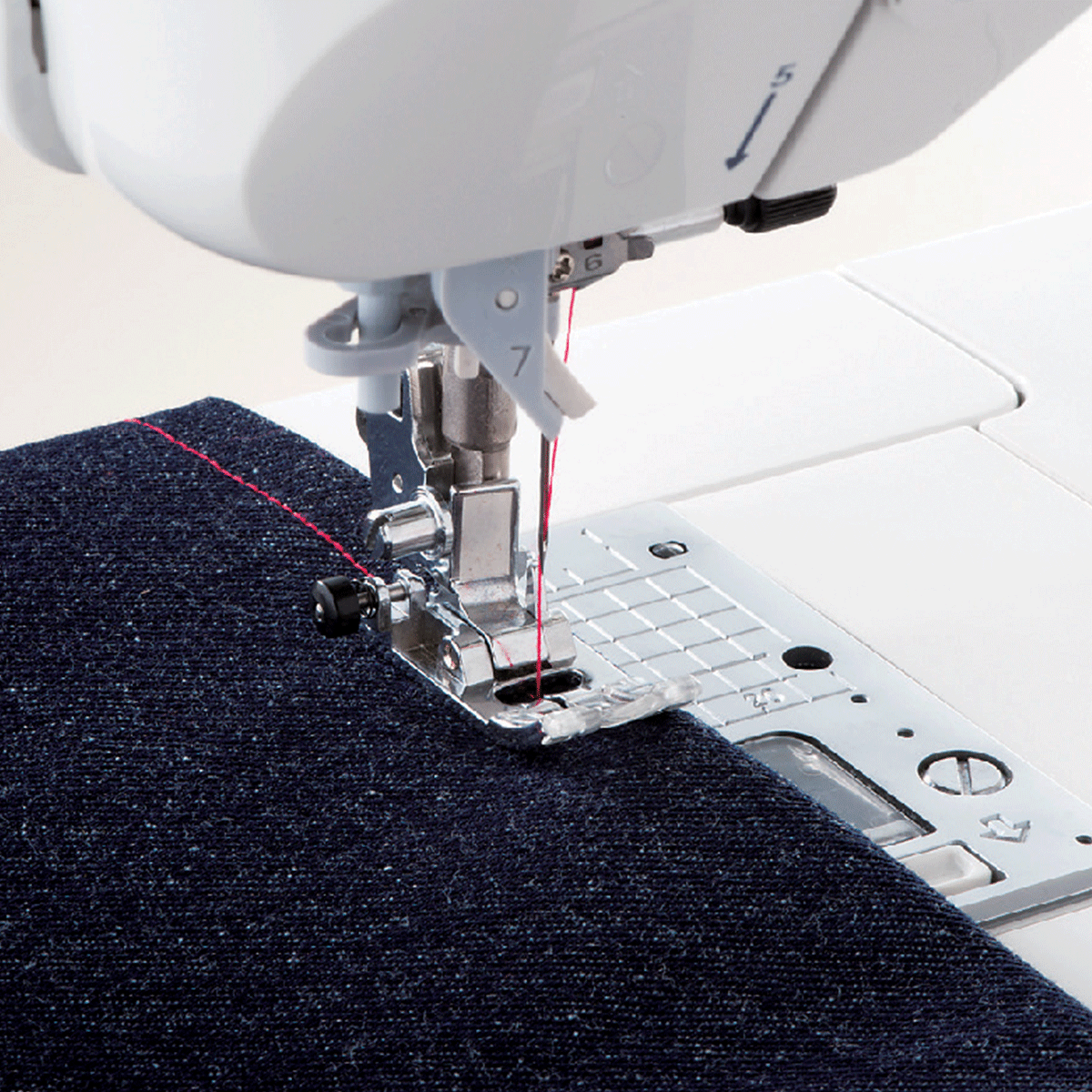

Includes the standard, zipper, overcasting, blind-stitch, buttonhole, walking, patchwork, and quilting feet; quilt guide; hard case; knee lifter; foot controller; bobbins; needles; twin needle; spool accessories; tools; cleaning brush; power cord; and instruction manual.

Fulfillment: This machine ships directly from Civit Products, an authorized JUKI distributor.

Key Features

Presser Foot Pivot Function: Sew corners or pivot with ease, when you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movements.
Free Motion: Enjoy both straight stitch and zig zag by just flipping the switch and dropping your feed dogs. Adjust the presser foot height for easy movement.
Straight Stitch Slide Plate: Simply slide the front lever to switch to a single needle hole. The single needle plate will not allow fabrics to be pushed into the needle hole. Ready to free motion stitch with precision and perfection!
Automatic Thread Trimming: With the push of a button or the click of a heel, you can now automatically trim thread.

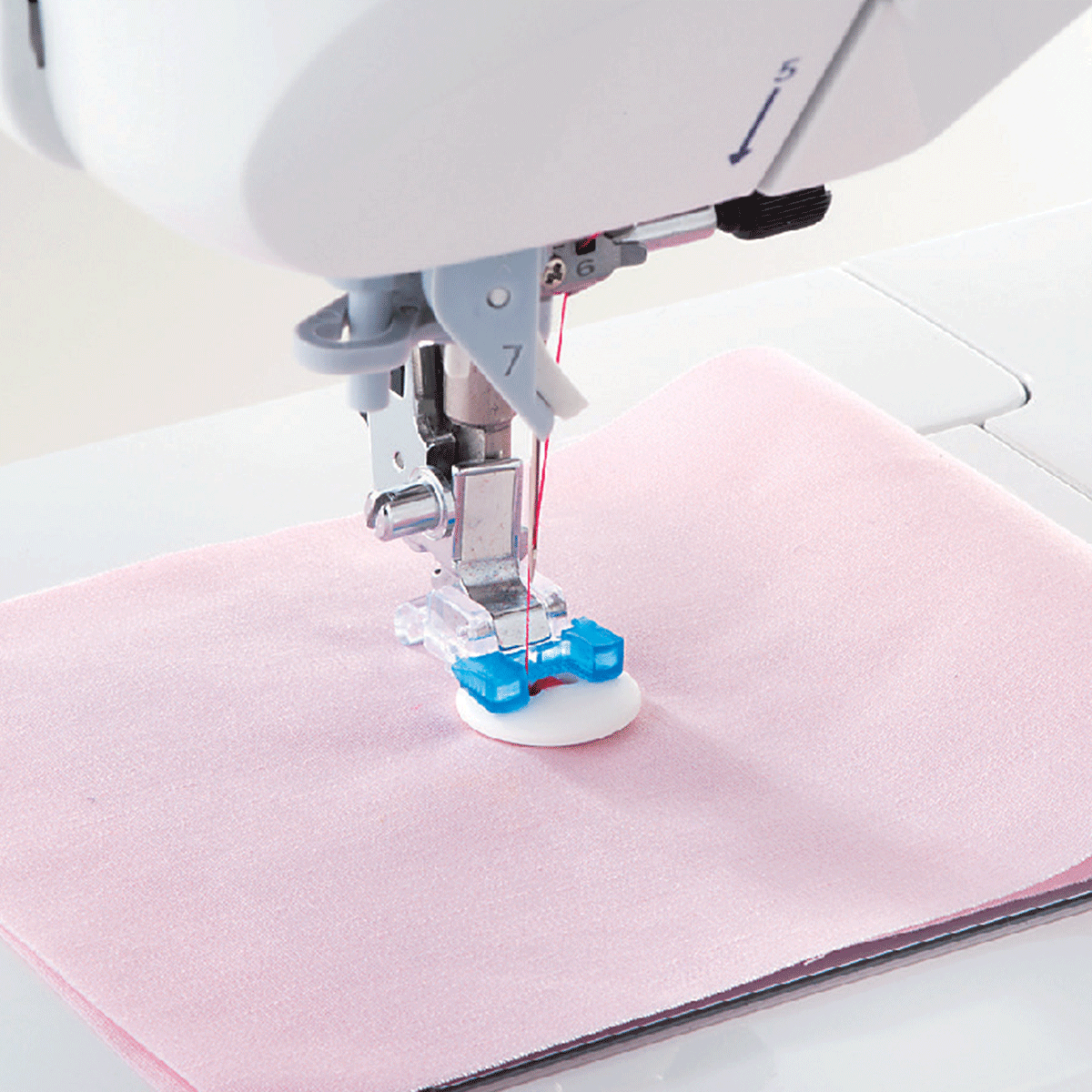

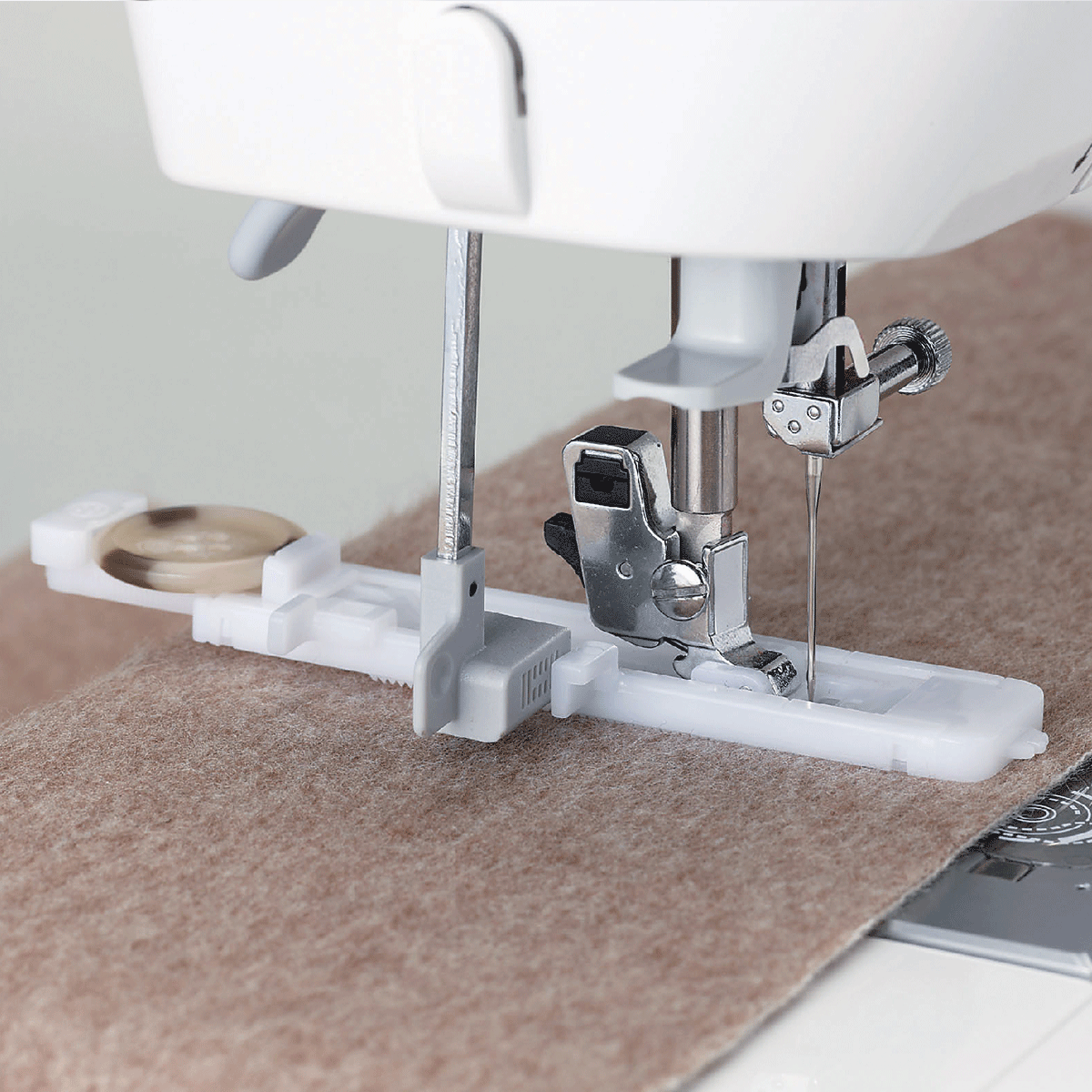

Buttonhole Sensor System: With Juki’s combination of industrial and modern technology, this system automatically measures and evenly sew on both the right and left sides to create beautiful buttonholes.
Adjustable Starting and Reverse Stitch Speed: Adjust the stitch speed by selecting fast, normal, or slow.
Lock Stitch: Choose between two kinds of “Reverse Stitch” and “Lock Stitch” at the start and end of sewing. If you press the “Lock Stitch” button in the middle of the sewing pattern, the machine stops sewing one cycle of the pattern.

Warranty

JUKI's limited warranty covers the original purchaser's machine against defects in materials or workmanship during normal household, non-commercial use, beginning on the purchase date.

Two years: motors, light assembly, wiring, switches, circuit boards and speed control.
Five years: other covered parts.

Consumables such as needles, loopers, feed dogs, knife blades, bulbs, lamps and belts are excluded. Damage from misuse, unauthorized modifications or commercial use is also excluded. Coverage is non-transferable; warranty service is available in the United States and Canada.

For service, retain your dated receipt, registration confirmation and original packaging. Contact Sew Nation USA for help arranging authorized service; JUKI requires shipment to the designated service location to be prepaid.
