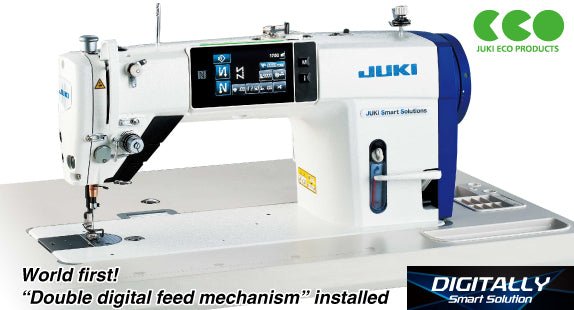

JUKI DDL-9000CF series digital lockstitch machine, manufacturer series photo representative of DDL-9000C-FMS head

JUKI DDL-9000C-FMS Fully Digital Industrial Lockstitch Machine

$2,910.50
Skip to product information
JUKI DDL-9000CF series digital lockstitch machine, manufacturer series photo representative of DDL-9000C-FMS head
  • JUKI DDL-9000CF series digital lockstitch machine, manufacturer series photo representative of DDL-9000C-FMS head

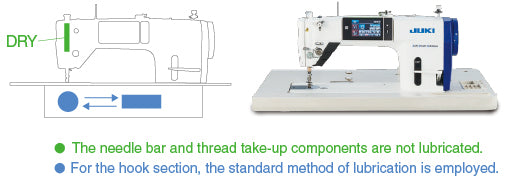

  • JUKI DDL-9000C-FMS semi-dry lubrication diagram showing dry needle bar area and lubricated hook
JUKI DDL-9000C-FMS Fully Digital Industrial Lockstitch Machine

JUKI DDL-9000C-FMS Fully Digital Industrial Lockstitch Machine

SKU: DDL-9000C-FMS
$2,910.50

Shipping & Delivery — Freight

This item ships by freight truck due to its size and weight. A flat $500 freight shipping charge applies.

Have questions about delivery to your location? Contact us by email or live chat before placing your order, and we’ll be happy to help.

Returns & Eligibility
This item is not eligible for return. Please see our return policy.

Price Match Guarantee
Find a lower price? We'll match it.
Buying a Product? Talk to Someone Who Knows Them.

I’m Blaine Austin. For 25 years, I’ve helped thousands of customers choose the right sewing products—not simply the most expensive ones.
Description

The JUKI DDL-9000C-FMS is a premium digital, single-needle industrial lockstitch machine for medium-weight sewing. Its electronically controlled feed and active needle-thread tension help operators tune stitch quality for different materials. JUKI identifies this FMS version as a semi-dry head with automatic thread trimming.

Best for: Production sewing of medium-weight garments and other straight-seam work where repeatable digital settings matter.

Performance: JUKI rates the FMS for up to 5,000 stitches per minute at stitch lengths through 4 mm, and up to 4,000 at longer settings. Maximum stitch length is 5 mm. It has a double-edge rotary thread trimmer and uses DB×1 or DP×5 needles in JUKI's listed size range.

Complete-machine package: Includes the machine head, table/stand, and motor. The exact supplied electrical setup, stand, control options, and additional accessories are being confirmed.

Key Features

Premium digital single-needle lockstitch for medium-weight materials
Electronically controlled feed and active needle-thread tension
Semi-dry machine head with automatic double-edge rotary thread trimming
Up to 5,000 stitches per minute at stitch lengths through 4 mm
Maximum stitch length: 5 mm

Additional Information

Freight delivery: This complete industrial machine ships by freight. Sew Nation USA lists a $500 freight charge for oversized industrial machines; the applicable charge is shown at checkout. The carrier may contact you to arrange delivery. Processing and delivery times vary by destination; tracking is provided when available. Contact Sew Nation USA before ordering if you need to confirm delivery access, electrical requirements, or the supplied stand and controls. Financing may be available through Affirm at checkout, subject to eligibility.

Included Accessories

Complete machine: JUKI DDL-9000C-FMS machine head, table/stand, and motor.

Specifications

Model: DDL-9000C-FMS
Machine type: 1-needle digital lockstitch
Application: medium-weight materials
Lubrication: semi-dry head
Maximum sewing speed: 5,000 stitches/min at 0–4.00 mm stitch; 4,000 stitches/min at 4.05–5.00 mm stitch
Maximum stitch length: 5 mm
Thread trimmer: automatic, double-edge rotary
Needle system: DB×1 / DP×5; #11 standard, #9–18 range
Presser-foot lift: 5.5 mm by hand; 15 mm by knee
Machine-bed size: 517 × 178 mm
Needle-to-arm distance: 303 mm
